Mounting Instructions
ProfiDAT
compact
®
Data Transmission System
Program 0515

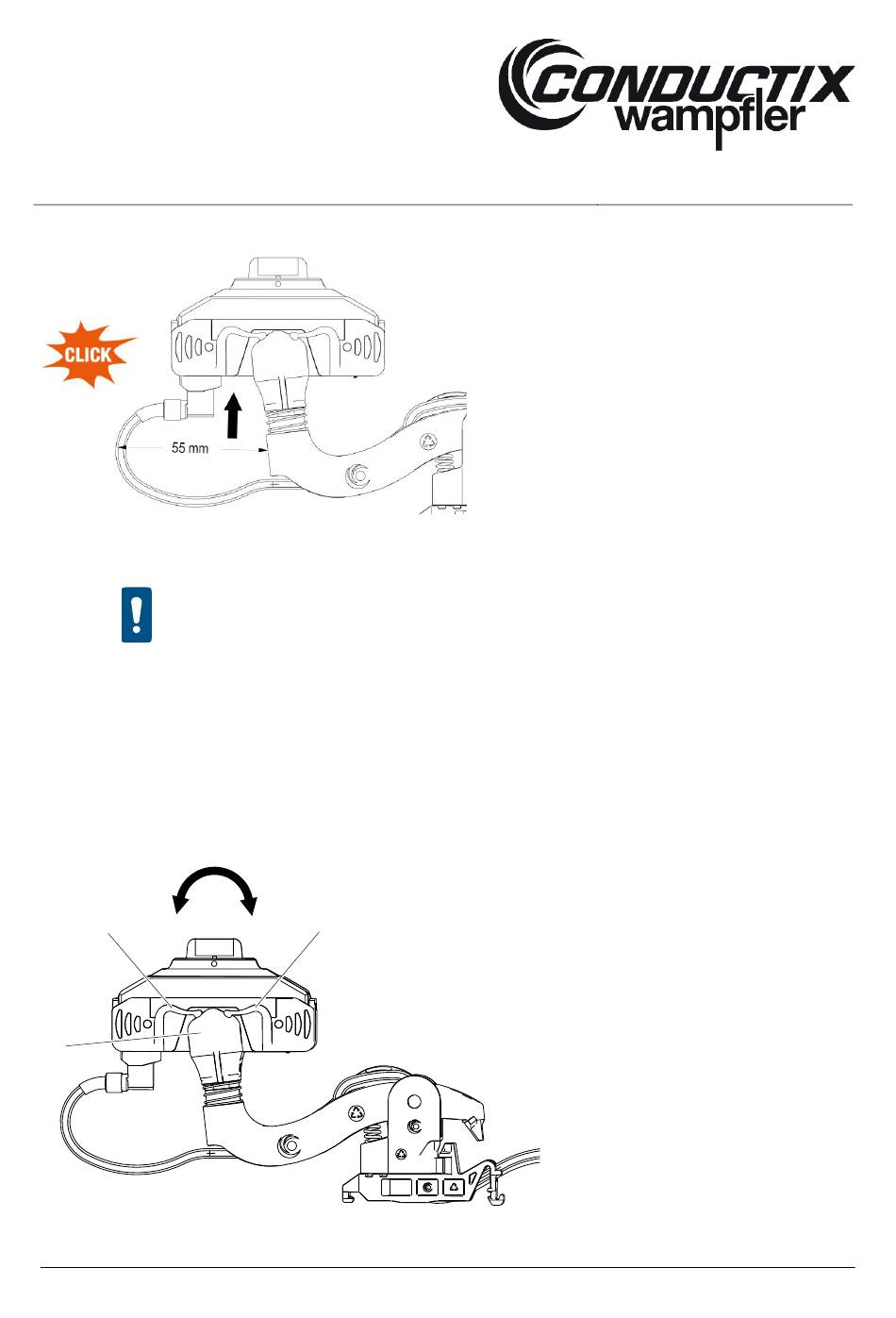

→ Attach the angled blade receptacle (see Fig. 187).
Fig. 187: Attach angled blade receptacle
ATTENTION!
→ Move the collector head back and forth (see Fig. 188).
→ Check the 4 plastic springs (1):
→ Are all 4 plastic springs (1) available?
→ Is the geometry of the plastic springs (1) completely filled with plastic?
→ Are all 4 plastic springs (1) in contact with the joint (2) and do the plastic springs (1) not have an
1
2
Fig. 188: Move collector head back and forth
MAL0515-0001i-EN
www.conductix.com
After mounting the angled blade receptacle, the collector head must not be pushed
upward or pulled downward by the PE cable.
oblique position?
1
Translated from MAL0515-0001k-DE
Page 141 of 169
