6.4.2 Combined and project-specific hanger clamps
The mounting of combined hanger clamps can be found in the respective documentation of the conductor rail system or, on
request, in the project-specific documentation.
The following distances between the hanger clamps must be observed:

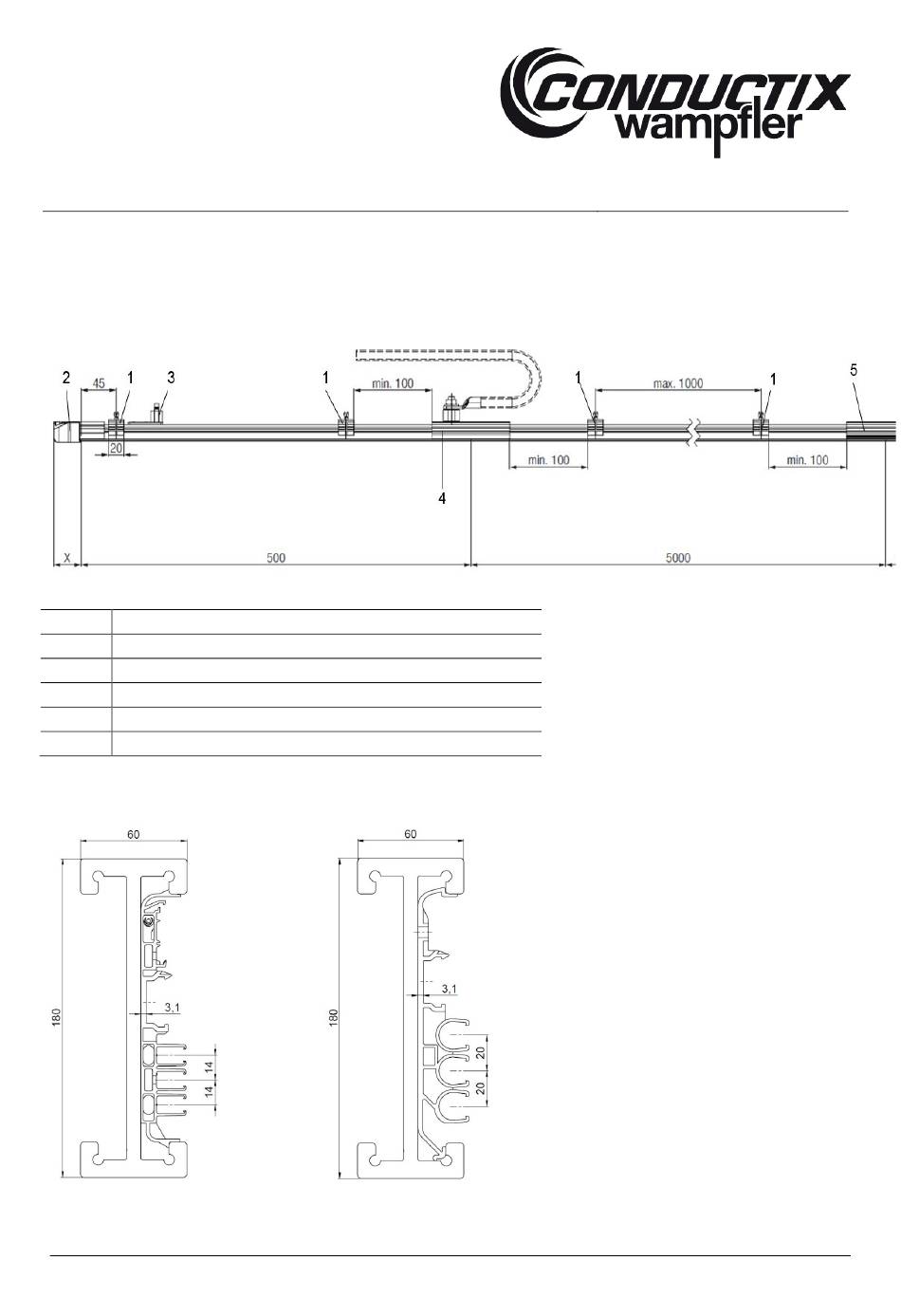

Fig. 39: Minimum and maximum distances between hanger clamps
Item Name
1 Hanger clamp (universal or combined/project-specific)
2 Transfer guide
3 Stationary antenna
4 PE connector
5 Connector
The distance between the hanger clamps must not exceed 1 m on straight segments or 0.5 m on curves/bends.
Fig. 40: Hanger clamp 0815 in EMS profile
MAL0515-0001i-EN
www.conductix.com
Fig. 41: Hanger clamp 0811 in EMS profile
