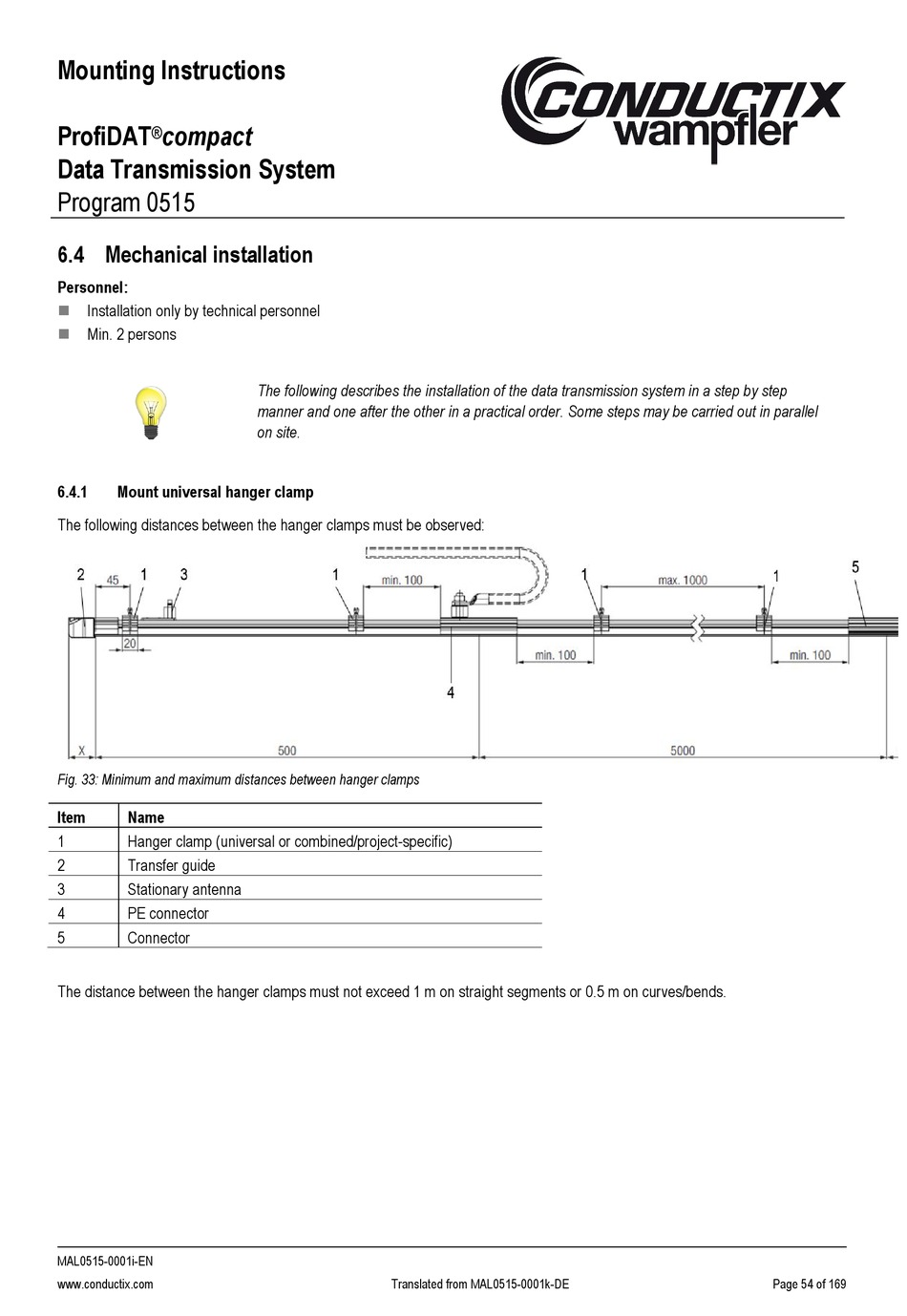

Conductix-Wampfler ProfiDAT compact Mounting Instructions page 54

Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
6.4 Mechanical installation
Personnel:
Installation only by technical personnel

Min. 2 persons

6.4.1 Mount universal hanger clamp
The following distances between the hanger clamps must be observed:
Fig. 33: Minimum and maximum distances between hanger clamps
Item Name
1 Hanger clamp (universal or combined/project-specific)
2 Transfer guide
3 Stationary antenna
4 PE connector
5 Connector
The distance between the hanger clamps must not exceed 1 m on straight segments or 0.5 m on curves/bends.
MAL0515-0001i-EN
www.conductix.com
The following describes the installation of the data transmission system in a step by step
manner and one after the other in a practical order. Some steps may be carried out in parallel
on site.
Translated from MAL0515-0001k-DE Page 54 of 169
