Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
With end feed

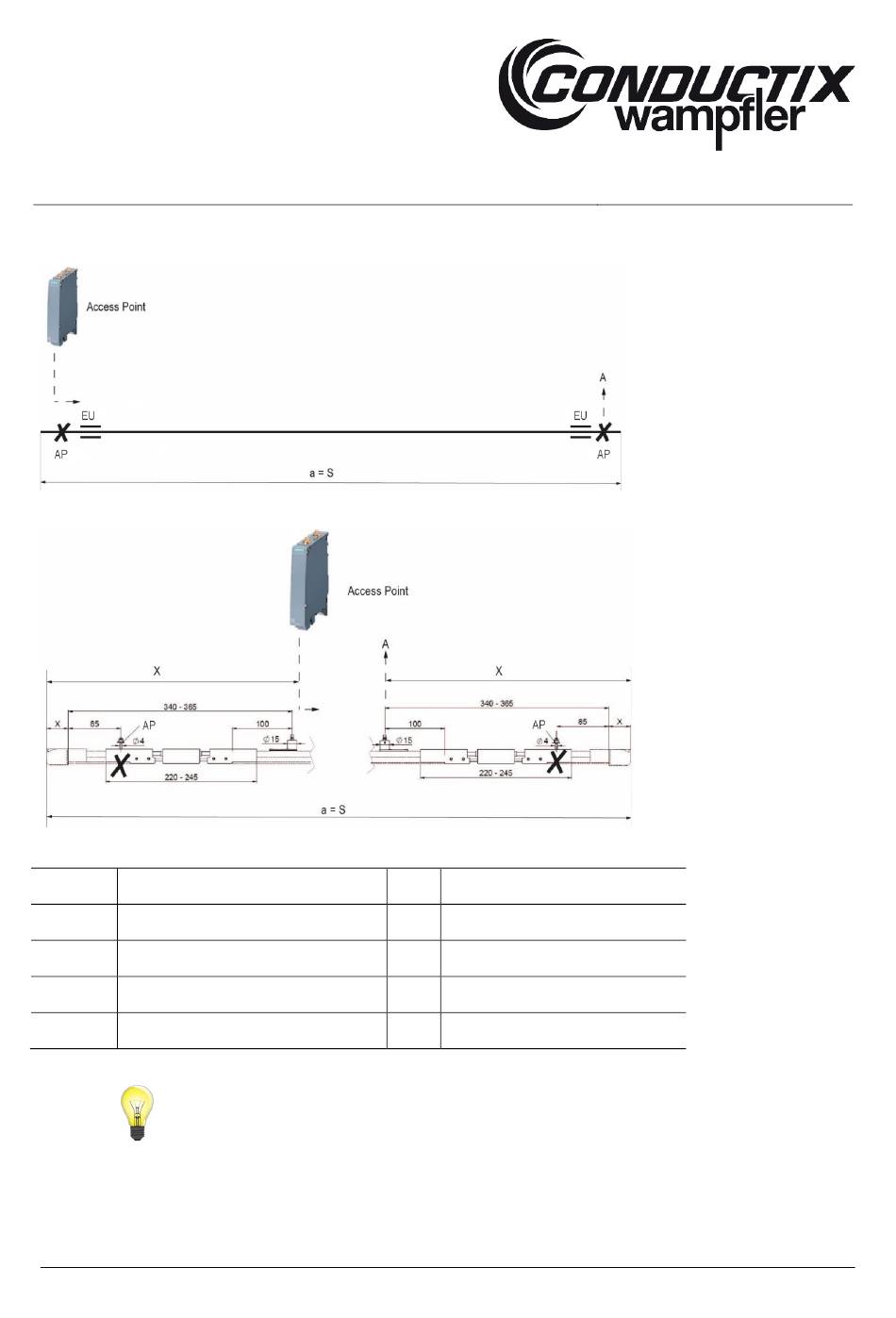

Fig. 52: Expansion unit layout at end
Fig. 53: Expansion unit layout at end
Item Name
A Outfeed
EU Expansion unit
AP Anchor point
X Area without data (1 expansion unit)
MAL0515-0001i-EN
www.conductix.com
Item
S
a
1
a
2
Transfers and curves are anchor points, this area must therefore be taken into account when
designing the system!
Translated from MAL0515-0001k-DE
Name
Segment length
Intermediate length a
1
Intermediate length a
2
Page 65 of 169
