6.4.4.4 Mount the expansion unit at the end of the segment (with and without a positioning strip)
Because a transfer guide (1) is mounted as standard on the
end feed, it must first be removed before the expansion unit
can be mounted:
→ Loosen the 2 screws M2.5 x 6 (2) and disassemble the
transfer guide (1) (see Fig. 61).
→ Slide the expansion unit (4) onto the rail side with the
line feed segment and tighten the 2 self-tapping screws
M3 x 8 (3) with a tightening torque of 2.0 Nm and
hexagon socket screw type (TorxPlus) TP10 (see Fig.
62 These screws (3) must be tightened (mechanically)
using a torque shut-off screwdriver.
In certain applications, an anchor point must be set near an
expansion unit (4), e.g. before transfers. However, this is not
required in all applications. This should be determined by the
customer together with Conductix-Wampfler during the
design phase.
→ If the anchor point screw M4 x 20 (screw M4 x 20 in
Fig. 63 not visible) is to be seated in the expansion unit
(4) at position A, then it must be attached before the rail
adapter (5) is mounted (see Fig. 63).
→ To fasten the expansion unit (4), a through hole (D = 6
mm) must be drilled through the support structure.
→ The position of the through hole can be derived from
Fig. 65 and Fig. 66.
MAL0515-0001i-EN
www.conductix.com

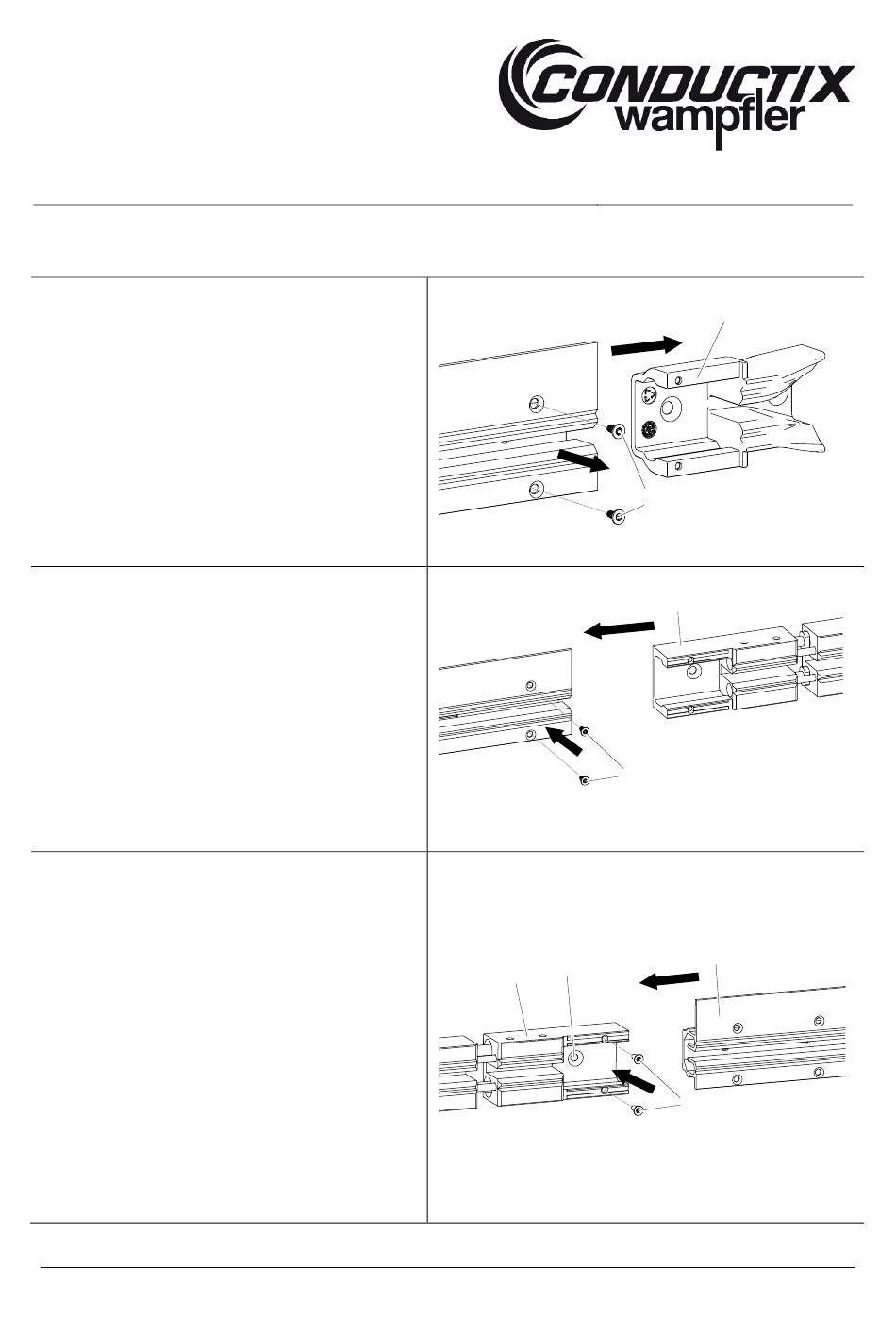

Fig. 61: Disassemble transfer guide
