Drilling pattern for end feed with an expansion unit and plastic overrun cap

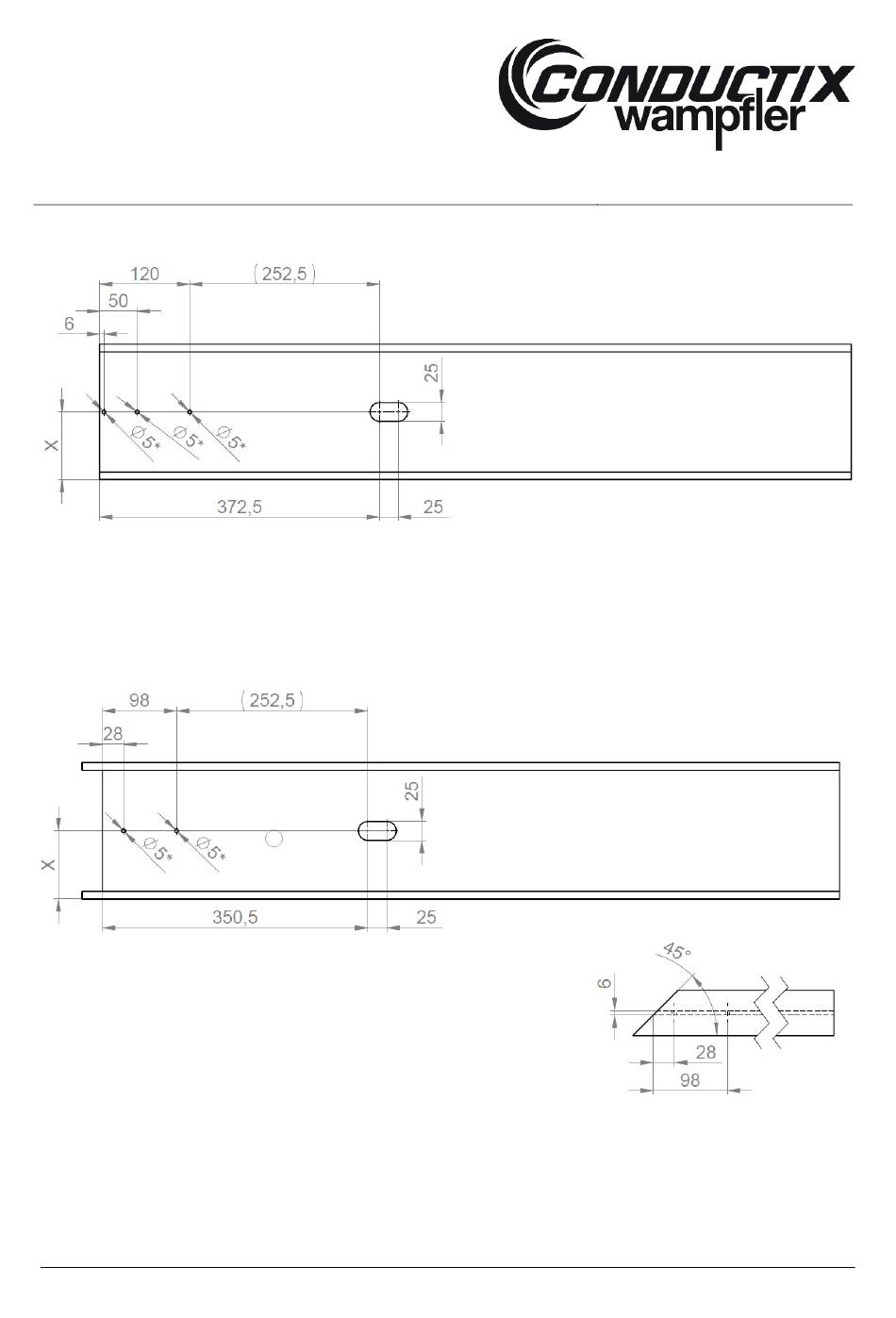

Fig. 121: Drill hole positions for end feed with expansion unit and plastic overrun cap
ATTENTION: Not suitable for substructures (support structure) with angled cuts!
* Options for anchor point screw
Drilling pattern for end feed with an expansion unit and aluminium overrun cap (45° cut on short side)
Fig. 122: Drill hole positions for end feed with single expansion unit with aluminium overrun cap (45° cut on short side of substructure (support
structure))
* Options for anchor point screw
