9.2 Diagnosis via the transceiver LED state
The first approach to diagnosing the transceivers without a computer is to evaluate the LED state on the transceiver itself.
Essentially, the LEDs of all Siemens Scalance devices behave the same. As an example, an excerpt from the manual of the device
family W774/W734 (source: Scalance W774-1 / W734-1 Operating Instructions) is listed.

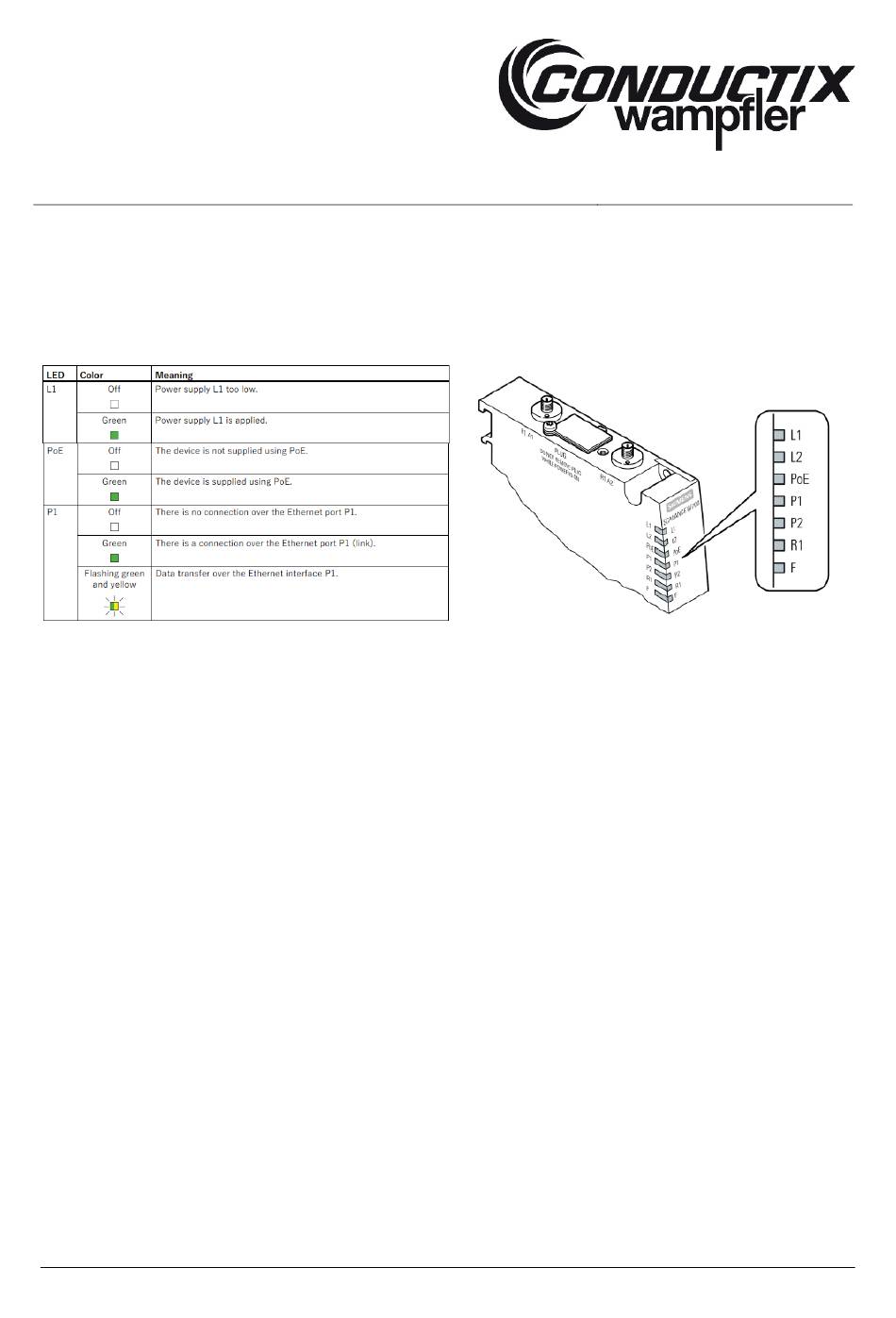

Fig. 191: Transceiver LED state (Source: Scalance W774-1 / W734-1 Operating Instructions)
