6.5.4 Connect the transceiver (access point) to the stationary antenna
The connecting cable for the line feed to the ProfiDAT compact rail is mounted between the transceiver (access point) and the
®
connection to the line feed (stationary antenna).
1

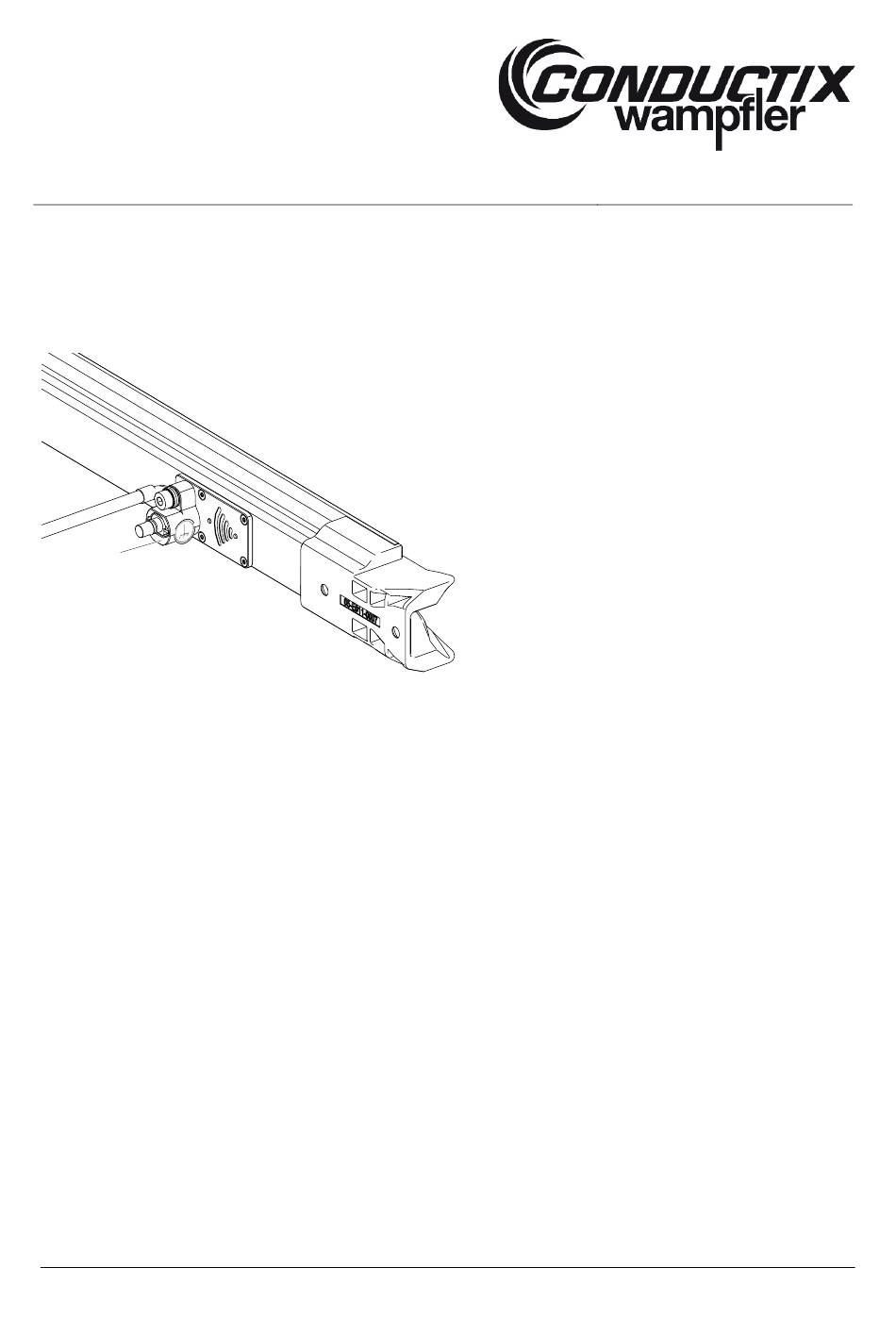

Fig. 139: Line feed to stationary antenna
The line feed can occur either as a segment line feed or as an end feed.
