4 Product Description and Functional Principle
4.1 Overview

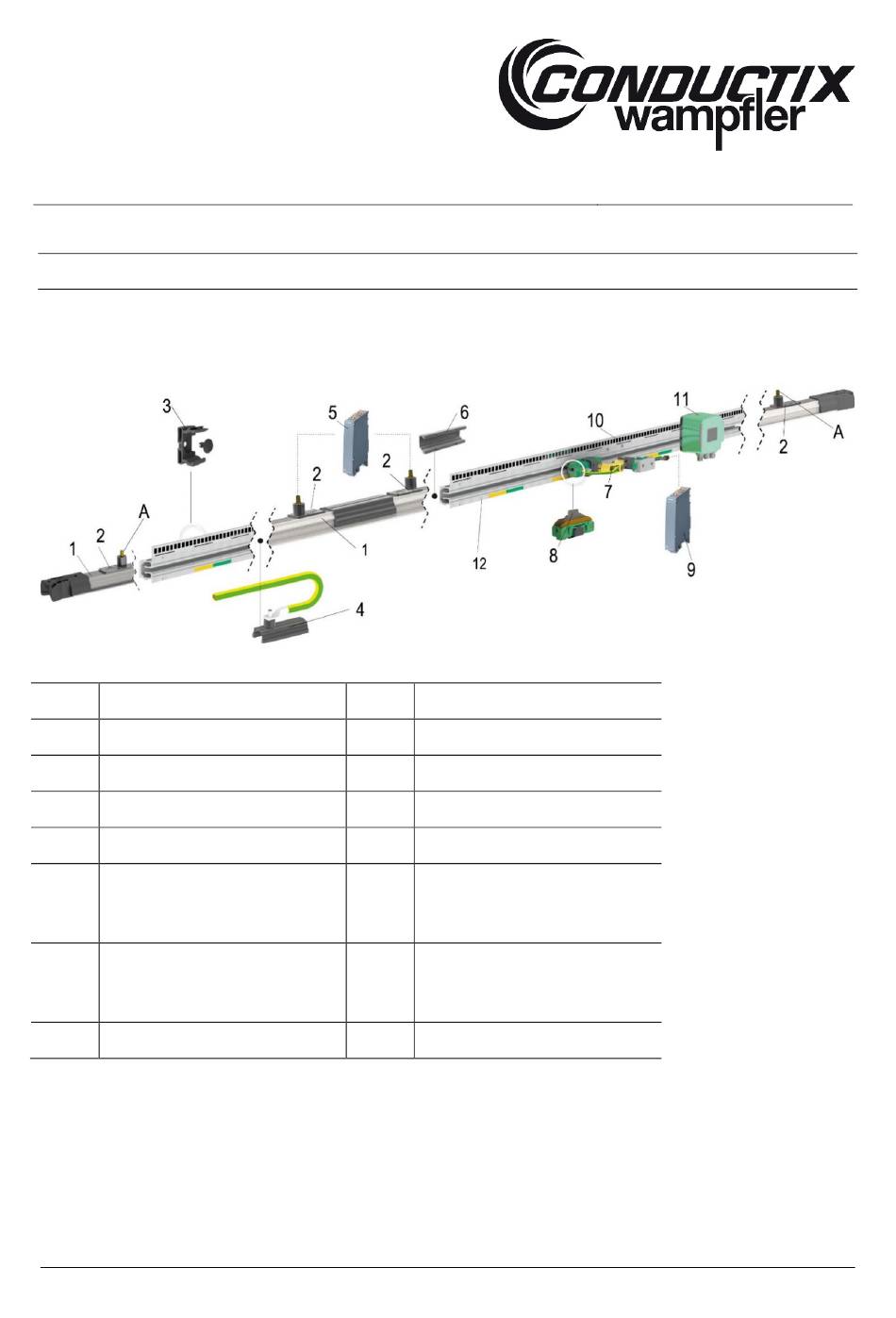

Fig. 15: ProfiDAT compact components in detail
®
Item Name
1 Line feed
3 Universal hanger clamp
5 Transceiver (access point)
7 Collector
9 Transceiver (client)
Read head for the positioning
11 system (see Section 6.4.12)
Not included in scope of delivery
A Terminating resistor
MAL0515-0001i-EN
www.conductix.com
Item Name
2 Stationary antenna
4 PE connector/ PE connection
6 Connector
8 Mobile antenna
Code band for the positioning
10 system (see Section 6.4.12)
Not included in scope of delivery
12 Data rail
