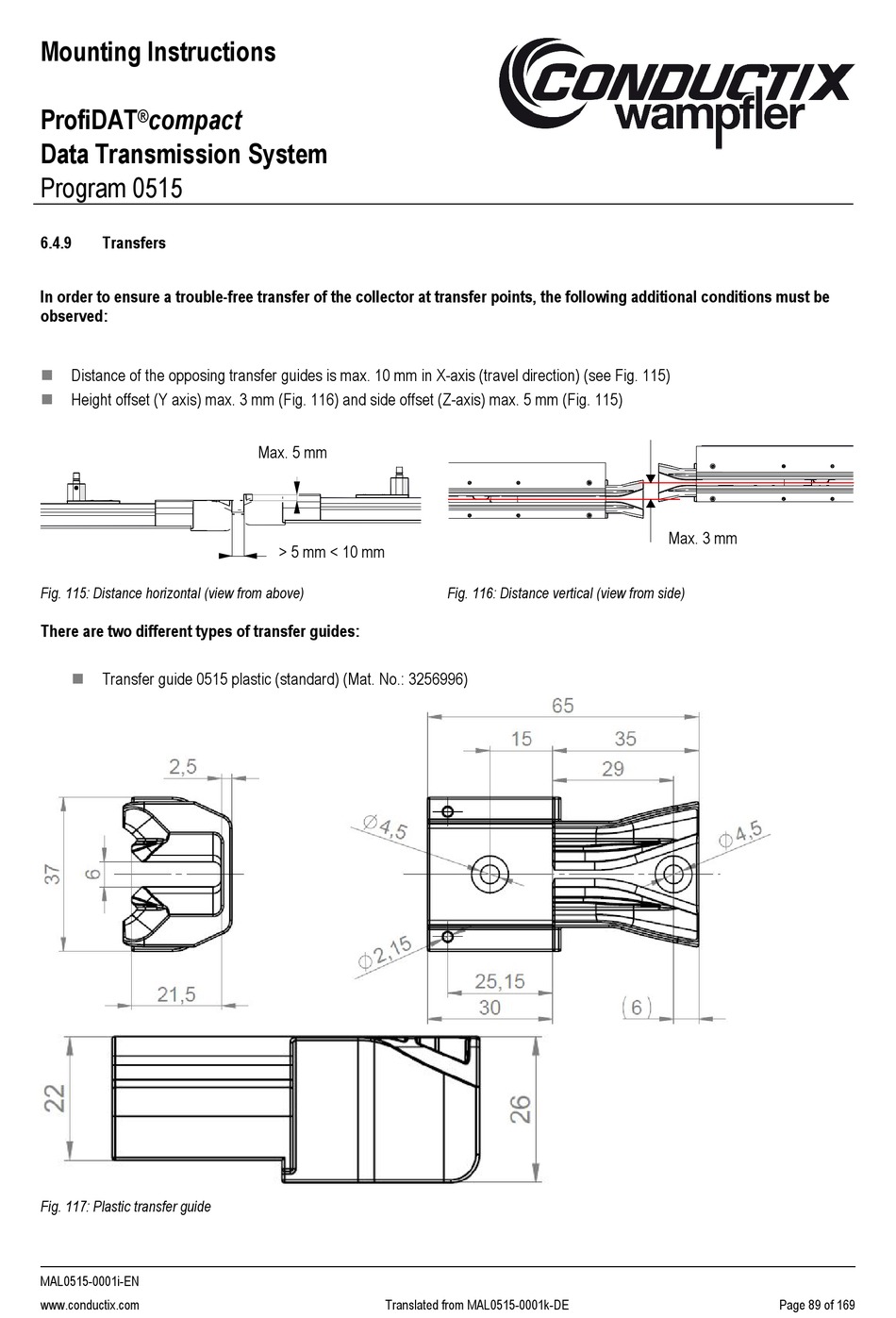

6.4.9 Transfers
In order to ensure a trouble-free transfer of the collector at transfer points, the following additional conditions must be
observed:
Distance of the opposing transfer guides is max. 10 mm in X-axis (travel direction) (see Fig. 115)

Height offset (Y axis) max. 3 mm (Fig. 116) and side offset (Z-axis) max. 5 mm (Fig. 115)

Fig. 115: Distance horizontal (view from above)
There are two different types of transfer guides:
Transfer guide 0515 plastic (standard) (Mat. No.: 3256996)

Fig. 117: Plastic transfer guide
MAL0515-0001i-EN
www.conductix.com
Max. 5 mm
max. 5 mm
> 5 mm < 10 mm
> 5 mm < 10 mm
Translated from MAL0515-0001k-DE
Fig. 116: Distance vertical (view from side)
Max. 3 mm
