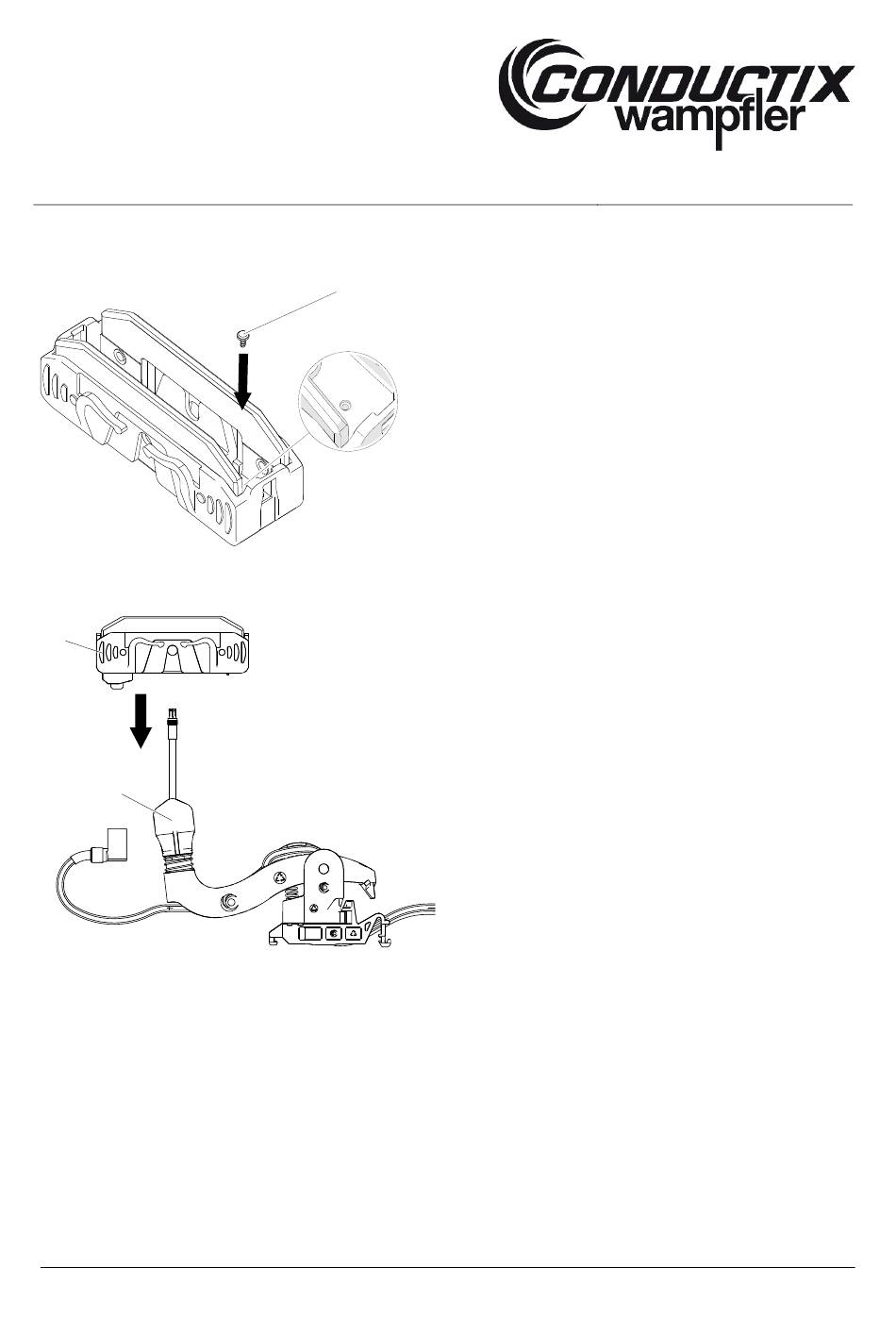

→ Tighten STS-plus 1.4x4 – T5 screw (5) to secure the sliding contact (1). Tightening torque: 0.2 Nm (see Fig. 162)
5
Fig. 162: Tighten STS-plus 1.4x4 – T5 screw
→ Mount the balance incl. sliding contact (1) onto the balance on the collector arm (2) (see Fig. 163).
1
2
Fig. 163: Balance incl. sliding contact (1) is mounted
