Conductix-Wampfler ProfiDAT compact Mounting Instructions page 95

Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515

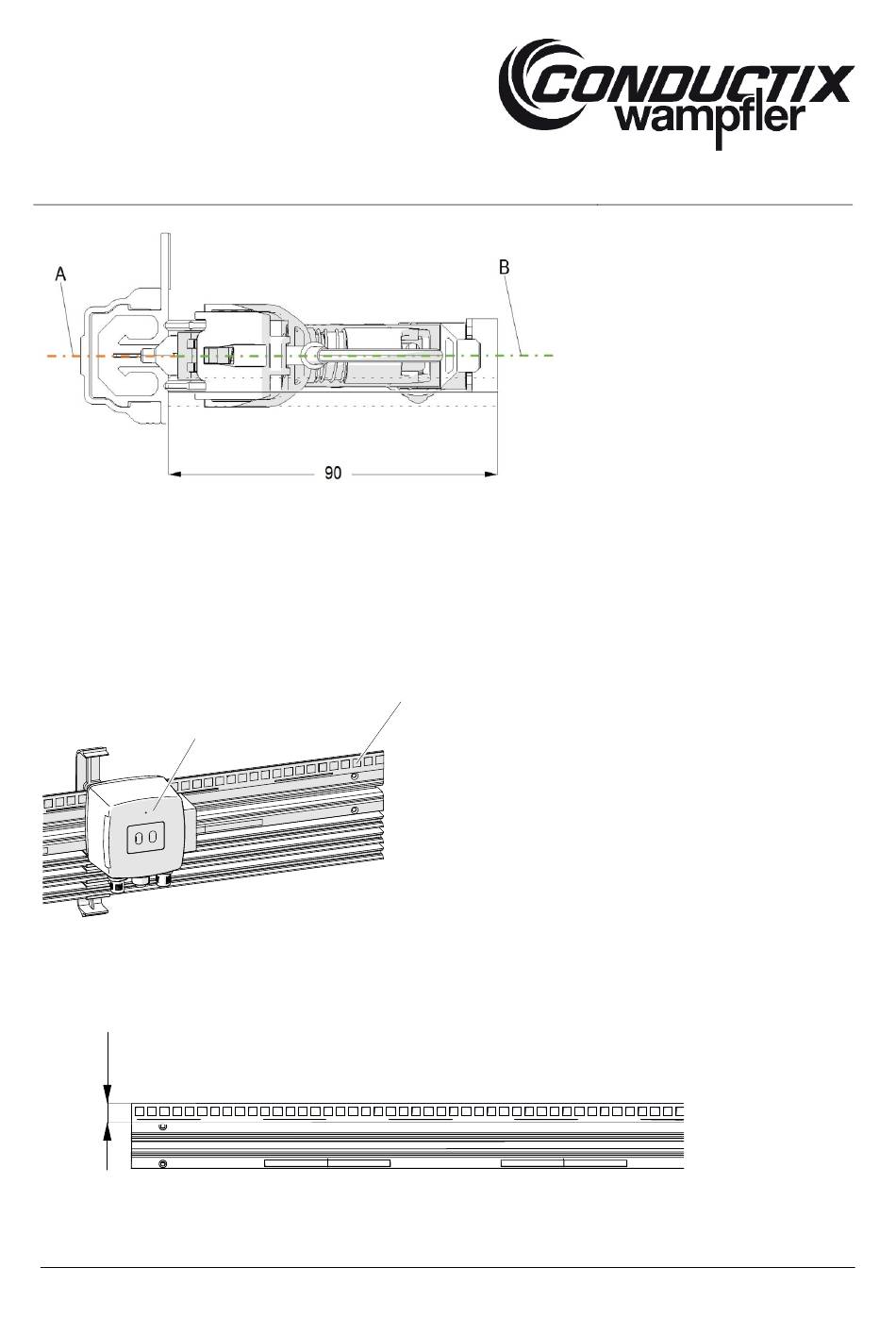

Fig. 127: Collector mounting dimension from towing unit to bottom edge of rail
6.4.12 Mount the positioning system
The positioning system consists of the code band (2), which is attached to the data rail with the positioning strip, and the read head
(1), which is located on the vehicle.
The read head is mounted according to the manufacturer's operating instructions.
2
1
Fig. 128: Positioning system in detail
The code band is glued directly onto the ProfiDAT compact rail (only possible when using the rail with an additional positioning
®
strip). The height of the code band may not exceed 20 mm. Please observe the manufacturer's operating instructions.
max. 20 mm
Fig. 129: Maximum height of code band
