Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
Optional lateral PE connection
6
5
4
3
9
1
7

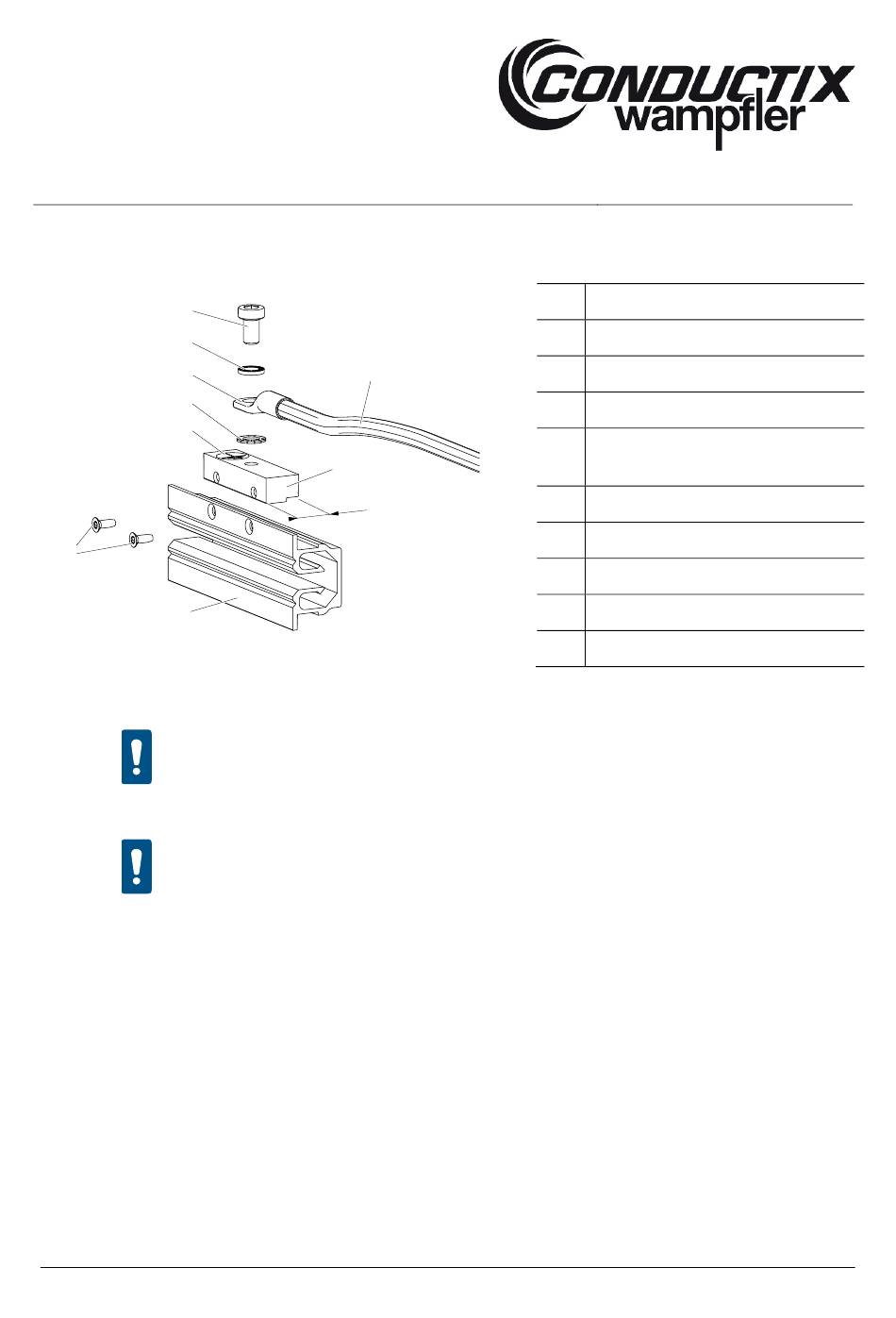

Fig. 131: PE connection
ATTENTION!
ATTENTION!
6.4.14 Use of the data rail without PE function
If the data rail is used without the PE function, it must nevertheless be connected to the grounded support structure (substructure).
Carry out the following steps if the PE function is not used:
→ Connect both segment ends to the customer's grounded support structure (substructure) using the PE connector.
→ Connect the green-yellow PE cable (minimum cross-section 25
→ In addition, the general instructions for designing the data rail as a ground conductor rail must be observed (see Section
6.3.2).
MAL0515-0001i-EN
www.conductix.com
8
2
B
Do not crimp the PE cable!
Comply with the bending radii of the PE cables (see Data Sheet).
The PE cable must be suitable for an operating temperature of at least 90° C!
Translated from MAL0515-0001k-DE
Item Name
1 Countersunk screw M3 x 8
Fastening
2
3 Serrated washer A6,4 DIN 6798
4 Cable lug up to 25 mm² M6 possible at
max. width (w) of < 14 mm
5 Locking edge washer D6.1
6 Cylinder head screw DIN 6912-M6x10
7 Data rail
8 PE cable
9 PE symbol
) (see Fig. 130).
mm2
