Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515

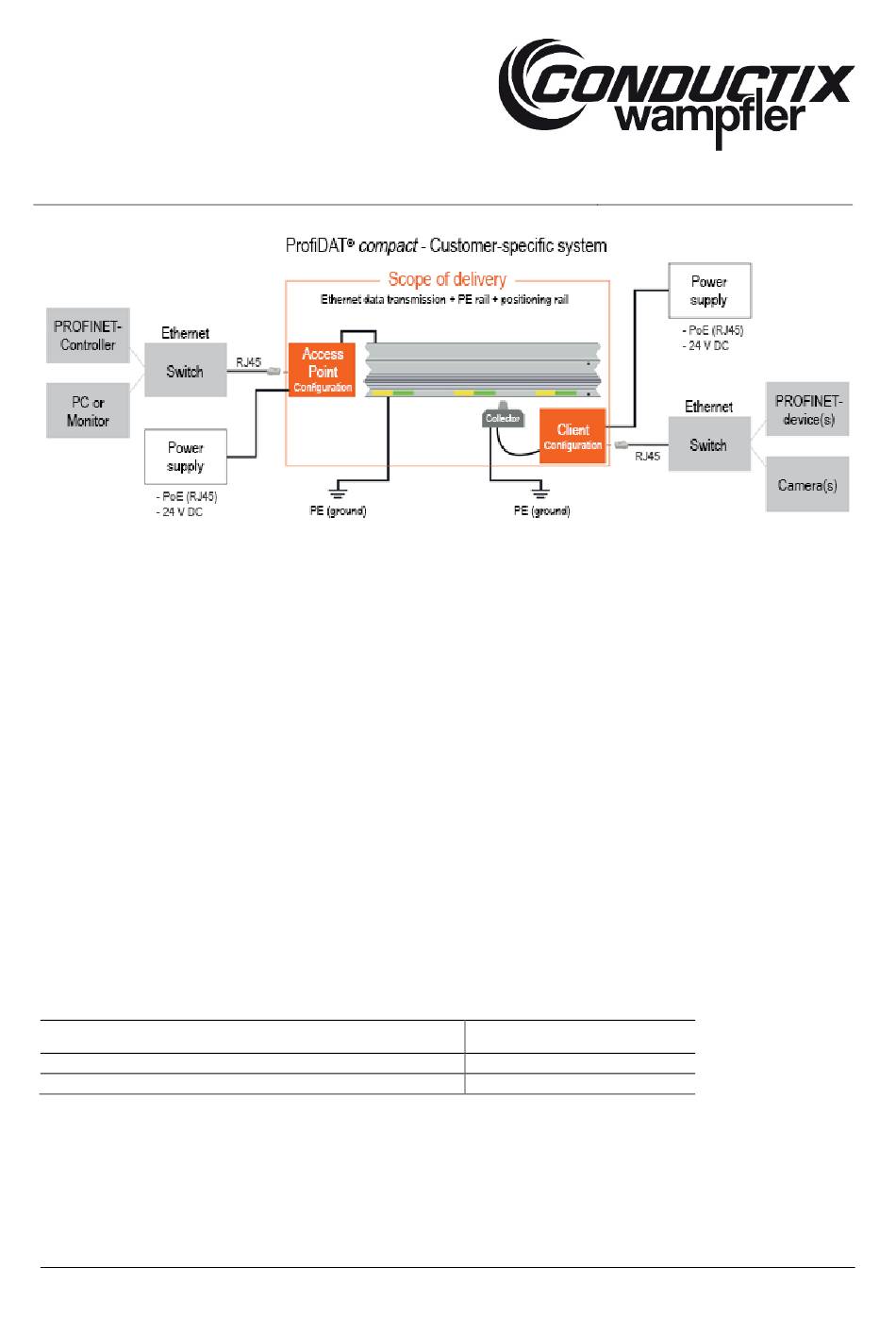

Fig. 1: Overview of interfaces and scope of delivery ProfiDAT ® compact (simplified)
Data interface: 100 Mbps, RJ45
Data is fed to the rail (slotted waveguide) via the line feed. A data cable (HF cable) is connected to the stationary antenna. The
connection is made via plug connectors.
The HF cable is connected to the antenna connector of the transceivers (access point). The access point is connected to the
customer network via an RJ45 connector.
Collector (including mobile antenna):
The collector head is connected to the on-board electrical system of the mobile consumer of the machine via two flexible cables
(HF cable and PE cable). The data cable (HF cable) between the mobile antenna and the transceiver (client) is included in the
scope of delivery. A 600 mm open-ended PE cable is installed in the mobile antenna.
The power cable between the mobile antenna and the consumer must be provided by the customer. The manufacturer/operator of
the machine/system must observe the required conductor cross-sections and when applicable, the design of the power cable and
ensure that the power cable is installed flexibly and free of directional forces. The connections are made via screw terminals or plug
connectors.
PE interface:
The interface for the customer-side PE cable is located on the PE connector (see Section 4.3). The PE cable must be connected
according to applicable standards.
Power supply / Control voltage:
The controller for the ProfiDAT
Name
DC control voltage
Transceiver
MAL0515-0001i-EN
www.conductix.com
compact requires the following power supply:
®
Translated from MAL0515-0001k-DE
Voltage / Frequency
24 V DC
