3.) Mount the PE connection on the data rail
→ The PE connection is mounted on the data rail. The flexible drilling jig is used for the drill holes in the data rail (see Fig. 86
and Fig. 87).
→ Attach the stop ring to the step drill M3 90° (see Fig. 102 to Fig. 104).
→ Drill the 2 holes (8) into the data rail (see Fig. 108). The drill holes are deburred during the drilling process.

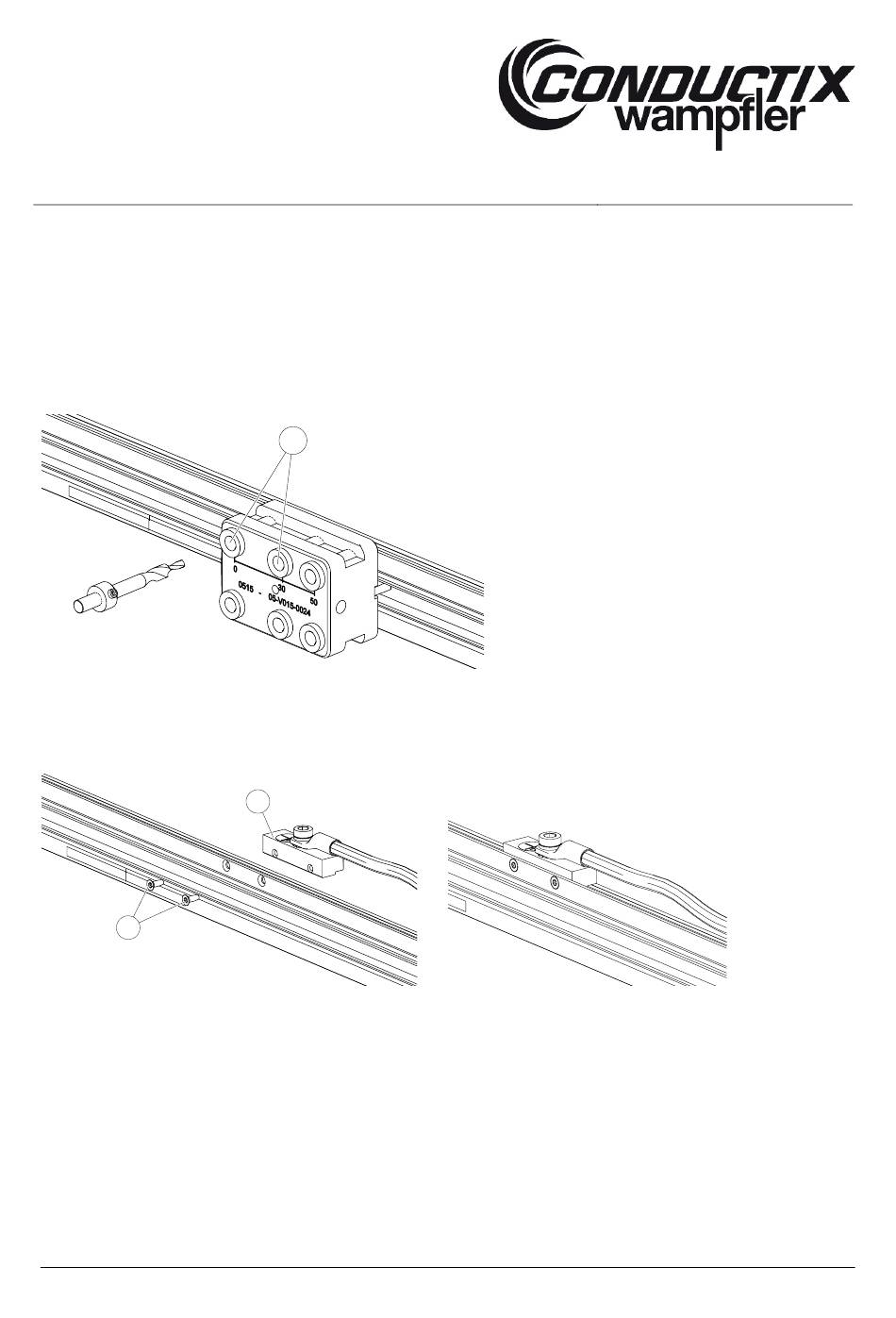

Fig. 94: Drill 2 holes for PE connection
→ Tighten the 2 self-tapping screws (W5154-K30X8-ES) (10) with a torque shut-off screwdriver (e.g. TorqBee, tightening torque:
2 Nm (see Fig. 95).
10
Fig. 95: Tighten the 2 self-tapping screws
MAL0515-0001i-EN
www.conductix.com
8
9
Translated from MAL0515-0001k-DE
Fig. 96: PE connection is mounted
