6.4.10 Drilling patterns for support structure (substructure)
If the support structure (substructure) is located directly on the back of the data rail, through holes for the stationary antennas, PE
connectors and anchor points must be drilled in the support structure (substructure). This is described in the respective sections
within this document.
Common drilling patterns are shown below. However, there may be deviations from this within the scope of projects, which is why
this should be discussed with Conductix-Wampfler in the design phase.
Project-specific drawings can be requested from Conductix-Wampfler during the design phase.

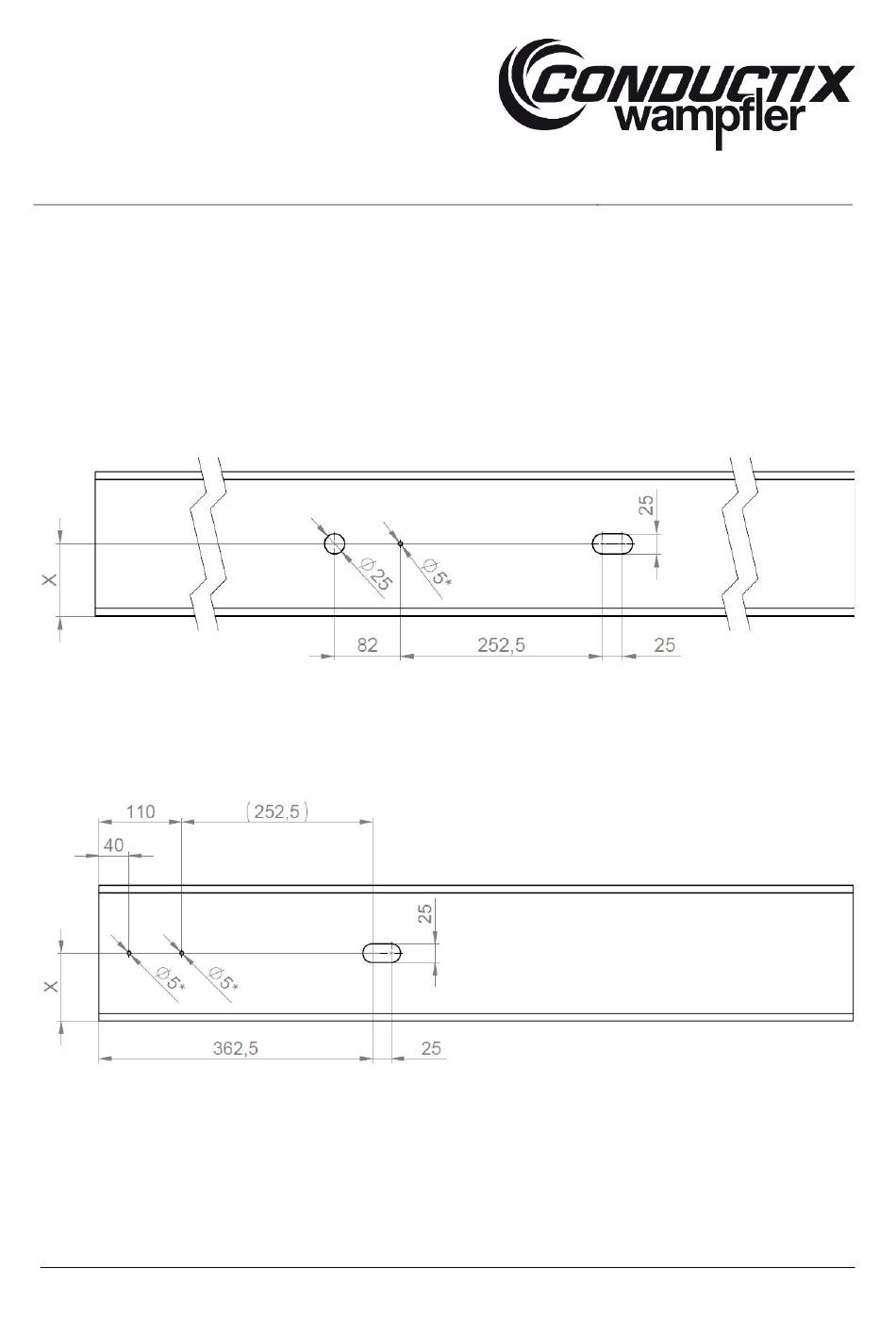

Drilling pattern for line feed with an expansion unit
Fig. 119: Drill hole positions for line feeds with expansion unit and without overrun cap
*Drill hole in anchor point screw
Drilling pattern for end feed with an expansion unit and an aluminium overrun cap
Fig. 120: Drill hole positions for end feed with expansion unit and aluminium overrun cap
* Options for anchor point screw
