Mounting Instructions
ProfiDAT
compact
®
Data Transmission System
Program 0515
6.4.4.5
Mount expansion unit for line feed
→ Loosen the 4 self-tapping screws M3 x 8 (3)
to disassemble the connector (center) (2)
(screw type: Hexagon socket (TorxPlus) TP
10) (see Fig. 70).
→ Slide rails (1) off the connector (center) (2)
(see Fig. 70).
In certain applications, an anchor point must be
set near an expansion unit, e.g. before transfers.
However, this is not required in all applications.
This should be determined by the customer
together with Conductix-Wampfler during the
design phase.
→ The position in the expansion unit where the
anchor point screws are to be placed must
be determined (A or B) (see Fig. 71) (see
System Layout)
→ To fasten the expansion unit (4) using the
anchor point screws, a through hole (D = 6
mm) must be drilled through the support
structure.
→ The position of the through hole can be
derived from Fig. 73 and Fig. 54.
→ Mount the anchor point screw (A or B)
(screw type: M4 DIN 7991, hexagon socket
SW 2.5 – steel 8.8, nut M4 (SW 7)) on the
right or left of the expansion unit (4) with a
tightening torque of 3.0 Nm (see Fig. 71).
→ Slide the rail ends (2) with the line feed
segment (1) (right and left) onto the
expansion unit (4) (see Fig. 71).
→ Tighten the 4 self-tapping screws M3 x 8
(tightening torque: 2.0 Nm, screw type:
Hexagon socket (TorxPlus) TP10) (3) (see
Fig. 71). These screws must be tightened
(mechanically) using a torque shut-off
screwdriver.
MAL0515-0001i-EN
www.conductix.com
1
3

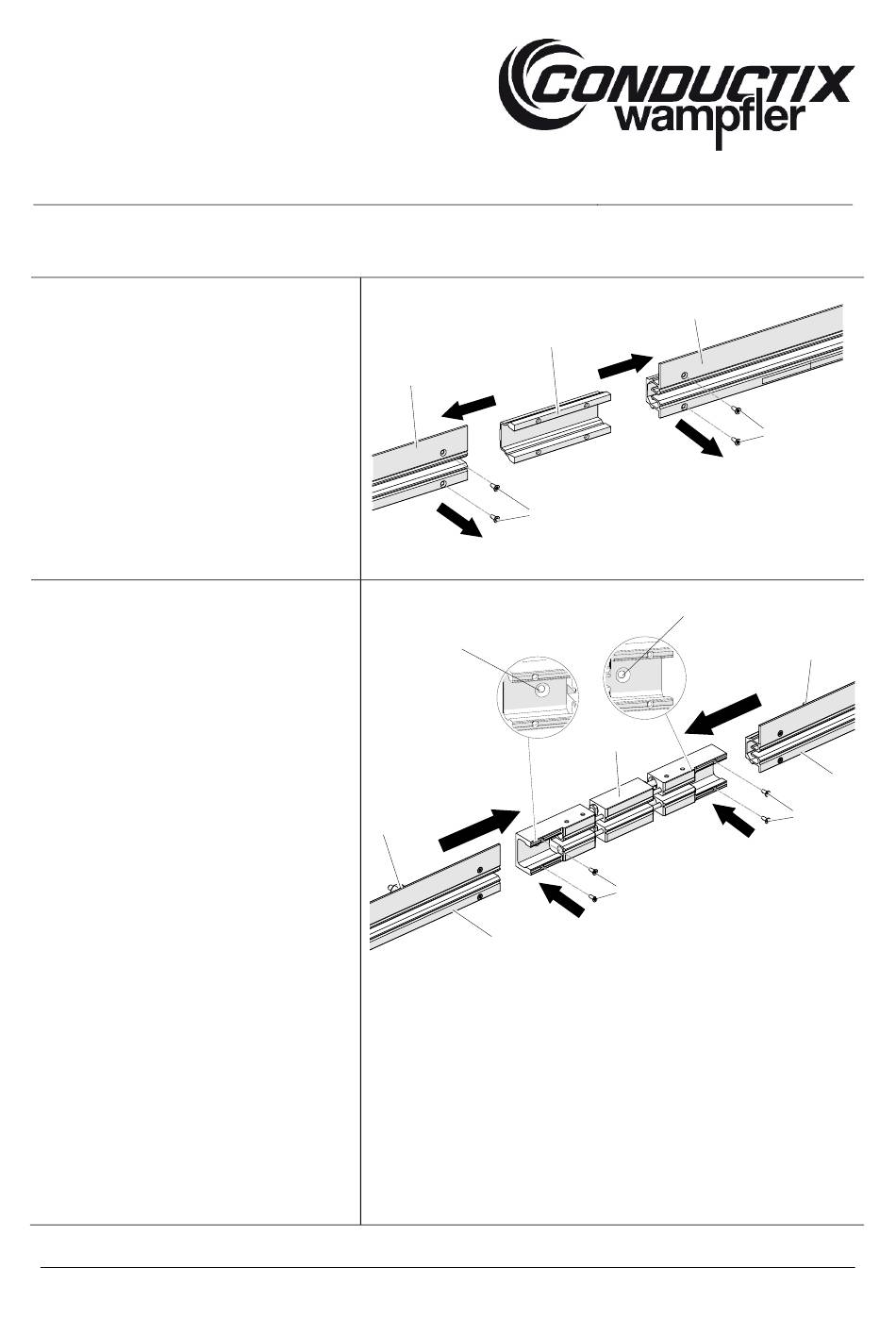

Fig. 70: Disassemble connector
A
1
2
Fig. 71: Mount expansion unit (1)
Translated from MAL0515-0001k-DE
1
2
B
4
3
3
1
2
3
Page 72 of 169
