Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
Rear side grounding connection via ring terminal
•
Plate for equipotential bonding connection with blade receptacle for 1.5-2.5 mm² (only for access point)
•
Not in scope of delivery:
Power supply
•
Media converter
•
HF cabling special features:
Cable (4) in the housing – shorter, deviating material number
•
Terminating resistor outside the housing and deviating type
•
Polycarbonate housing (Material number 051450-11)

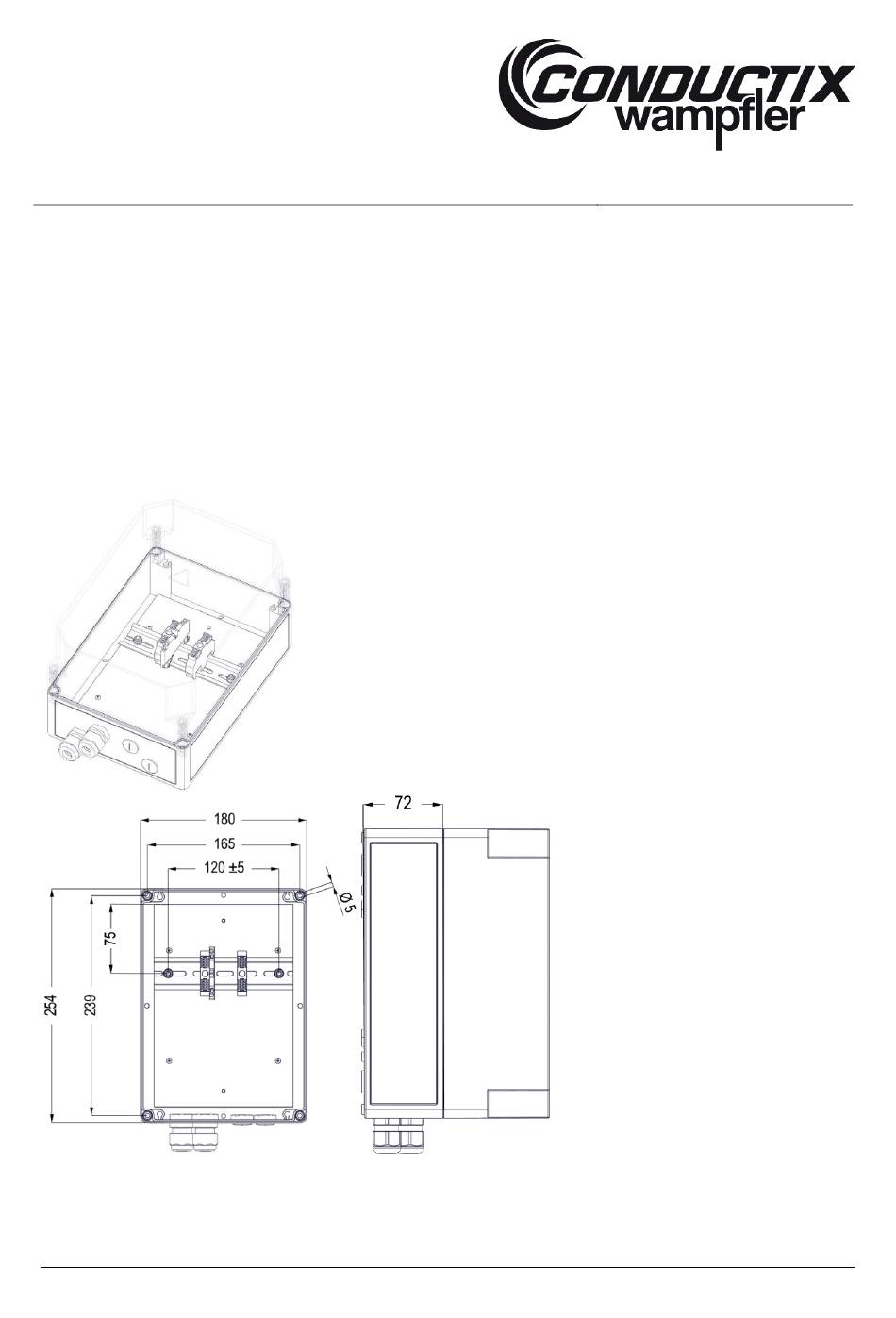

Fig. 4: Polycarbonate housing dimensions and illustration
Material: Glass fiber reinforced polycarbonate
•
Fastening: Sealing and insulation plugs for wall mounting screws
•
MAL0515-0001i-EN
www.conductix.com Translated from MAL0515-0001k-DE Page 30 of 169
