Work steps:
→ Connect the R-SMA connector of the cable (4) to the R-SMA connector of the transceiver. The N-socket on the other end of
the cable (4) must be installed as a switching cabinet bushing and electrically conductively connected to the housing
(grounded).
→ Connect the N-connector of the cable (12) to the cable (11) using the N-connector (10). Connect the N-connector (11),
observe instructions for equipotential bonding, see Section 6.5.3: This N-connector (11) must be installed in an insulated
manner. The N-connector (11) can simultaneously serve as a strain relief for fastening to a tab/strain relief plate.
→ Lead the cable (12) from the collector to the cable (4). Connect the N-connector of the cable (12) to the switching cabinet
bushing N-socket of the cable (4).
→ Connect the connection cable of the second collector in the same manner.
→ Fix the cable routing with cable ties or similar to the support structure (substructure); stow excess cables properly.

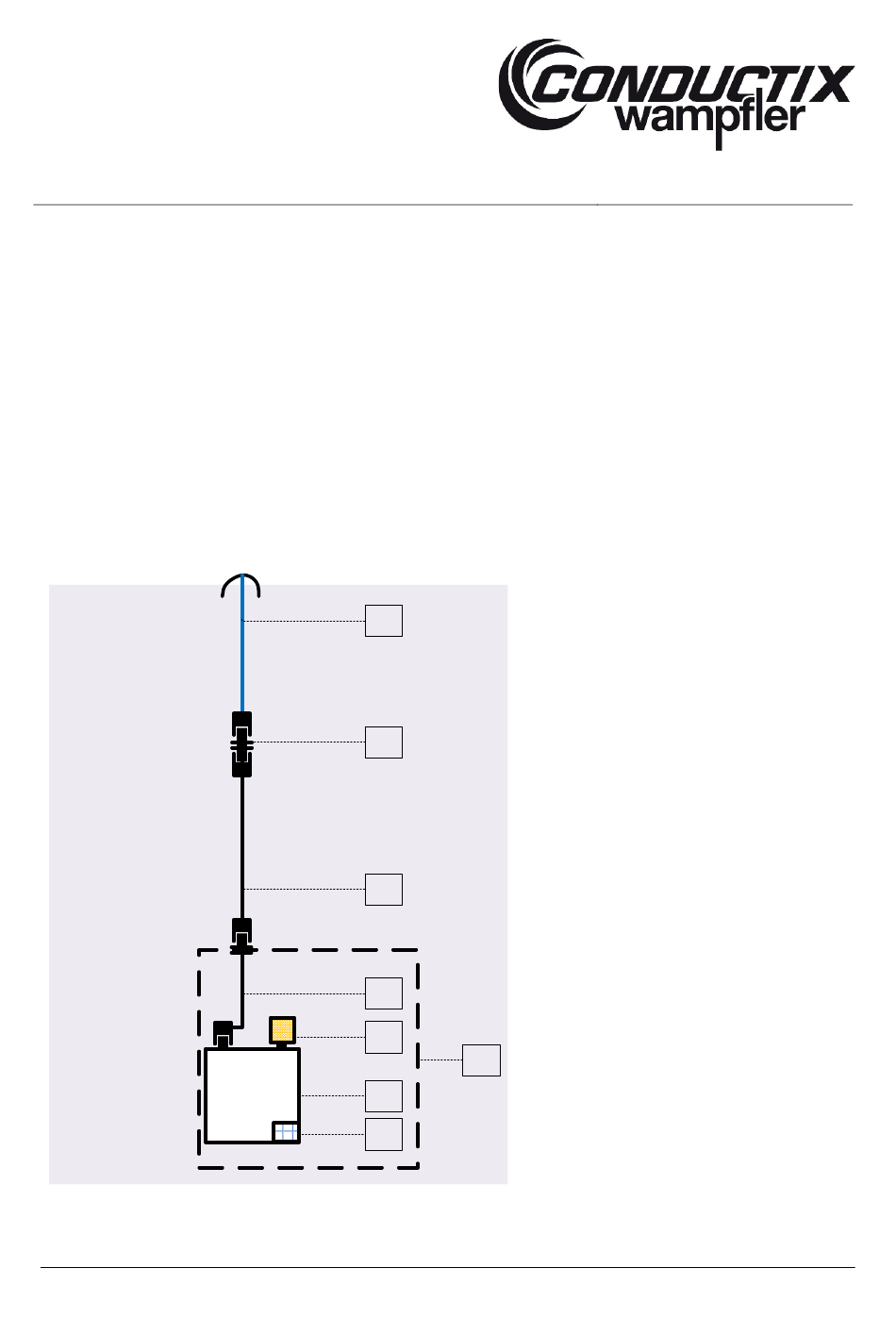

Connection of client with one antenna
