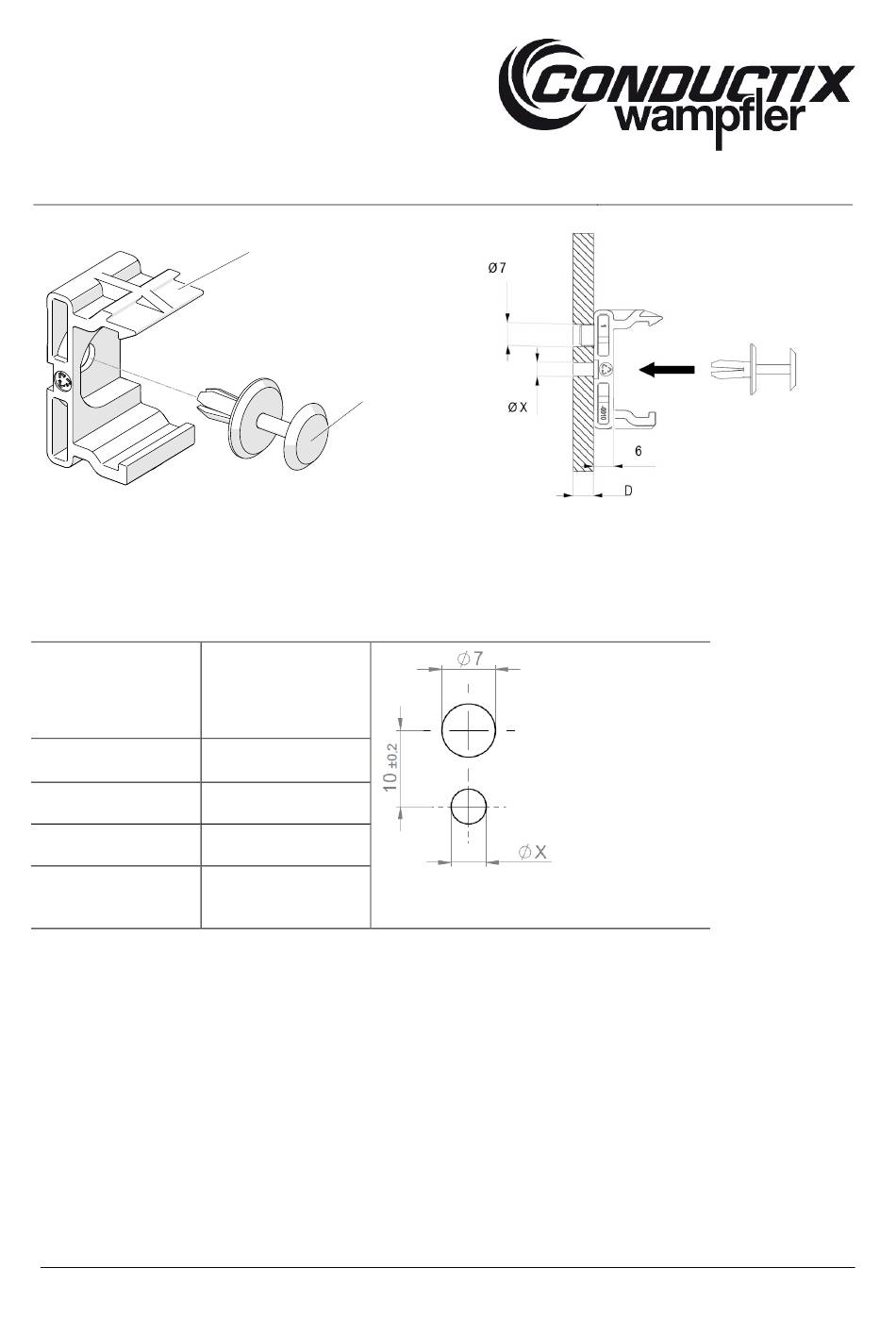

Fig. 34: Mount universal hanger clamp
Work steps for the universal hanger clamp:
→ Drill the support structure (substructure) for the hanger clamps according to Fig. 36. The diameter "X" depends on the
thickness of the support structure (substructure) and can be taken from the table below:
Thickness "D" of
support structure
(substructure)
[mm]
3.0
4.0
5.0
6.0
→ Mount the hanger clamp (1) on the side of the support structure (substructure).
→ Fix the hanger clamp with an expanding rivet (2).
MAL0515-0001i-EN
www.conductix.com
1
2
Diameter "X" of the
drill holes for the
mounting holes
[mm]
4.6 ± 0.05
4.7 ± 0.05
4.8 ± 0.05
Fig. 36: Distance between drill holes in support structure
4.9 ± 0.05
(substructure) for hanger clamp
Translated from MAL0515-0001k-DE
Fig. 35: Universal hanger clamp
