6.4.4.2 Setting up the expansion unit

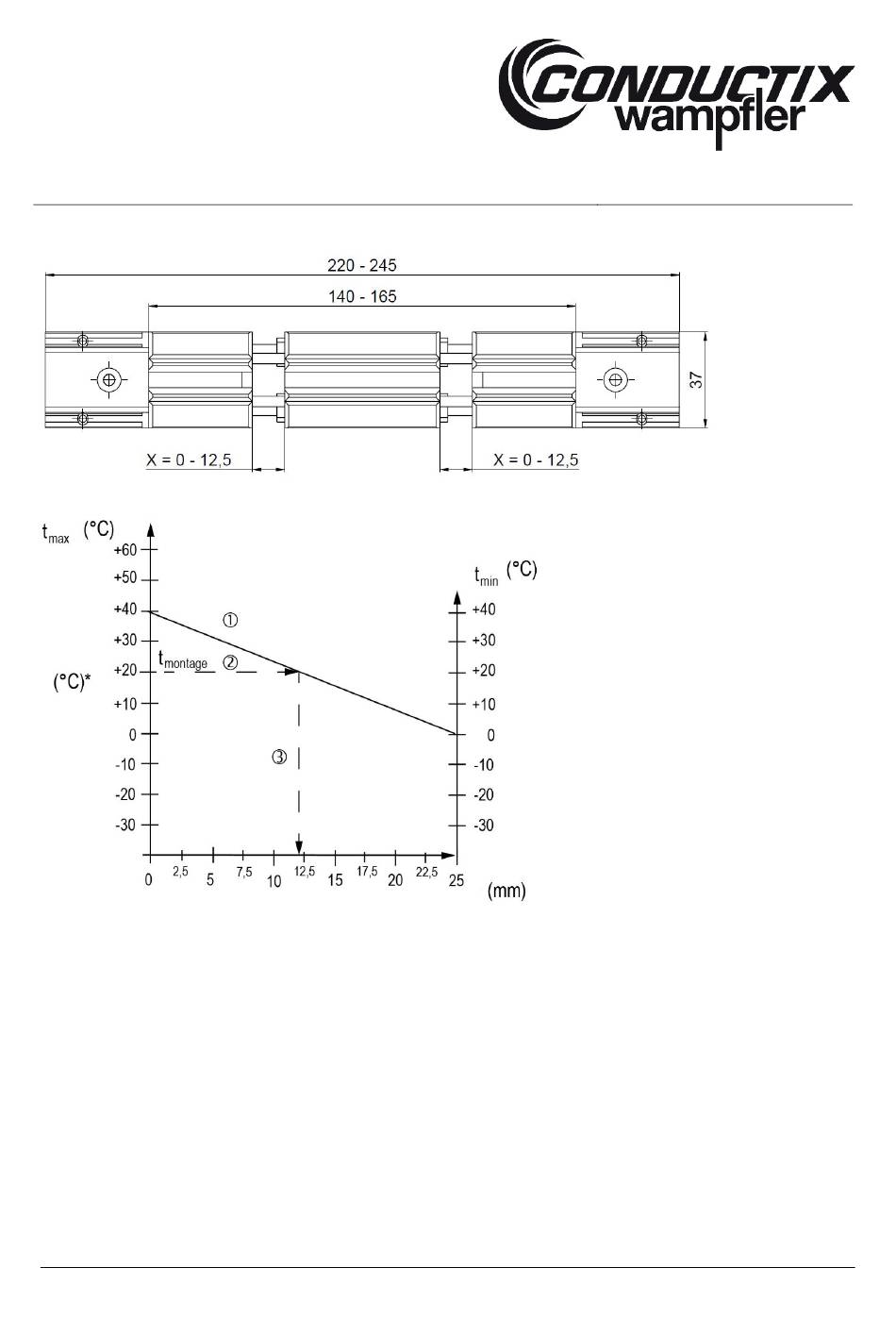

Fig. 54: Air gap in expansion unit
Fig. 55: Determine air gap
t = the lowest temperature occurring in the given application
min
t = highest possible operating temperature in the given application
max
* = Ambient temperature during installation
Instructions for determining the air gap:
1. Enter the connecting line from t
2. Enter the ambient temperature horizontally during installation t
3. Draw a line down from the intersection of the two lines and read the air gap to be set.
MAL0515-0001i-EN
www.conductix.com
to t .
min max
