8.3 Replacement of WLAN transceiver
If a WLAN transceiver needs to be replaced due to a defect, the following options are available:
1. Replace using the removable media (Key/C-plug)
2. Replace using the web interface
8.3.1 Replacement using the removable media (Key/C-plug)
Each WLAN transceiver is delivered with a removable media (Key or C-plug). This removable media contains the configuration of
the WLAN transceiver and the firmware (depending on the settings).
In the event of a defect in the WLAN transceiver, it can be replaced with a new transceiver with little effort using the removable
media.
The following steps are necessary for this:
1. Disconnect the old transceiver from the power supply.
2. Loosen the slot cover (2) by loosening the screw (1) and swivel the cover to the side.
3. Remove the connector.
4. Close the slot cover and screw it back into place.
5. Mount the removable media in the new, still unpowered transceiver in the same order.
6. Supply the new transceiver with power.
The new transceiver will then start up with the connector settings and carry out a firmware upgrade/downgrade if necessary.
Also see the manufacturer's operating instructions, Section 6.6 "Replace connector"

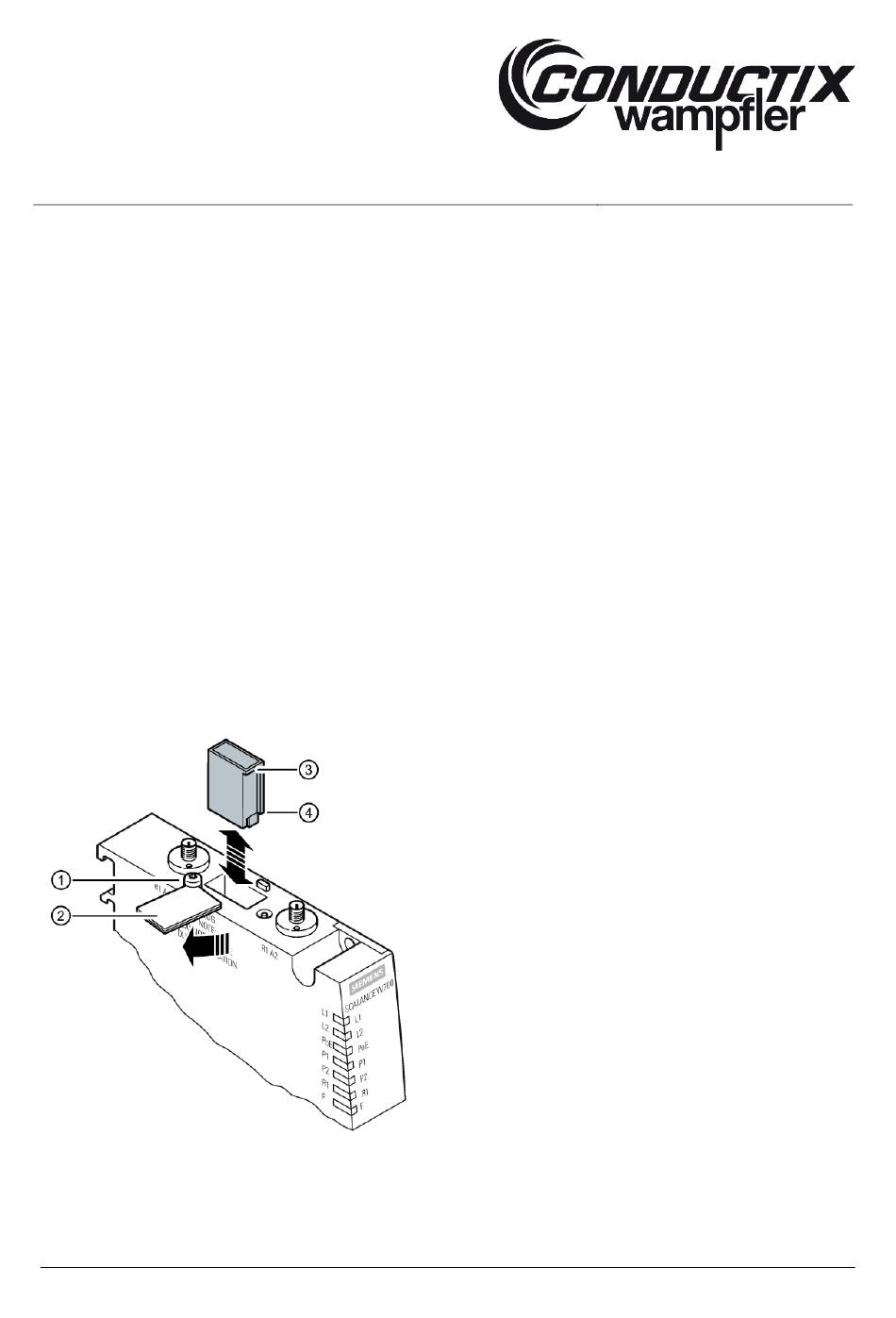

Fig. 190: Replace WLAN transceiver using removable media (Key/C-plug) (source: Siemens Operating Manual C79000-G8900-C325-15 page 62)
