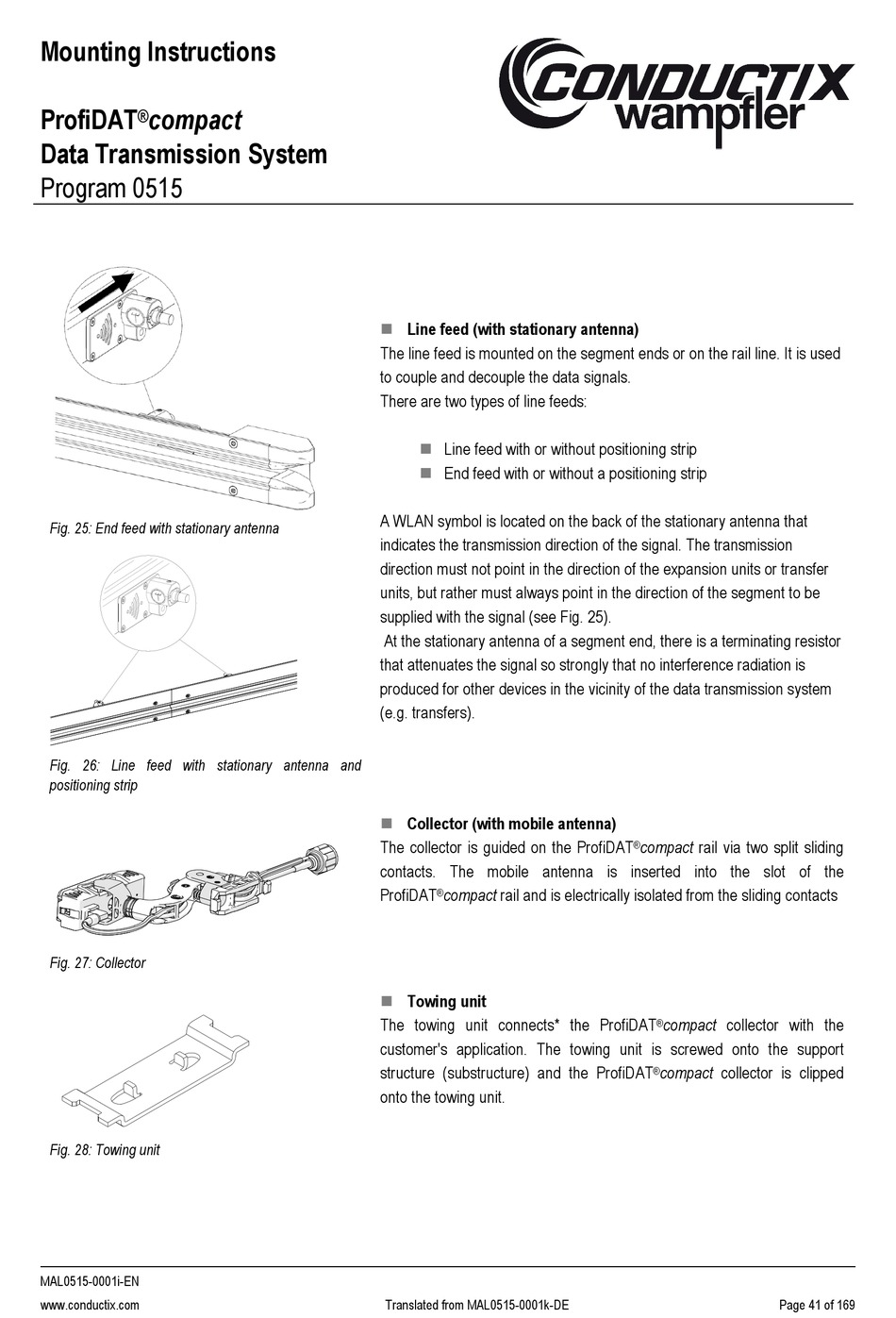

Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
Fig. 25: End feed with stationary antenna
Fig. 26: Line feed with stationary antenna and
positioning strip
Fig. 27: Collector
Fig. 28: Towing unit
MAL0515-0001i-EN
www.conductix.com
Line feed (with stationary antenna)

The line feed is mounted on the segment ends or on the rail line. It is used
to couple and decouple the data signals.
There are two types of line feeds:
Line feed with or without positioning strip

End feed with or without a positioning strip

A WLAN symbol is located on the back of the stationary antenna that
indicates the transmission direction of the signal. The transmission
direction must not point in the direction of the expansion units or transfer
units, but rather must always point in the direction of the segment to be
supplied with the signal (see Fig. 25).
At the stationary antenna of a segment end, there is a terminating resistor
that attenuates the signal so strongly that no interference radiation is
produced for other devices in the vicinity of the data transmission system
(e.g. transfers).
Collector (with mobile antenna)

The collector is guided on the ProfiDAT
contacts. The mobile antenna is inserted into the slot of the
ProfiDAT compact rail and is electrically isolated from the sliding contacts
®
Towing unit

The towing unit connects* the ProfiDAT
customer's application. The towing unit is screwed onto the support
structure (substructure) and the ProfiDAT
onto the towing unit.
Translated from MAL0515-0001k-DE
compact rail via two split sliding
®
compact collector with the
®
compact collector is clipped
®
