Mounting Instructions
ProfiDAT
compact
®
Data Transmission System
Program 0515
9.3.6
Power supply state
The power supply state is displayed in the menu "Information" -> "Start Page" in the lines "Power Line 1", "Power Line 2" and
"Power over Ethernet".
9.3.7
Network connection state
The general state of the network interface can be viewed via the menu "Interfaces -> Ethernet -> Overview".
In addition, the Ethernet interface states can be observed over time in the Event Log.
Through this, for example, sporadic interruptions of the network connections can be observed.
9.3.8
AP: View associated clients
On the AP in the menu "Information -> WLAN -> Client List" all clients associated with the AP are listed.

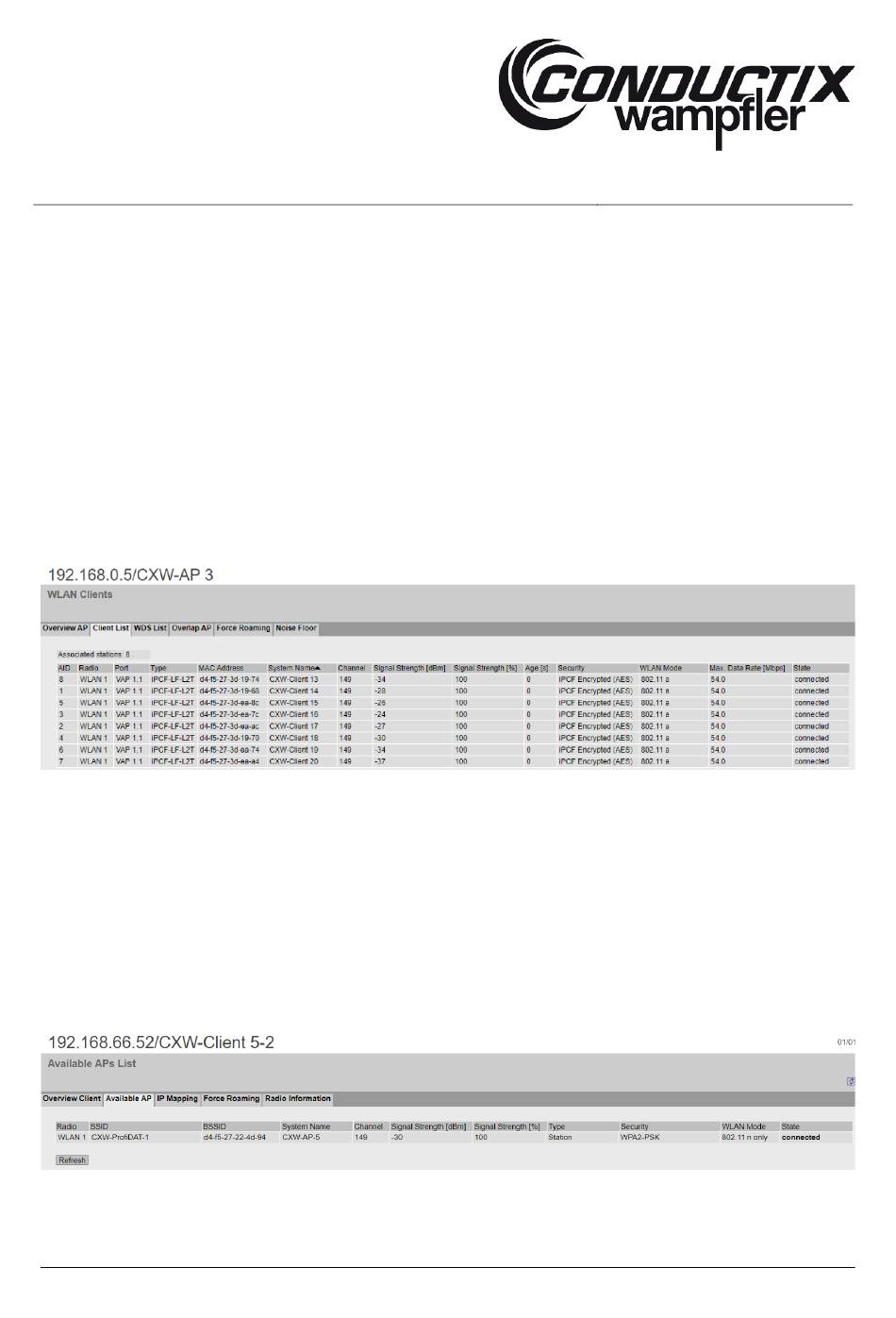

Fig. 197: Display of associated clients
This can be used to obtain information about the quality of the connection ("Signal Strength [dBm]"), the name of the client
("System Name"), the WLAN channel ("Channel") and the WLAN data rate ("Max. Data Rate [Mbps]").
If a client is clearly located the segment of the AP considered (see project-specific documentation) and is not listed here, it either
has no connection for various reasons or is incorrectly connected to another AP.
9.3.9
Client: Available access points
All APs currently available for the client are listed on Client in the menu "Information -> WLAN -> Available AP". If the client is
connected to one of these, this is noted in the "State" column.
Fig. 198: Available access points
MAL0515-0001i-EN
www.conductix.com
Translated from MAL0515-0001k-DE
Page 157 of 169
