UNIVERGE SV8100/SV8300
6.9
System Hardware Manual
2. To remove the clip, press the retaining clip in toward the belt clip blade
and slide the clip up at the same time.
Installing the Handset Battery Pack
Before installing batteries, refer to D
Specifications and Battery Safety. It is important to follow safety regulations
when handling batteries.
1. Remove the battery cover by pressing the latch and sliding the cover
down and off of the handset.

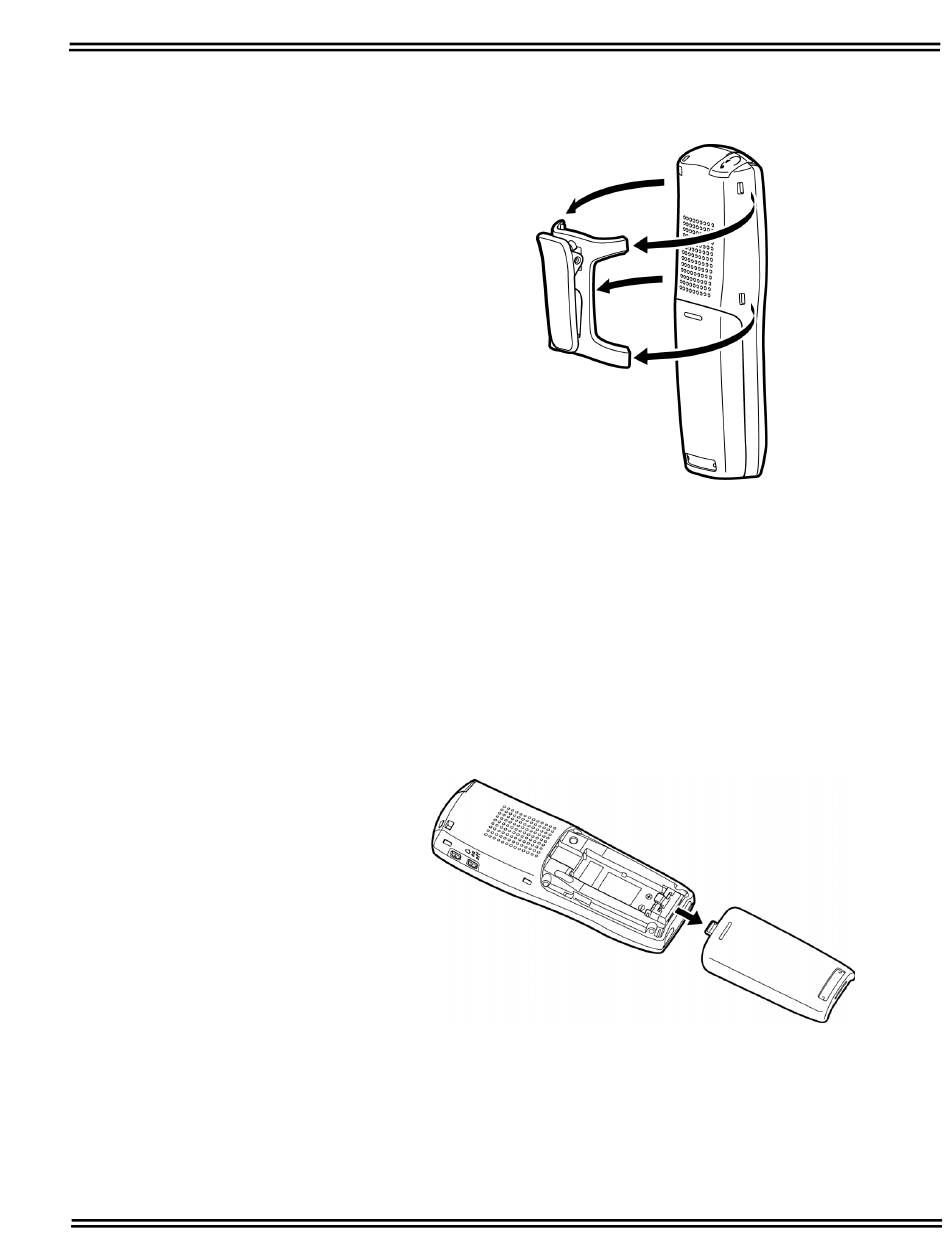

Figure 8-53 Removing the Belt Clip

term ®
Cordless DECT Owner's Manual

Figure 8-54 Removing the Battery Cover

Issue 1.0
8 - 41
