MDDR Subsystem

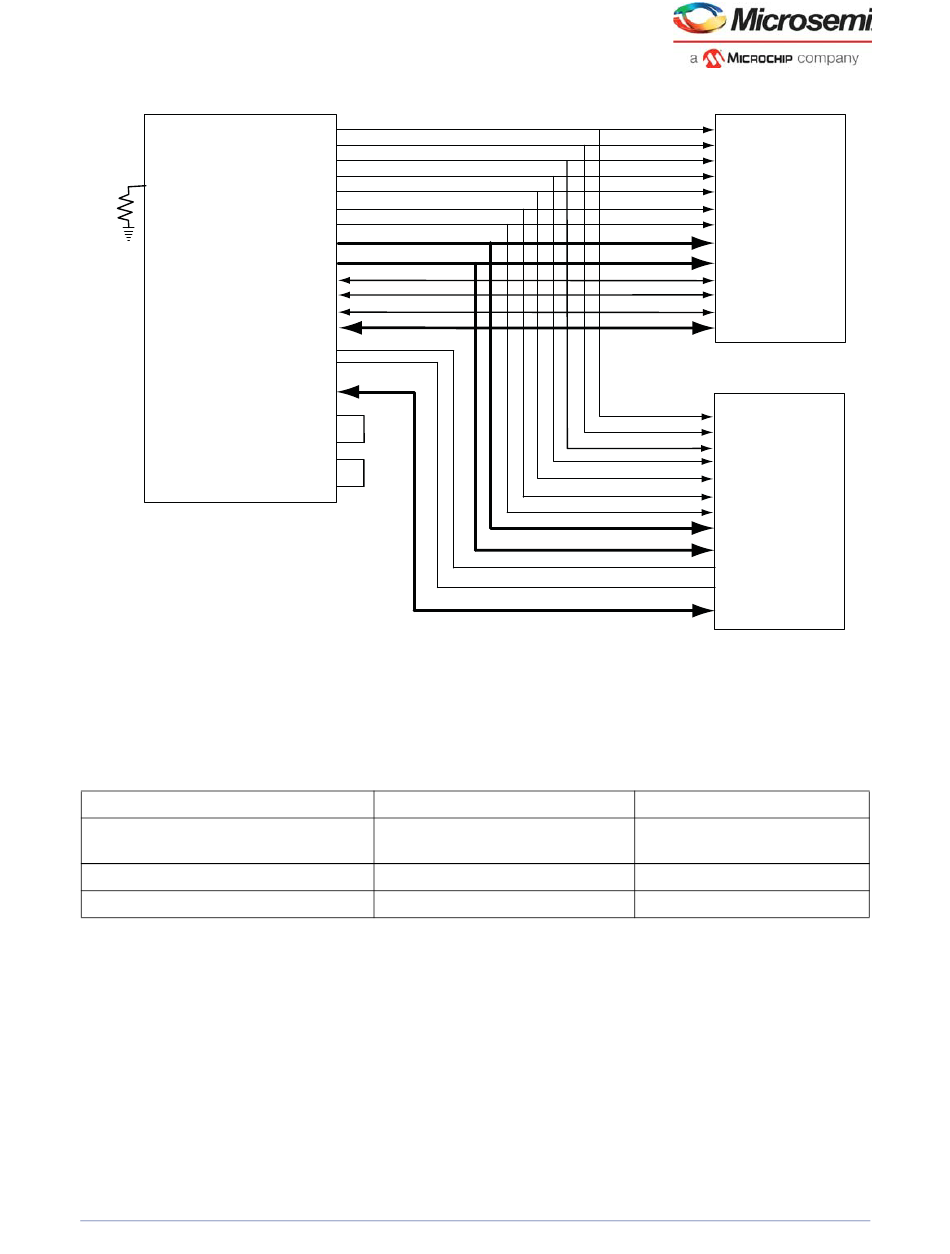

Figure 45 • ×16 LPDDR1 SDRAM Connection to MDDR
MDDR_PADS
MDDR_CAS_N
MDDR_CLK_N
MDDR_IMP_CALIB
R
MDDR_RAS_N
MDDR_ADDR[12:0]
MDDR_BA[1:0]
MDDR_DM_RDQS[1:0]
MDDR_DQS[0]
MDDR_DQS[1]
MDDR_DQ[15:0]
MDDR_DM_RDQS_ECC
MDDR_DQS_ECC
MDDR_DQ_ECC[1:0]
MDDR_DQS_TMATCH_0_IN
MDDR_DQS_TMATCH_0_OUT
MDDR_DQS_TMATCH_ECC_IN
MDDR_DQS_TMATCH_ECC_OUT
3.10

Board Design Considerations

MDDR/FDDR subsystems are interfaced with DDR memories through DDRIO. DDRIO is a multi-
standard IO optimized for LPDDR, DDR2, and DDR3 performance. The following table lists the IO
standards and calibration resistance requirements for MDDR/FDDR to interface with DDR memories.
Table 25 • I/O Standards and Calibration Resistance Requirements for MDDR/FDDR
Memory Type
LPDDR
DDR2
DDR3
For more information on IO Standards and Calibration Resistance Requirements, refer to the
AC394: Layout Guidelines for SmartFusion2/IGLOO2-Based Board Design Application Note
AC393: Board Design Guidelines for SmartFusion2 SoC and IGLOO2 FPGA Application
Note: For LVCMOS18 IO Standard, the user can optionally calibrate the IO. If calibration is desired, the user
must install the appropriate resistor on the PCB.
3.11

MDDR Configuration Registers

This section provides MDDR subsystem registers along with the address offset, functionality, and bit
definitions. The registers are categorized based on the controller blocks in the MDDR subsystem.
MDDR_CKE
MDDR_CLK
MDDR_CS_N
MDDR_WE_N
IO Standard
LVCMOS18
LPDDRI(SSTL18)
SSTL18
SSTL15
Microsemi Proprietary UG0446 User Guide Revision 7.0
MT46H32M16LF
CASN
CKE
CLK_P
CLK_N
CSN
RASN
WEN
ADDR[12:0]
BA[2:0]
UDM, LDM
LDQS
UDQS
DQ[15:0]
MT46H32M16LF
CASN
CKE
CLK_P
CLK_N
CSN
RASN
WEN
ADDR[12:0]
BA[2:0]
LDM
LDQS
DQ[1:0]
Calibration Resistor
Not Required*
Required
Required
Required
and
Note.
