MDDR Subsystem

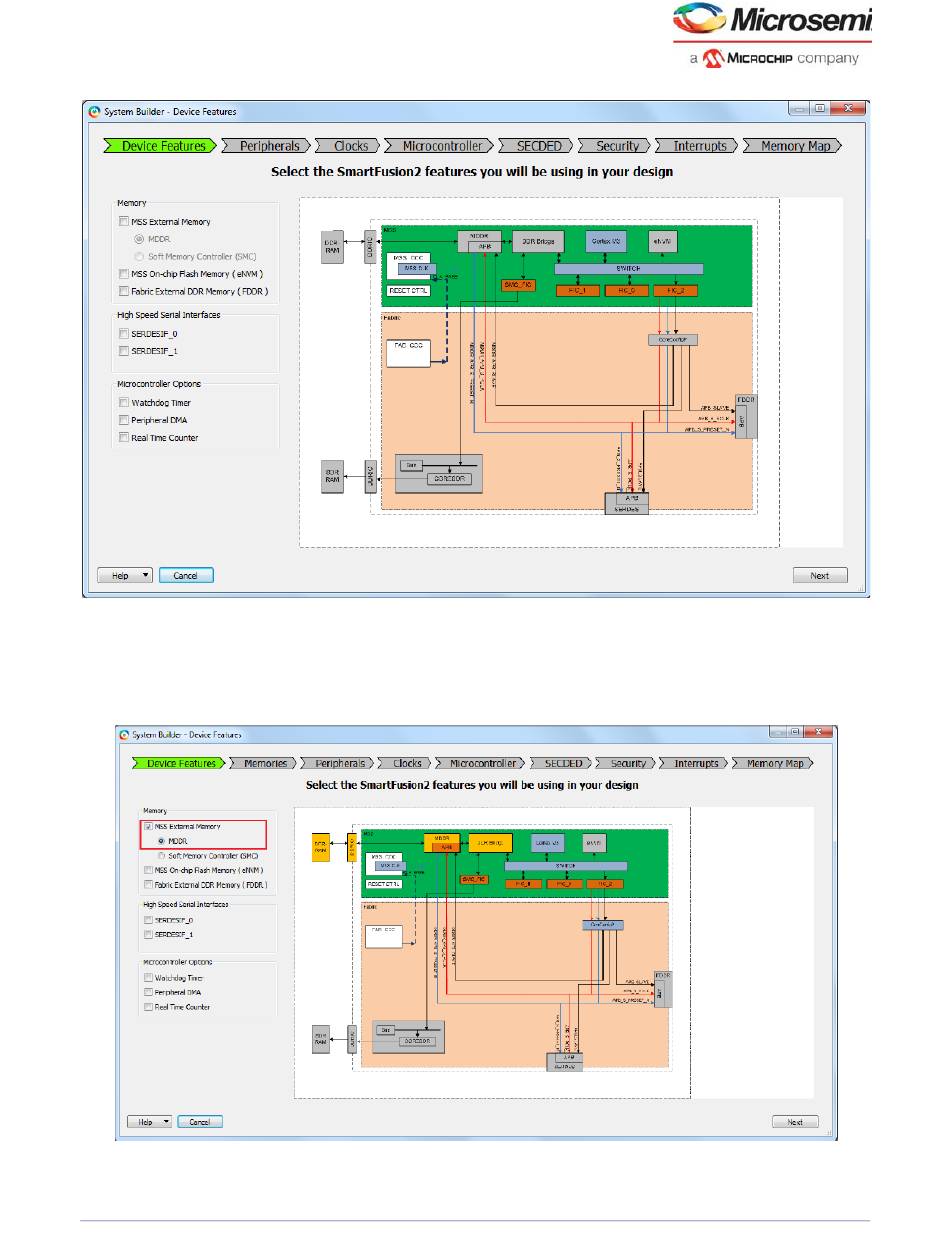

Figure 46 • System Builder - Device Features Window
The following steps describe how to configure the MDDR.
1. Check the MSS External Memory check box under the Device Features tab, select MDDR and
leave the other check boxes unchecked. The following image shows the System Builder - Device
Features tab.
Figure 47 • MSS External DDR Memory Selection
Microsemi Proprietary UG0446 User Guide Revision 7.0 113
