DDR Bridge

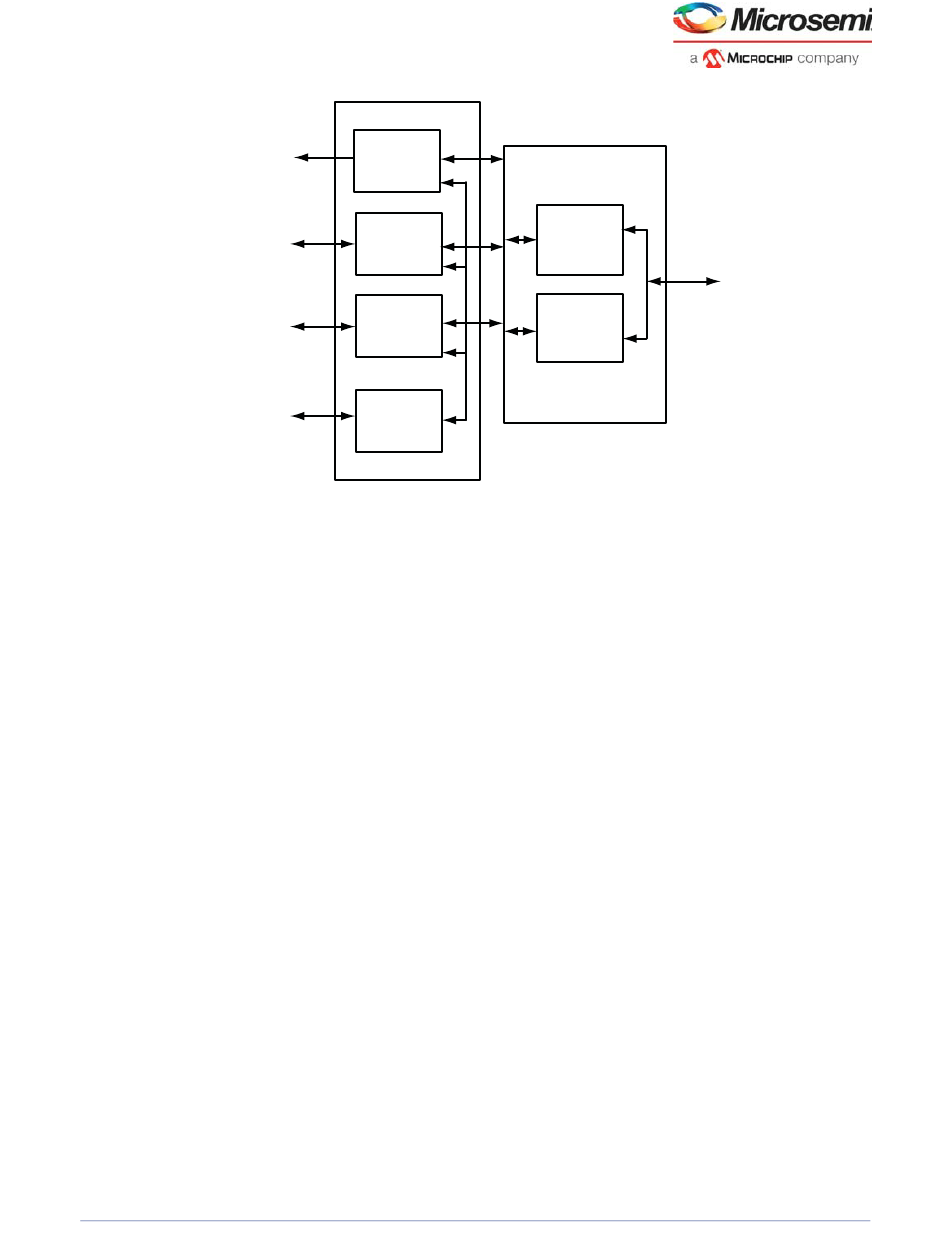

Figure 128 • DDR Bridge Functional Block Diagram
AHB Interface 0 to
connect with AHB Master
connect with AHB Master
AHB Interface 1 to
connect with AHB Master
connect with AHB Master
AHB Interface 2 to
connect with AHB Master
connect with AHB Master
AHB Interface 3 to
connect with AHB Master
connect with AHB Master
Arbitration between the four AHB interfaces is handled as follows:
Fixed priority between AHB Interfaces 0 and 1, with 0 having the highest priority
Round robin arbitration between interfaces 2 and 3
5.1.2

Details of Operation

This section provides a functional description of each block in the DDR Bridge, as shown in the previous
illustration.
5.1.2.1
Write Combining Buffer
The write combining buffer (WCB) combines multiple write transactions from the AHB master into AXI
burst transactions. The WCB has a user configurable burst size of 16 or 32 bytes. Each WCB maintains
a base address tag that stores the base address of the data to be combined in the buffer.
For each write transaction, the address is compared with the WCB tag. If the address matches the tag,
data is combined into the buffer. The WCB writes to the correct byte location based on the offset address
of the data. WCB can also be disabled, if buffering is not required.
The WCB has a 10-bit timer (down counter), which starts when the first bufferable write data is loaded
into the WCB. The timer starts decrementing its value at every positive edge of the AHB clock and when
it reaches zero, the data in the WCB is written to the AXI slave.
The WCB checks for any other master that has initiated a read to the same address for which data is
already present in a write buffer or for which a write operation is ongoing. If the address for a read
request matches the write buffer tag, the read request is held until the buffer is written completely to the
AXI slave.
the following illustration shows the flowchart for WCB operation.
e 0 to
Read
Read
Buffer
Buffer
e 1 to
WCB and Read
and Read
Buffer
Buffer
e 2 to
WCB and Read
and Read
Buffer
Buffer
e 3 to
WCB and Read
and Read
Buffer
Buffer
Microsemi Proprietary UG0446 User Guide Revision 7.0
Arbiter
Write Access
rite Access
Control
Control
To AXI Slave
Read Access
Read Access
Control
Control
209
