MDDR Subsystem
• No Activity clocks for Entry: 320
Memory Timing
• Time To Hold Reset Before INIT - 67584 clks
• MRD: 4 clks
• RAS (Min): 8 clks
• RAS (Max): 8192 clks
• RCD: 6 clks
• RP: 7 clks
• REFI: 3104 clks
• RC: 3 clks
• XP: 3 clks
• CKE: 3 clks
• RFC: 79 clks
• FAW: 0 clks
6. Navigate to the Peripherals tab. To access the MDDR from the FPGA fabric, drag and drop the
Fabric AMBA Master to the MSS DDR FIC Subsystem and click configure to select the type of
interface as AXI or single AHB-Lite. The user logic in the FPGA fabric can access the DDR memory
through the MDDR using these interfaces. The following image shows the Peripherals tab.

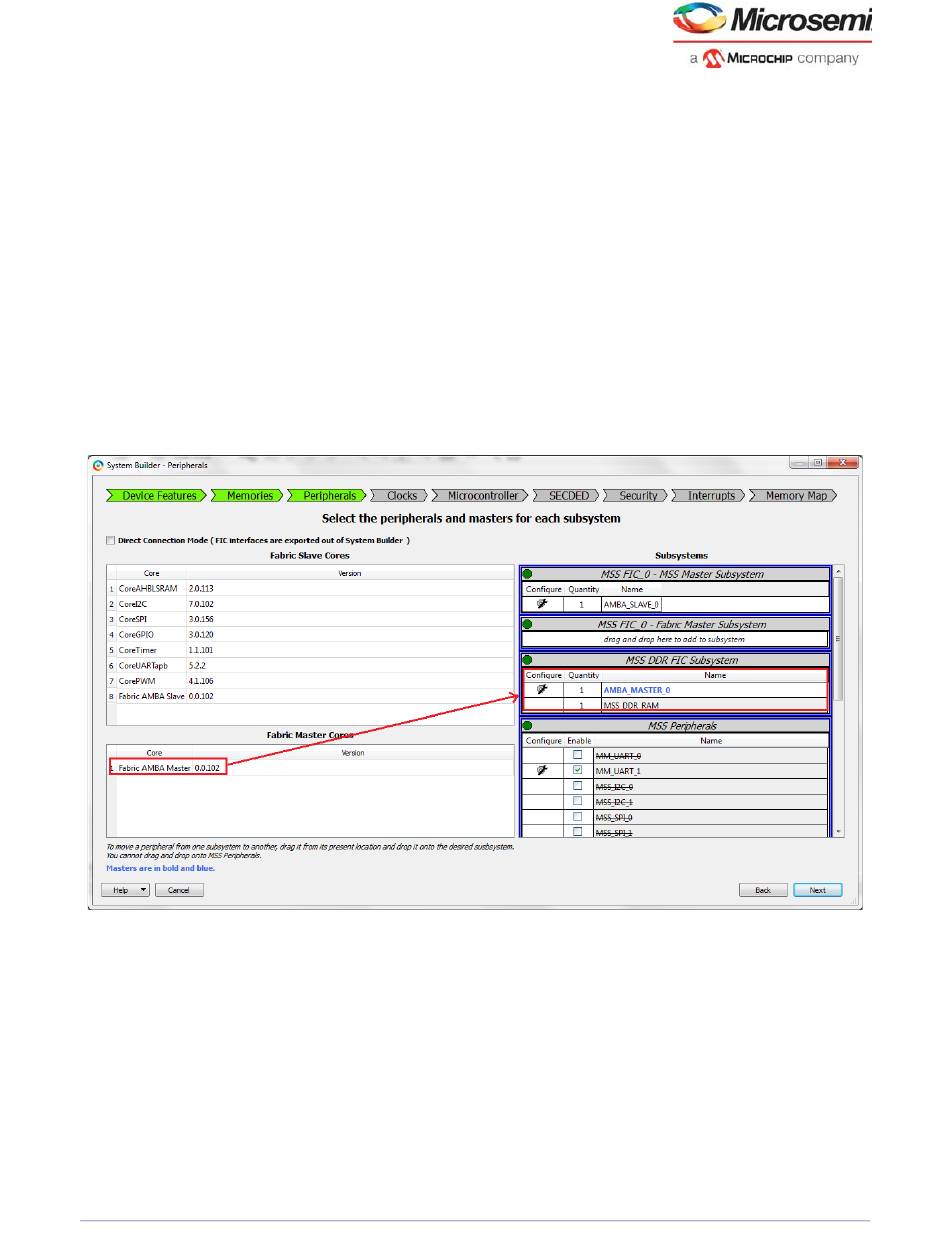

Figure 52 • MSS DDR FIC Subsystem Configuration
7. Navigate to the Clocks tab. The Clocks tab allows to configure the system clock and subsystem
clocks. The MDDR subsystem operates on MDDR_CLK, which comes from MSS_CCC. The
MDDR_CLK must be selected as multiples of 1, 2, 3, 4, 6 or 8-of M3_CLK. The maximum frequency
of MDDR_CLK is 333.33 MHz. The following image shows the MDDR_CLK configuration.
