MDDR Subsystem

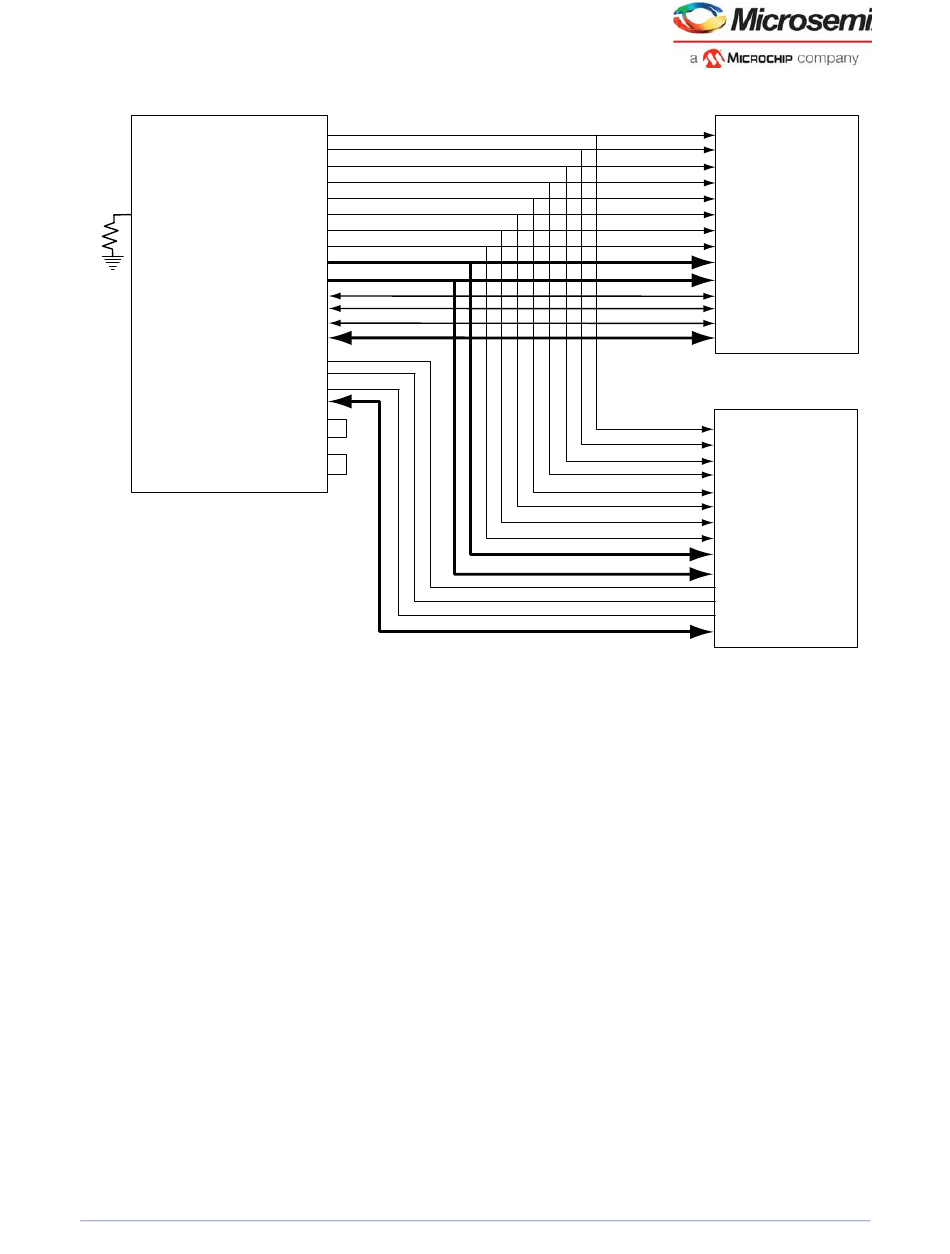

Figure 43 • x16 DDR2 SDRAM Connected to MDDR
MDDR_PADS
MDDR_CAS_N
MDDR_CKE
MDDR_CLK_N
MDDR_CS_N
MDDR_ODT
MDDR_IMP_CALIB
MDDR_RAS_N
R
MDDR_WE_N
MDDR_ADDR[12:0]
MDDR_BA[2:0]
MDDR_DM_RDQS[1:0]
MDDR_DQS[1:0]
MDDR_DQS_N[1:0]
MDDR_DQ[15:0]
MDDR_DM_RDQS[3:2]
MDDR_DQS[3:2]
MDDR_DQS_N[3:2]
MDDR_DQ[31:16]
MDDR_DQS_TMATCH_0_IN
MDDR_DQS_TMATCH_0_OUT
MDDR_DQS_TMATCH_1_IN
MDDR_DQS_TMATCH_1_OUT
3.9.2 Example 2: Connecting 32-Bit DDR3 to MDDR_PADs with
SECDED
The following illustration shows DDR3 SDRAM connected to the MDDR of a IGLOO2 device. Micron's
MT41J512M8RA is a 512 MB density device with x8 data width. The MDDR is configured in full bus width
mode with SECDED enabled. The SDRAM connected to MDDR_DQ_ECC[3:0] is used to store
SECDED bits. The total amount of DDR3 memory (excluding memory for SECDED) connected to MDDR
is 2 GB.
MDDR_CLK
Microsemi Proprietary UG0446 User Guide Revision 7.0
MT47H64M16
CASN
CKE
CLK_P
CLK_N
CSN
ODT
RASN
WEN
ADDR[12:0]
BA[2:0]
DM
UDQS, LDQS
UDQS#, LDQS#
DQ[15:0]
MT47H64M16
CASN
CKE
CLK_P
CLK_N
CSN
ODT
RASN
WEN
ADDR[12:0]
BA[2:0]
DM
UDQS, LDQS
UDQS#, LDQS#
DQ[15:0]
