Fabric DDR Subsystem
In the event of loss of FPLL lock, even though its output is not exactly in phase lock with the reference,
the FPLL still generates a clock. User logic in the FPGA fabric can use the FPLL_LOCK signal to prevent
communication with the FDDR subsystem during this time.
4.6.3.2 DDR_FIC
The following illustration shows the DDR_FIC block diagram.

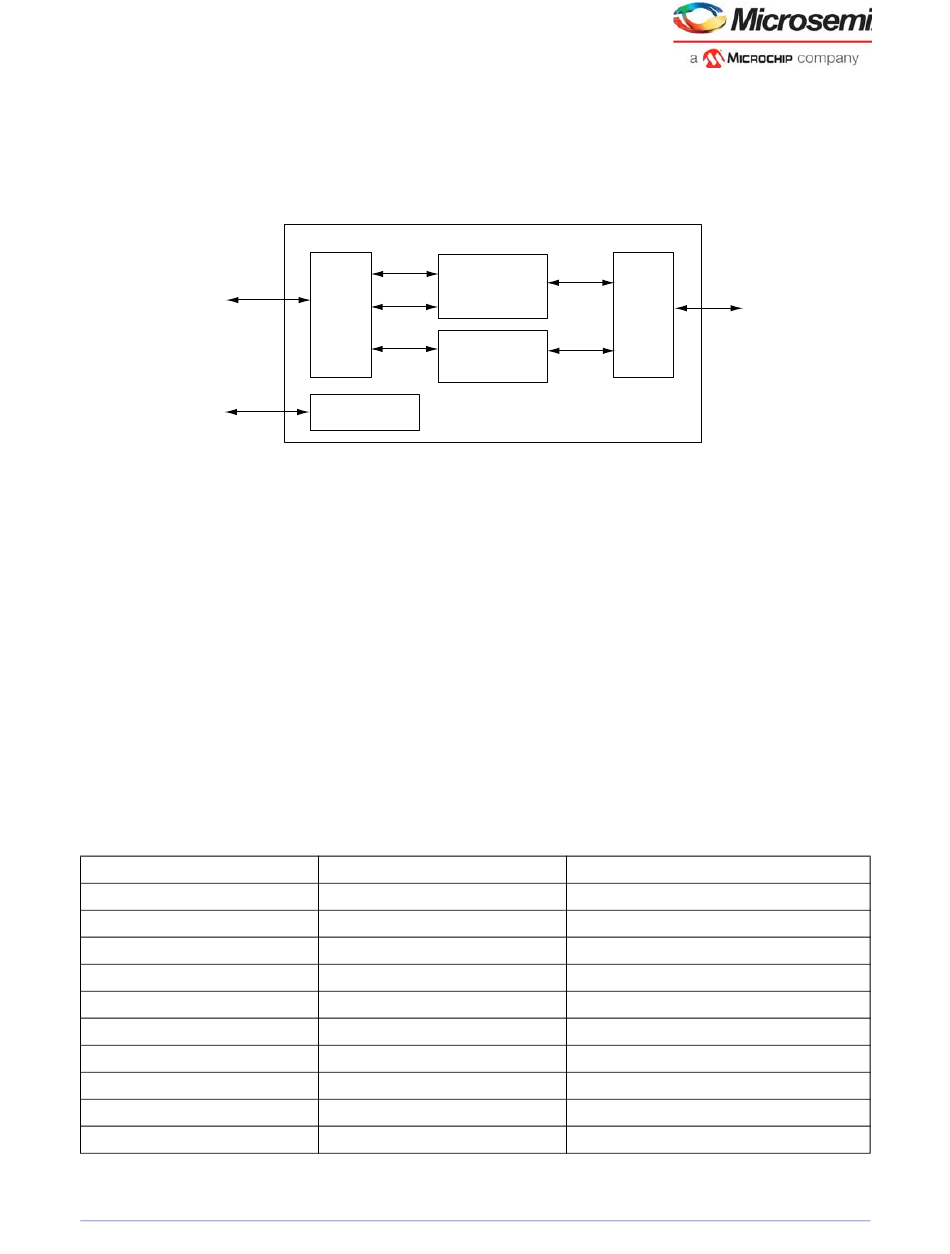

Figure 77 • DDR_FIC Block Diagram
64-Bit AXI / Single
32-Bit AHBL /
Dual 32-Bit AHBL
Slave Interface
16-Bit APB
Configuration Bus
Fabric masters can access the FDDR subsystem in the following ways:
• Single AXI-64 interface
• Single AHB-32 interface
• Dual AHB-32 bit interfaces
If the AXI-64 interface is selected, the DDR_FIC acts as an AXI to AXI synchronous bridge and also
supports locked transactions. During locked transactions a user configurable 20-bit down counter keeps
track of the duration of the locked transfer. If the transfer is not completed before the down counter
reaches zero, a single clock cycle pulse interrupt is generated to the fabric interface.
If single or dual AHB-32 interfaces are selected, the DDR_FIC converts the single or dual 32-bit AHBL
master transactions from the FPGA fabric to 64-bit AXI transactions. The DDR bridge, which is
embedded as part of the DDR_FIC, is enabled in this case. The DDR bridge has an arbiter that uses a
round robin priority scheme on read and write requests from the two AHB masters. Refer to the
Bridge" chapter on page 207
The DDR_FIC input interface is clocked by the FPGA fabric clock and the AXI transaction controller is
clocked by FDDR_CLK from the FDDR clock controller. Clock ratios between FDDR_CLK and DDR_FIC
clock can vary. Supported ratios are shown in the following table. Clock ratios can be configured through
Libero System-on-Chip (SoC) software or through the FDDR_FACC_DIVISOR_RATIO register.
Table 132 • FDDR_CLK to FPGA Fabric Clock Ratios
DIVISOR_A[1:0]
00
00
00
00
00
01
01
01
01
11
AHB
DDR Bridge
AHB
MUX
AXI AXI-AXI
Synchronous
Configuration
Registers
for a detailed description.
DDR_FIC DIVISOR[2:0]
000
001
010
100
101
000
001
010
100
000
Microsemi ProprietaryUG0446 User Guide Revision 7.0
AXI
MUX
AXI
Bridge
FDDR_CLK: FPGA FABRIC Clock Ratio
1:1
2:1
4:1
8:1
16:1
2:1
4:1
8:1
16:1
3:1
AXI Transaction
Controller
"DDR
148
