Fabric DDR Subsystem

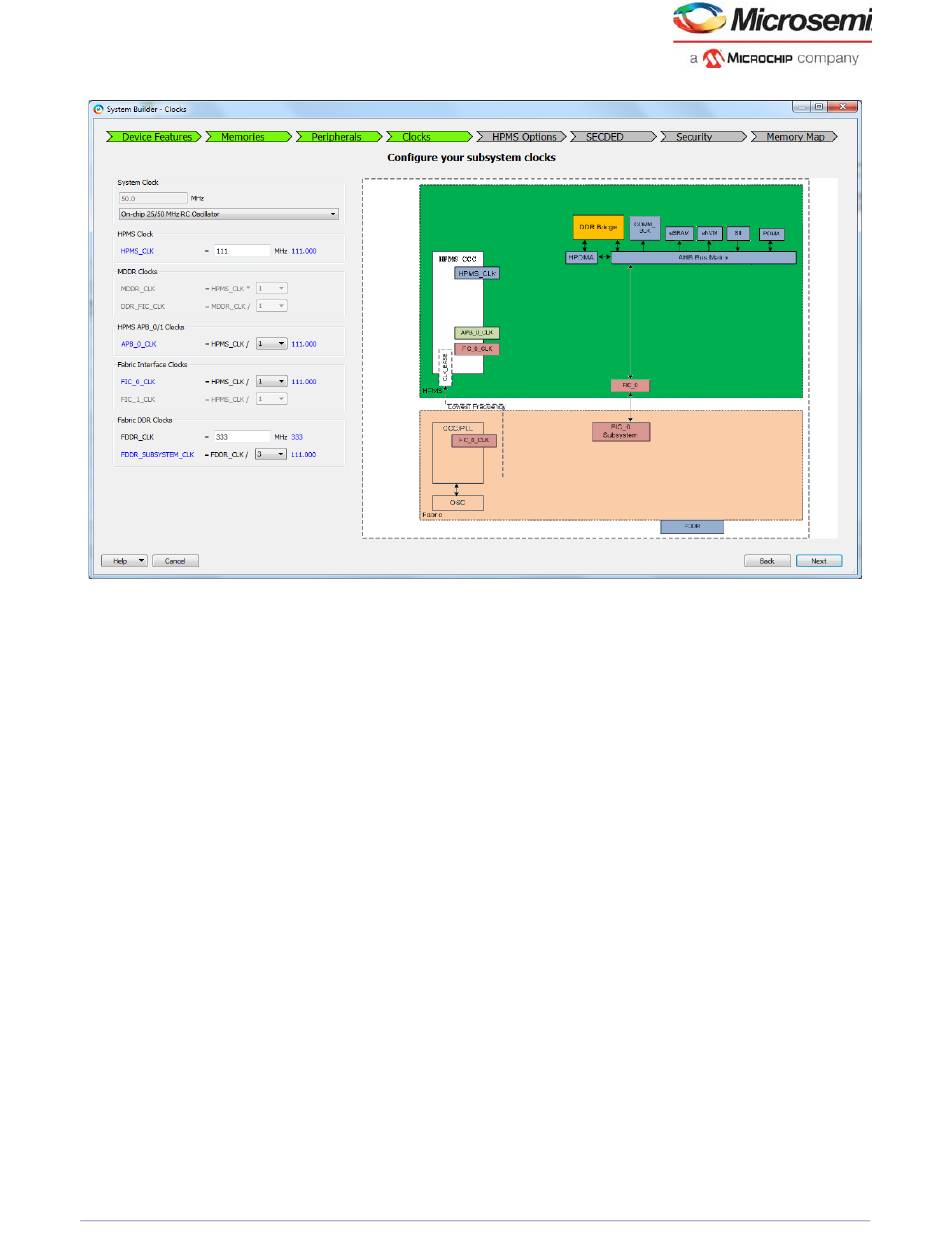

Figure 95 • Clocks Configuration
10. Navigate to the Memory Map tab giving the required data in the rest of the System Builder tabs.
11. Instantiate the user AXI master logic in the SmartDesign canvas to access the FDDR through the
AXI interface. Make sure that the AXI master logic accesses the FDDR after configuring the FDDR
registers.
12. Instantiate the CCC block in the SmartDesign canvas and configure it to generate 111 MHz clock.
13. Connect the AXI_Master logic signals as follows:
• CLK to GL0 of FCCC_0 and FDDR_SUBSYSTEM_CLK
• LOCK to LOCK of FCCC_0 and FDDR_SUBSYSTEM_LOCK
• RESET_N to INIT_DONE of FDDR_AXI_0
• AXI_S_RMW to FDDR_AXI_S_RMW of FDDR_AXI_0 block
14. The following illustration shows the rest of the connections in the top level design.
