Soft Memory Controller Fabric Interface Controller

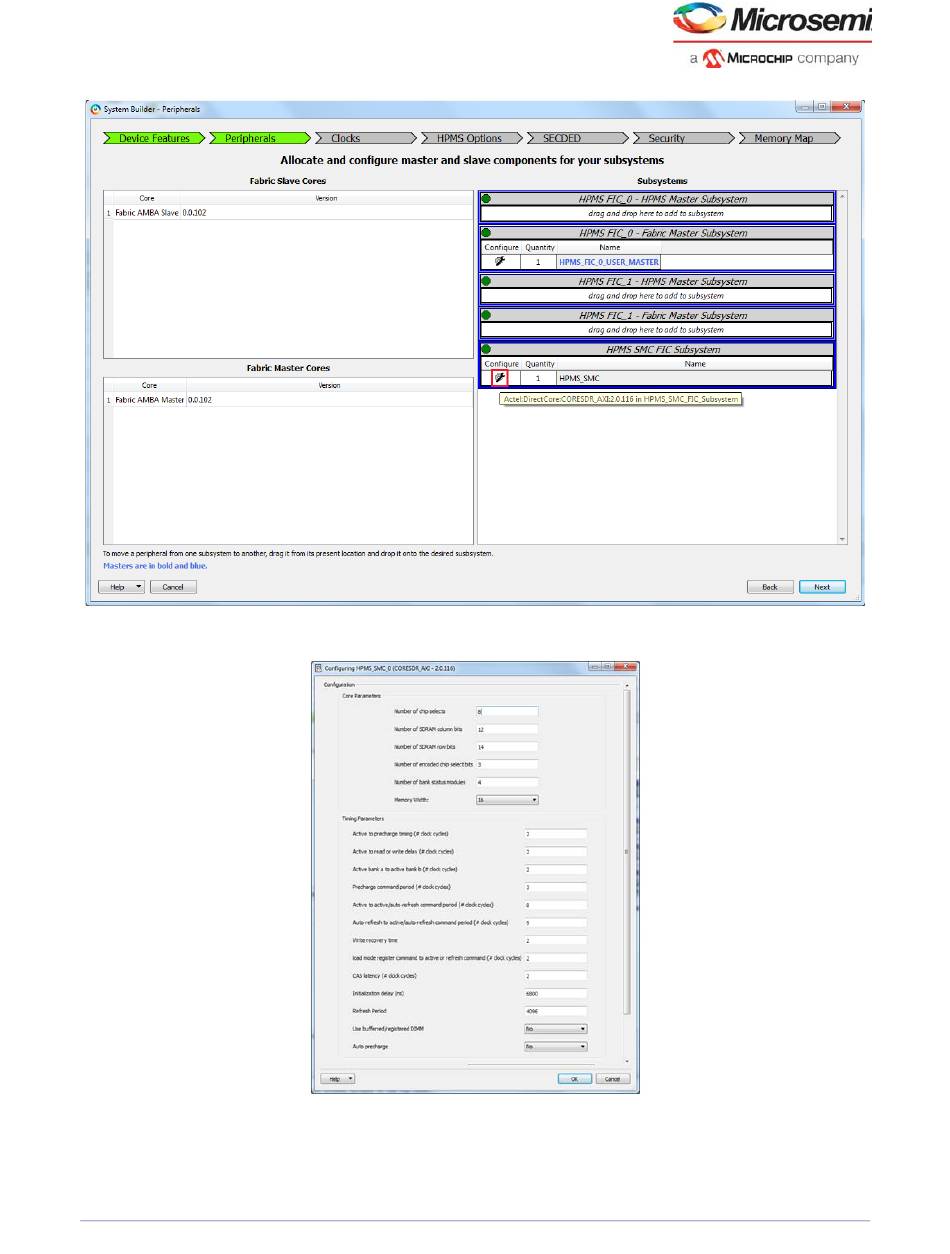

Figure 141 • HPMS SMC_FIC Subsystem Configuration
3. Configure CoreSDR_AXI to match the external memory parameters.
Figure 142 • CoreSDR_AXI Configuration
4. Navigate to the Memory Map tab giving the required data in the rest of the System Builder tabs.
Click Finish.
Microsemi Proprietary UG0446 User Guide Revision 7.0 226
