Touch screen

User's Manual (3D)
NOTE The options shown on the touch screen depend on the
unit configuration. The X-ray unit can be upgraded
with new programs and features, contact your dealer
for further information. The views and values shown in
this manual are only examples.
NOTE The illustrations shown on the touch screen are based
on approximate patient anatomy. The actual volume
position depends on the individual anatomy of the
patient.
NOTE Never allow patients to touch the screen when they are
positioned in the X-ray unit. Touching the screen
during exposure will stop the imaging process.

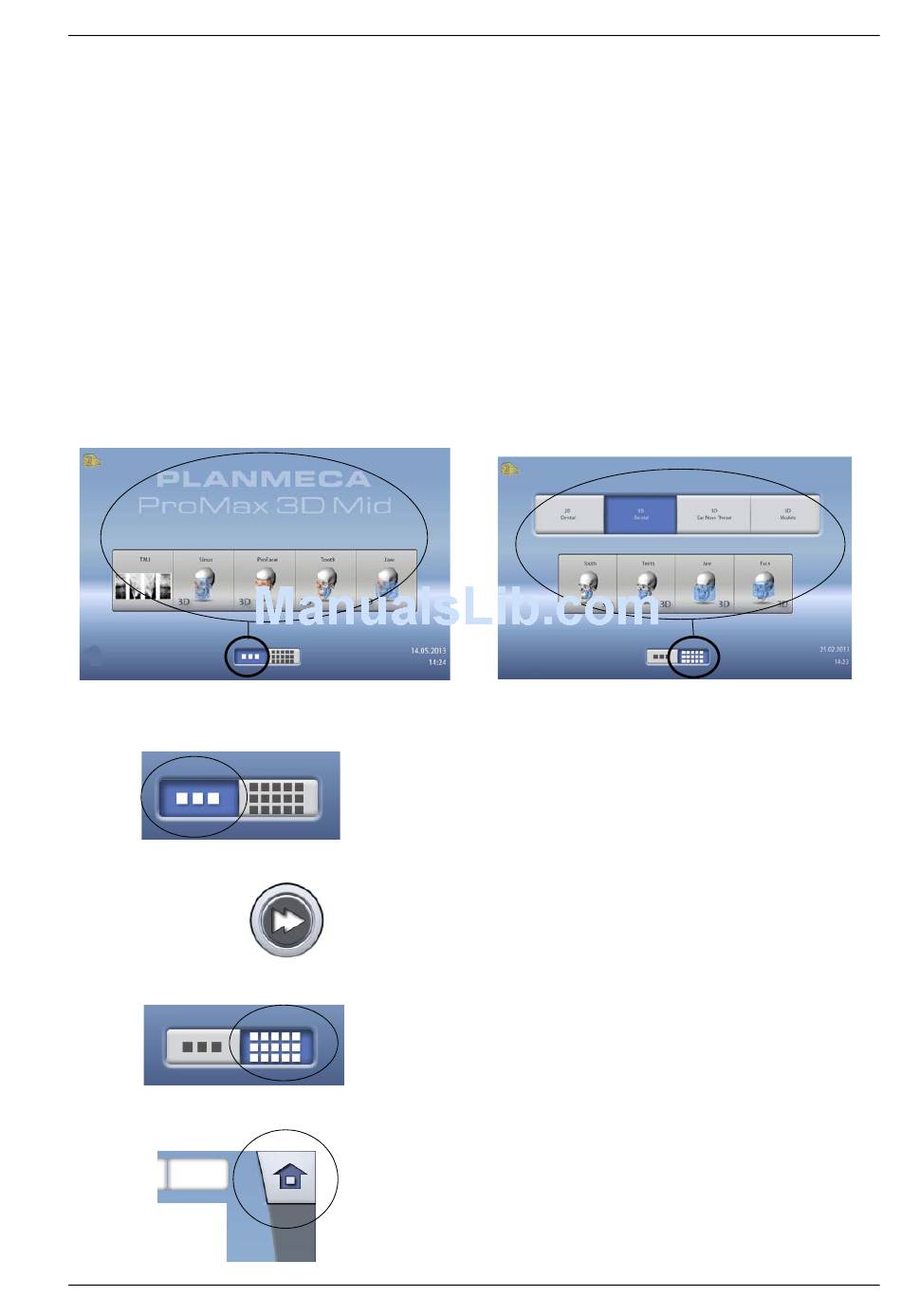

You can use the buttons at the bottom of the main screen
to change the appearance of the main view.
• Left button:
To view the ProMax model and up to five most recently
used programs, select the left button at the bottom of
the main screen. The most recently used program is
shown first. This is the default view of the main screen.
NOTE If you wish to use fast forward buttons on this view,
select Settings > Program > 2200 Program Features >
Fast Forward ON. Using a fast forward button takes
you directly to the last screen where you can take an
exposure.
• Right button:
To view two program bars on top of each other, select
the right button at the bottom of the main screen.
• Home button:
To return to the main view from another screen, select
the home button at the top right corner of the screen.
