PROGRAM Output Parameters

The two data entry methods described apply to the parameters on the PROGRAM &
MEASUREMENTS screen. This includes those shown in the table below.
PARAMETER
Frequency
Voltage AC
Voltage DC
Current limit
Power limit
kVA limit
Note 1: On ADF Series models with Option F, frequency setting range is 15 -1200 Hz
Note 2: On ADF Series models with Option V, max voltage setting can be higher than 300V
Note 3: On ADF Series models with Option D, max voltage setting is 425Vdc
Each screen has up to five soft keys on the right hand side of the display. These may change
as the selected parameter changes. To move between parameter fields in any screen, use
the shuttle knob. To change a parameter, press the shuttle knob and then adjust the value
by turning the shuttle. When done, press the shuttle to exit edit mode.

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual

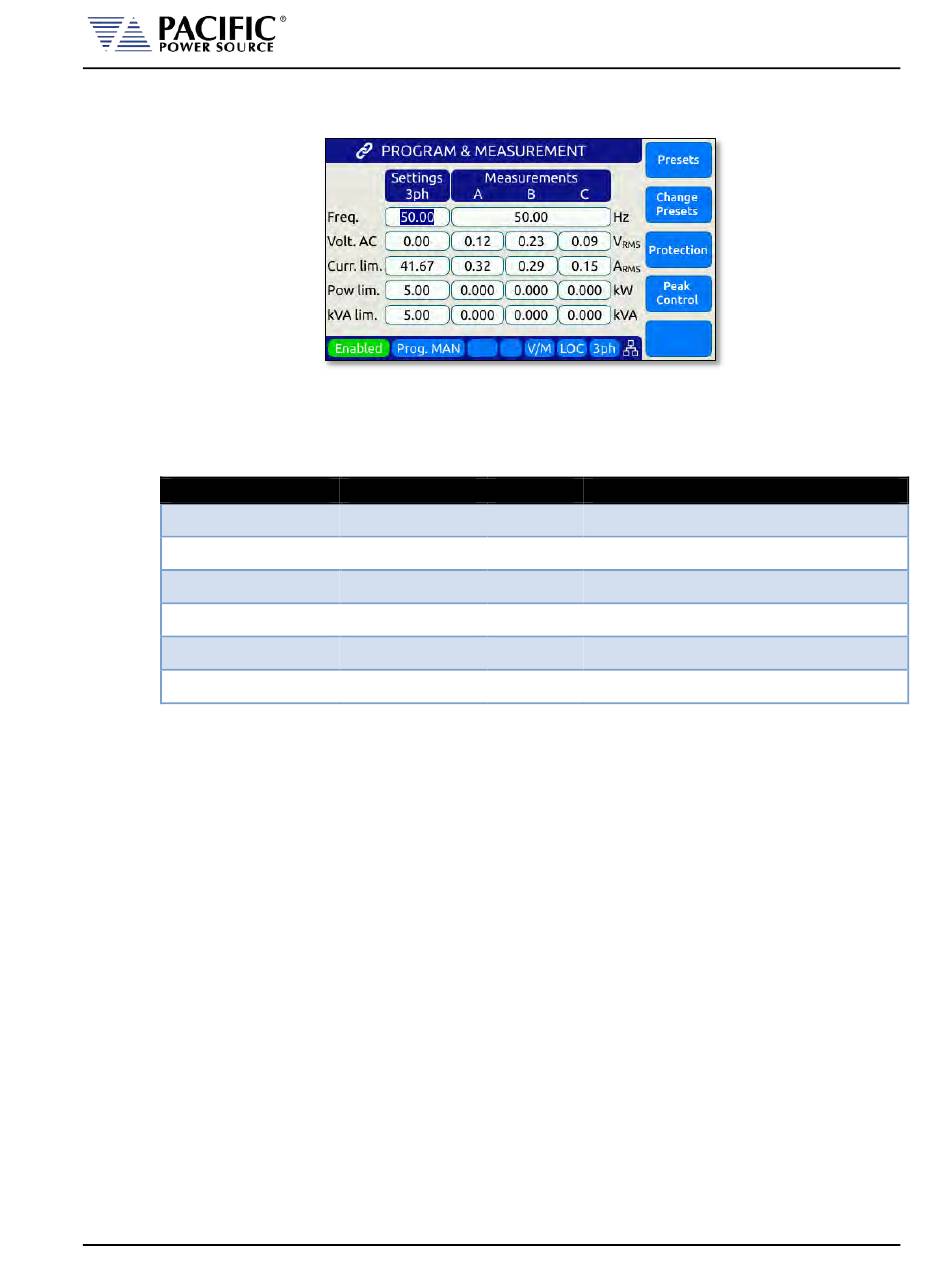

Figure 6-2: PROGRAM Screen
