6.8.10 CALIBRATION MENU Screen

All power sources are shipped with a Certificate of Compliance to NIST traceable standards
("CoC") from the factory. Output and Measurements are calibrated to an external reference
DMM at the same time. A suitable current shunt or current transformer and a load will be
required to perform calibration.
The following soft keys are available from the CALIBRATION MENU:
SOFT KEY
Calibrate (SK1)
Reset (SK2)
-
-
Back (SK5)
For details on calibration requirements and procedures, refer to the Calibration section
towards the end of this manual. (Section 11, "Calibration").

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual

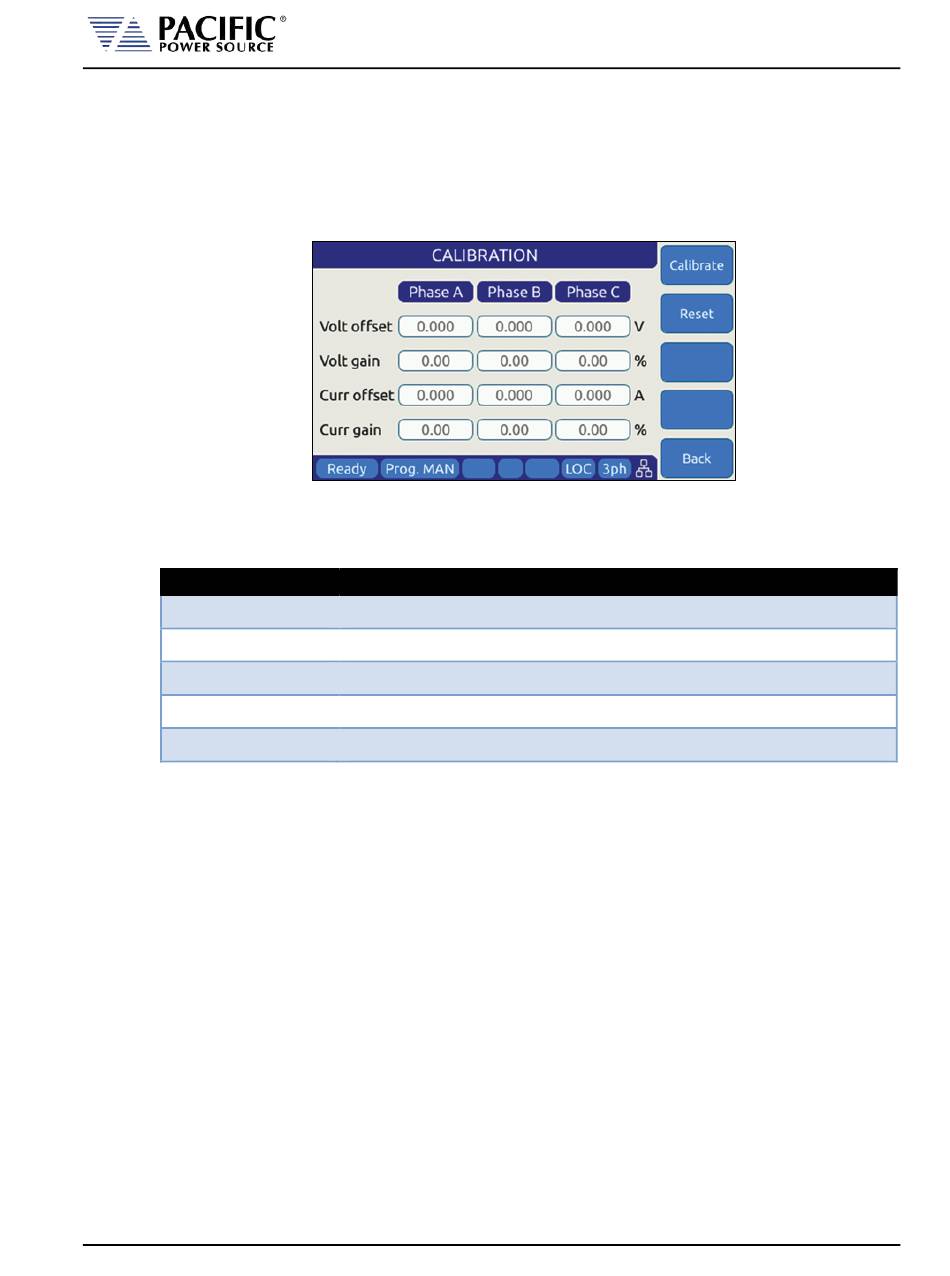

Figure 6-26: CALIBRATION MENU Screen
Description
Enters calibration state
Resets all calibration coefficients' previous values.
Returns to previous screen

Table 6-23: Available CALIBRATION MENU screen soft keys
