6.8.5.8 REMOTE INHIBIT SETUP Screen
The REMOTE INHIBIT SETUP screen allows configuring the remote output control input for
various modes of operation. Once set, this setting is retained in non-volatile memory so the
selection persists between input power cycles.
There are three modes of operation for this input: remote inhibit and remote enable.
1. Disable mode: In his mode, the Remote Inhibit inputs are not active so this function
is turned off. No short between the RI pins is required to enable the output in this
mode.
2. Remote Inhibit mode: The two pins have to be shorted for the output to be enabled
from the front panel or remote command. This is a necessary but not a sufficient
condition to enable the output. If the output is enabled and the remote inhibit
connection is open, a fault is generated. This mode is recommended for interlock
safety applications such safety cages and test fixture interlocks.
3. Remote Enable mode: The output can be enabled by shorting these two pins,
regardless of the output enable command/button. It is a sufficient condition to
enable the output.

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual

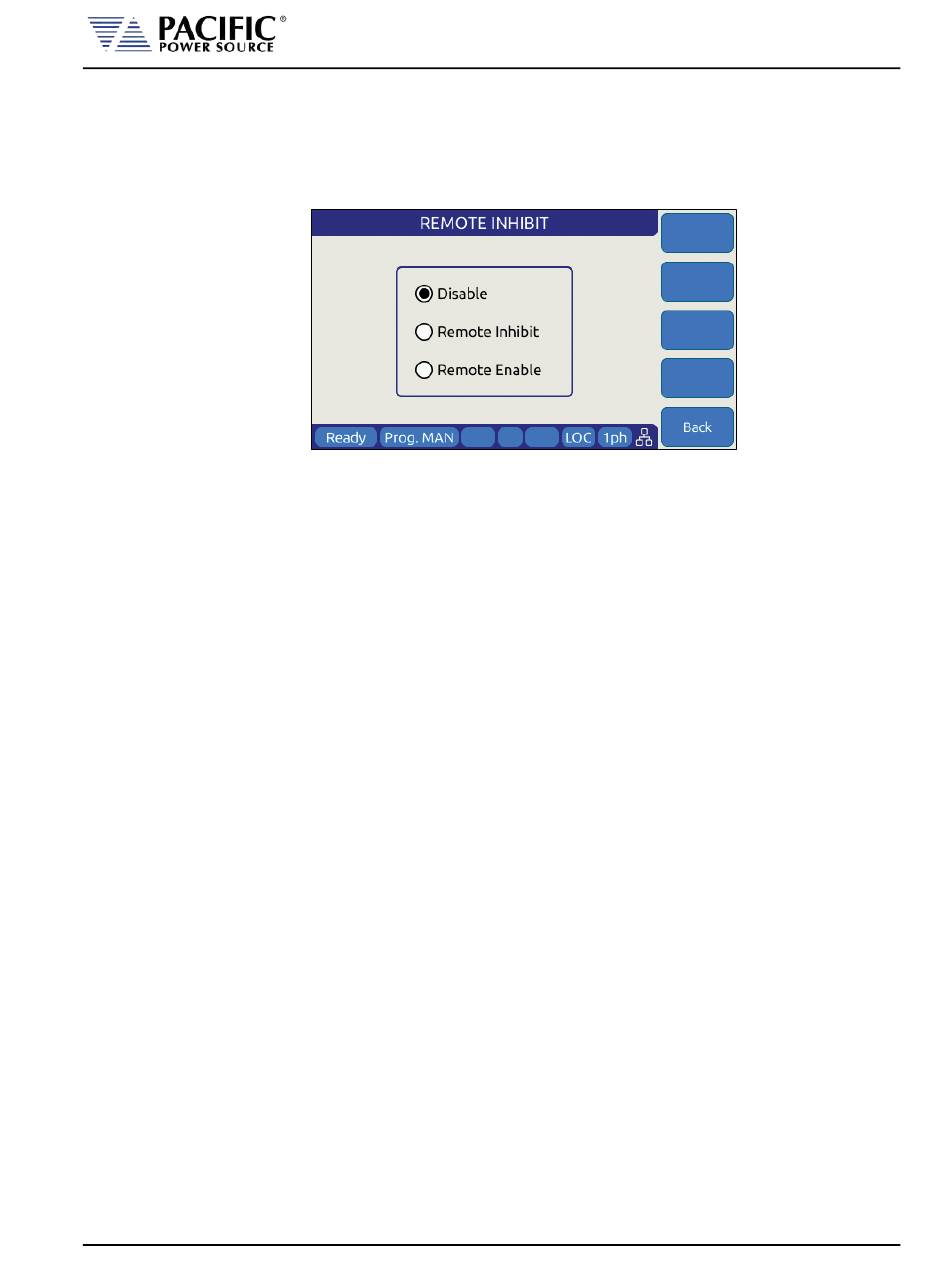

Figure 6-21: REMOTE INHIBIT Setup Screen
