ADF SERIES® OPERATION MANUAL
SECTION 5: UNPACKING AND INSTALLATION
NOTE: THREE NEUTRAL
OUTPUT CONNECTOR PINS
(N N N) ARE INTERNALLY
SHORTED TOGETHER.
L2 (B)
NO NEUTRAL
CONNECTION TO DELTA
LOADS.
Vac
Vab
L1 (A)
Vbc
L3 (C)
USE PROVIDED MATING CONNECTOR
TO CONNECT LOAD WIRES

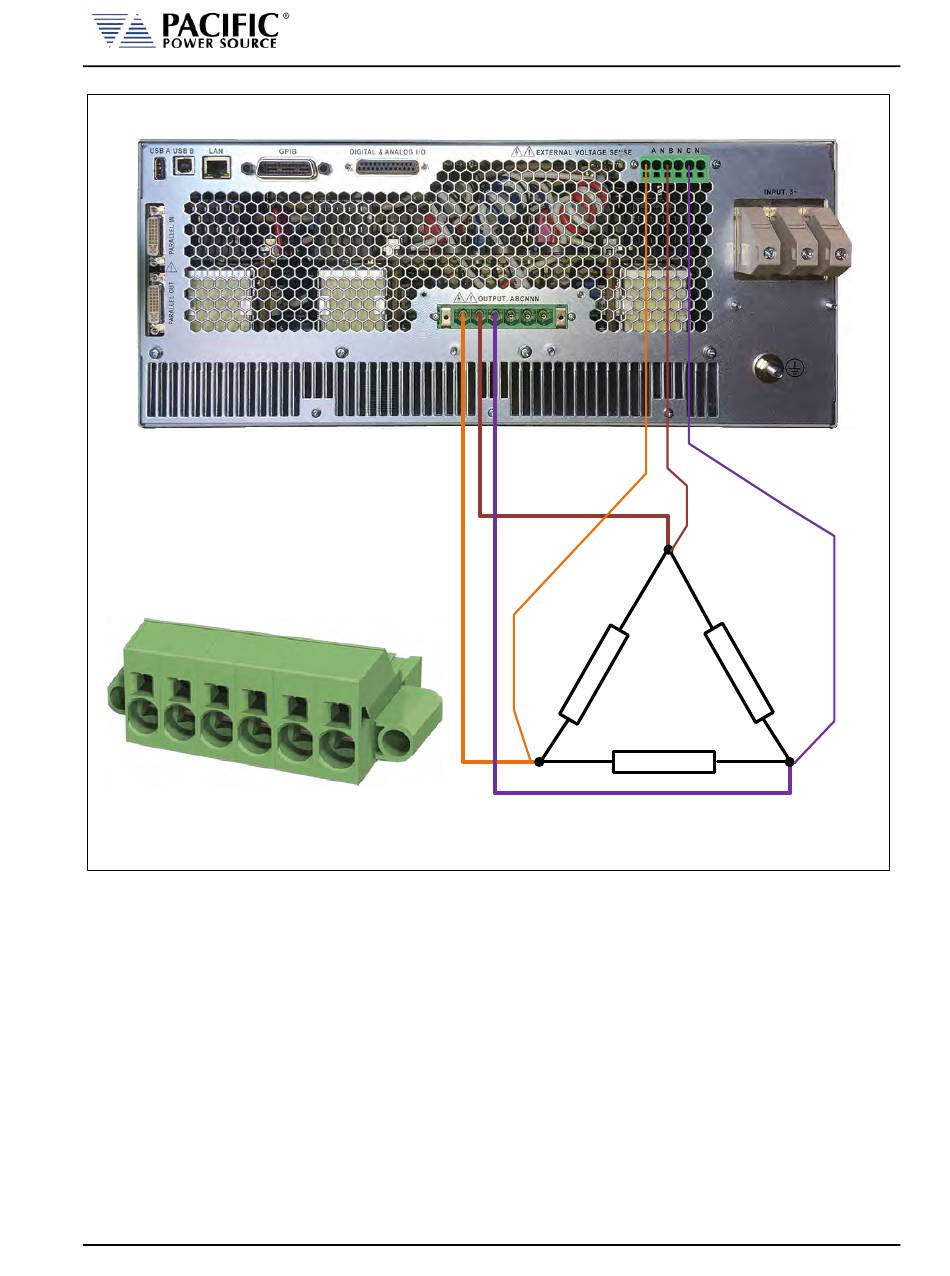

Figure 5-11: Three phase Delta Load Output Connections – External Voltage Sense

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual Page 57 of 349
