Figure 5-10: Three Phase Delta Load Output Connections - Internal Voltage Sense - Pacific Power Source ADF Series Operation Manual

ADF SERIES® OPERATION MANUAL
SECTION 5: UNPACKING AND INSTALLATION
The requisite DELTA load output wiring is shown in Figure 5-10 using internal voltage sense
and Figure 5-11 when using external voltage sense.
NOTE: THREE NEUTRAL
OUTPUT CONNECTOR PINS
(N N N) ARE INTERNALLY
SHORTED TOGETHER.
L2 (B)
NO NEUTRAL
CONNECTION TO DELTA
LOADS.
Vac
Vab
L1 (A)
Vbc
L3 (C)
USE PROVIDED MATING CONNECTOR
TO CONNECT LOAD WIRES

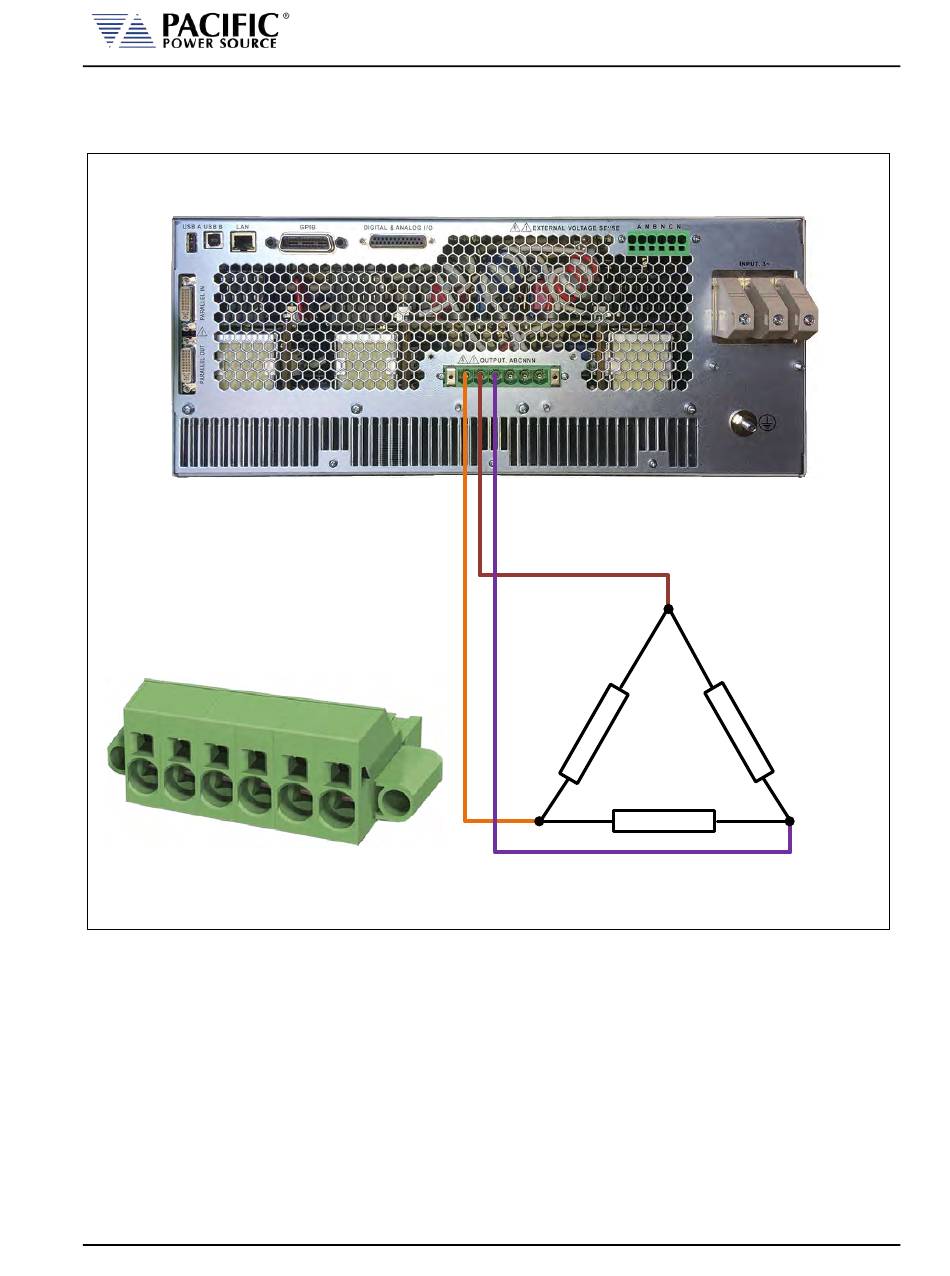

Figure 5-10: Three phase Delta Load Output Connections – Internal Voltage Sense

