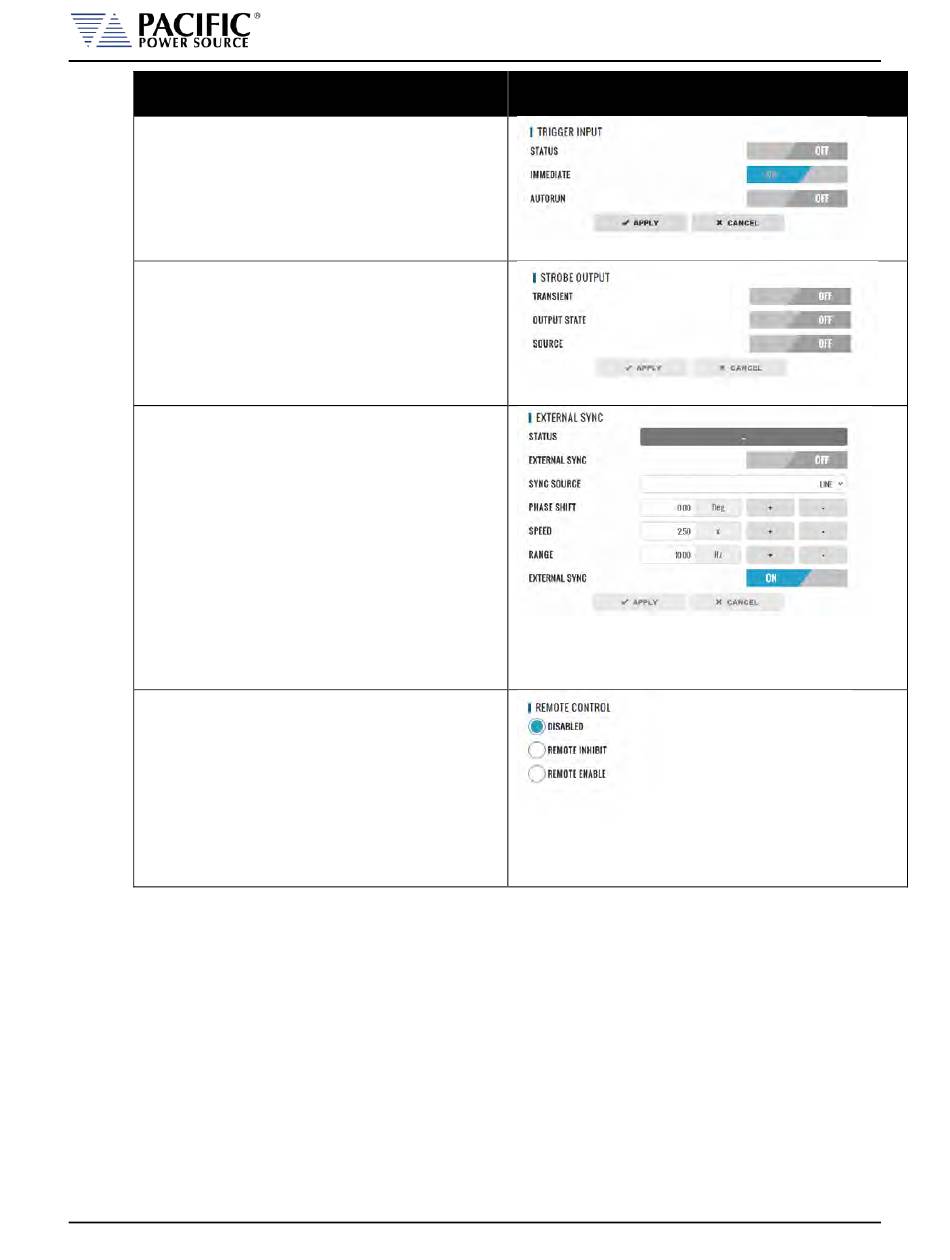

Grouping
Trigger Input:
STATUS
IMMEDIATE
AUTORUN
––Strobe Output:
TRANSIENT
OUTPUT STATE
SOURCE
External Sync:
STATUS
EXTERNAL SYNC
SYNC SOURCE
PHASE SHIFT
SPEED
RANGE
EXTERNAL SYNC
Remote Controls:
DISABLED
REMOTE INHIBIT
REMOTE ENABLE
See section 5.18.3

