10.8.2 Real-Time Plot

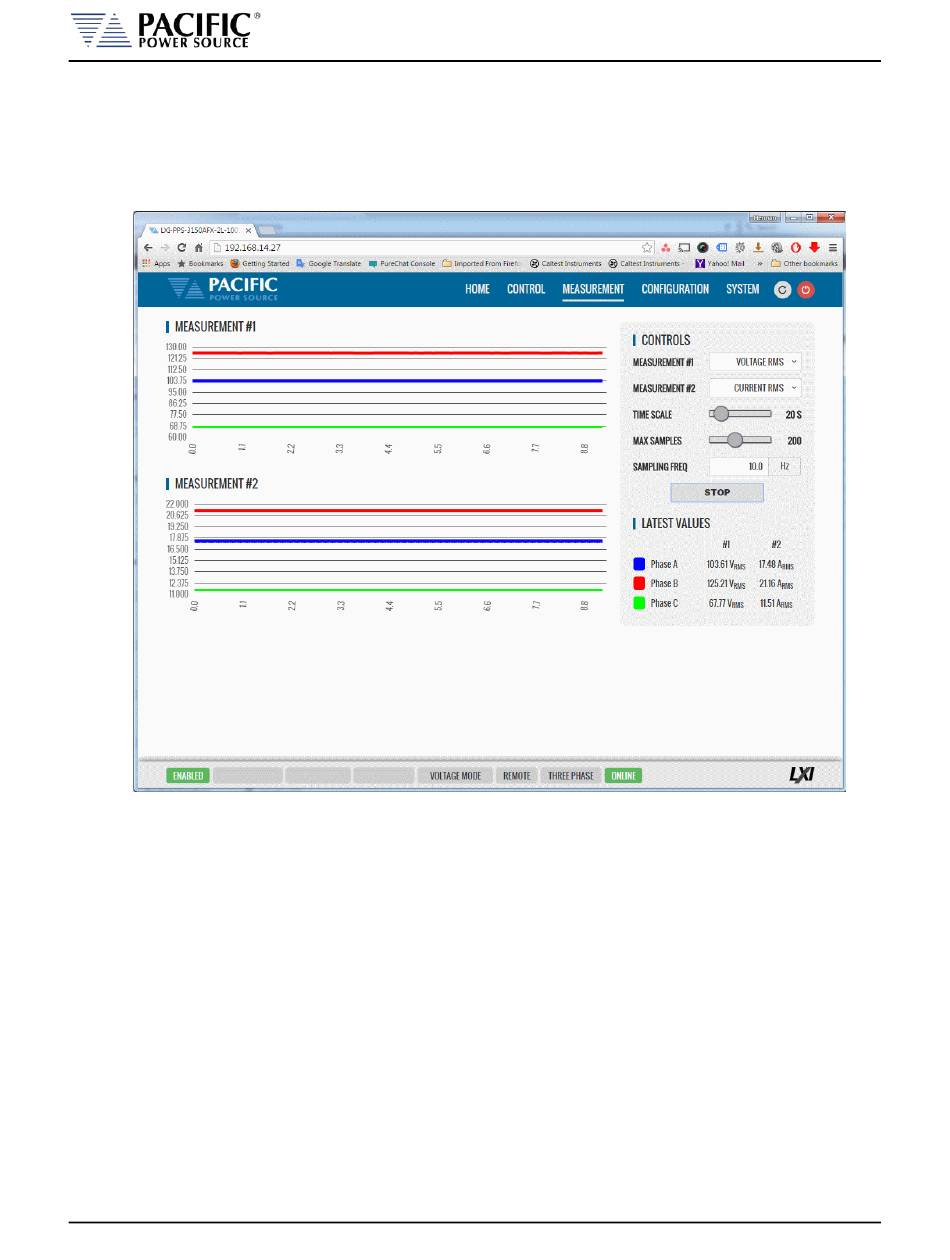

This measurement screens provides a strip-chart style graphical display for up to two
measurement parameters, #1 and #2. The CONTROLS are allows selection of the desired
parameter for each graph. Available choices are Voltage, Current and Power. Depending on
phase mode, up to three phase values are displayed per chart.

