Direct Data Entry - Presets

Values for Frequency, Voltage, Current, Phase and Power can be entered directly using the
numeric keypad. Position the flashing cursor on the field for which you want to enter a new
setting value. Once a field is selected, press the first key of the value you want.
As soon as you enter the first digit, the soft keys will display commonly used values for the
parameter you are changing. For example, if you are on the Frequency fields, presets for 50
Hz, 60 Hz and 400 Hz will appear. On ADF Series models with Option F, an additional 800 Hz
preset soft key will be available.
If you are on the Voltage AC field, voltage presets for single phase (on single phase ADF
models) or LN and LL voltage preset soft keys will will appear. A Low Voltage Range selection
will be offered as well allowing you to lock in the virtual low range, which limits AC voltage
entry to no more than 150 Vac. This is illustrated on the image below.

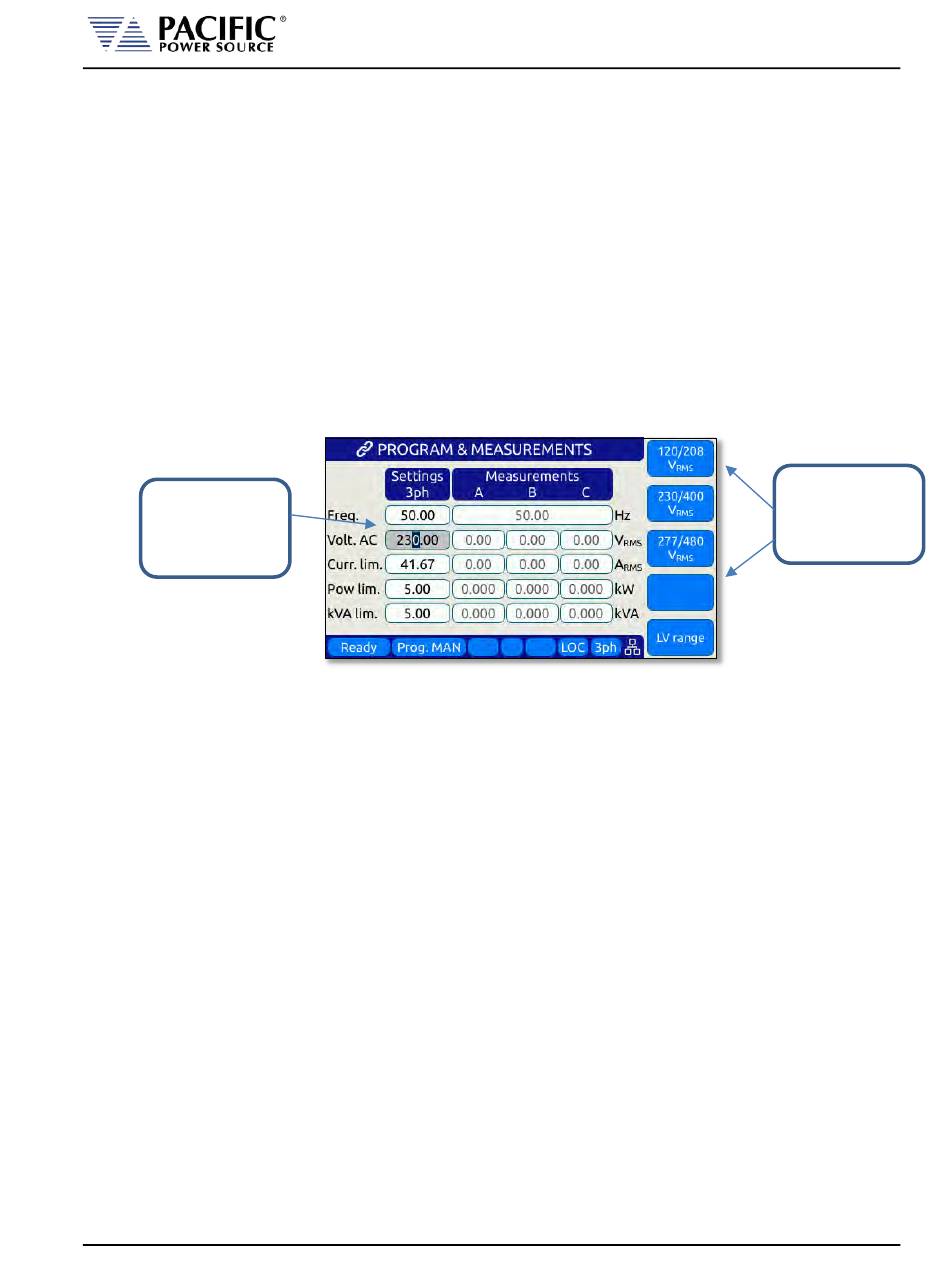

Direct Data
Entry in
progress

