SOFT KEY
Protection
(SK3)
Peak
Current (SK4)

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual
Description

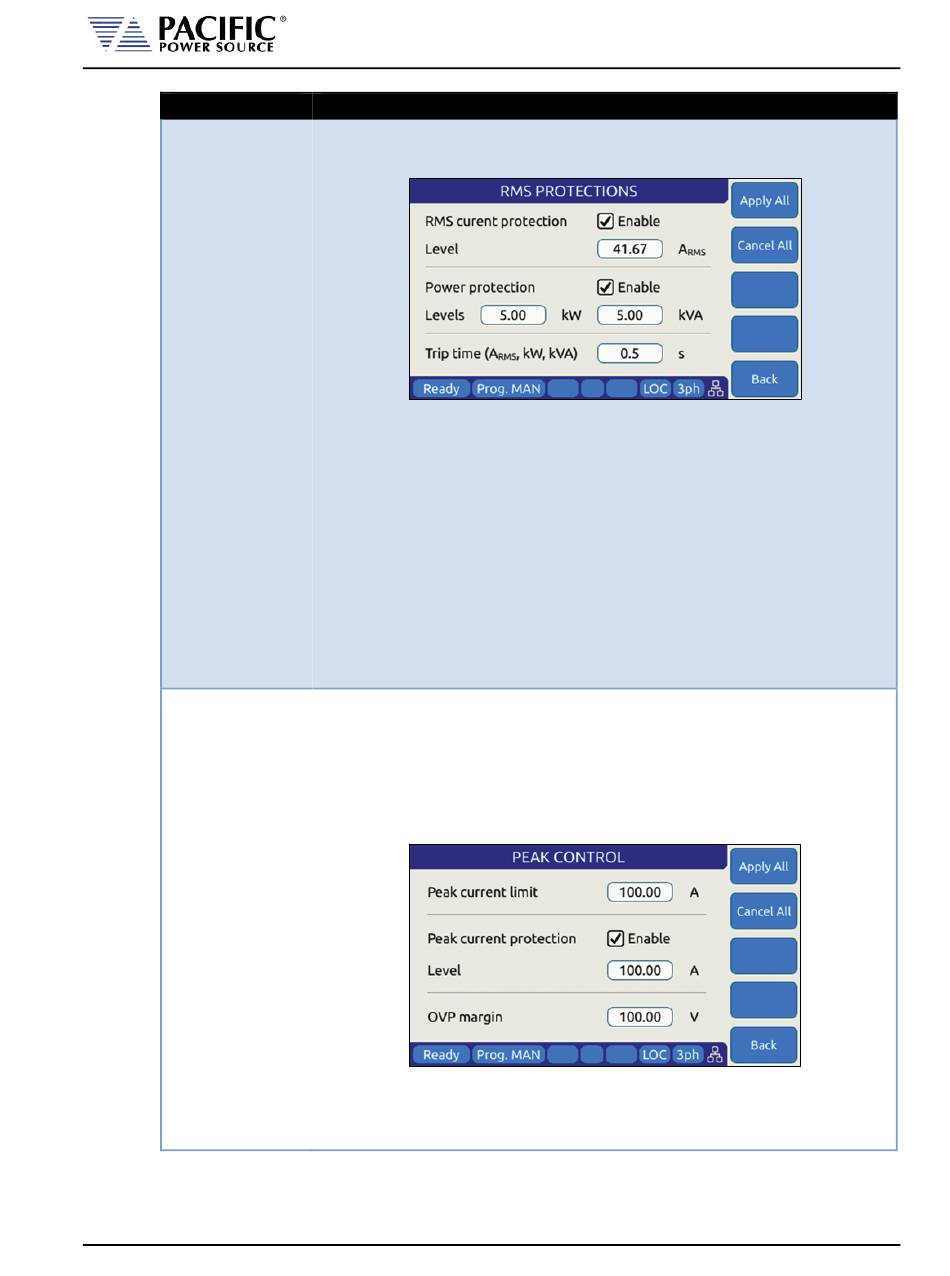

Displays the POWER AND CURRENT PROTECTIONS screen shown
below.
There are two check box options and one data field on this screen
that can be set as needed:
Enable RMS current protection
Enable power protection
Trip time:
Displays the Peak Current protection screen. This protection function
is separate from the RMS current limit function. By setting the peak
current protection mode, the maximum peak current is limited by the
power source to the programmed level. This is done on a cycle by
cycle basis. Note that a minimum setting applies as described in
section 6.4.8, next page.
The level can be set using the shuttle or key pad. To enable or disable
this function, scroll to the "Enable peak current protection" check box
and press the shuttle to toggle on or off.

Table 6-4: PROGRAM screen soft keys

ADF SERIES™ OPERATION MANUAL
Front Panel Operation
SECTION 6:
Activates the programmable
current limit function at the value
set in the main program screen
Activates power protection at W
and kVA set points.
Determines how long the power
source will allow the power level
setting to be exceeded before
tripping off.
