6.5 MEAS – MEASUREMENTS Screens
The MEAS menu key displays the first of two measurement screens. Measurement screens
are used to display measurement values taken at the output of the AC power source.
The measurements screen layouts differ between single phase and multiphase mode. If the
power source is configured for single-phase mode operation, only the single phase
measurement screens are available. When in three phase mode, the user can change
screens between all three phases or one phase at a time using the PHASE key located below
the Output ON/OFF key or by pressing the "Individual Phase" soft key (SK5).
6.5.1

Measurements Screen by Phase

The different measurement screen layouts are shown below.
Note: The individual phase display screens contain all measurement parameters on one
screen so there is one screen for each phase.

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual

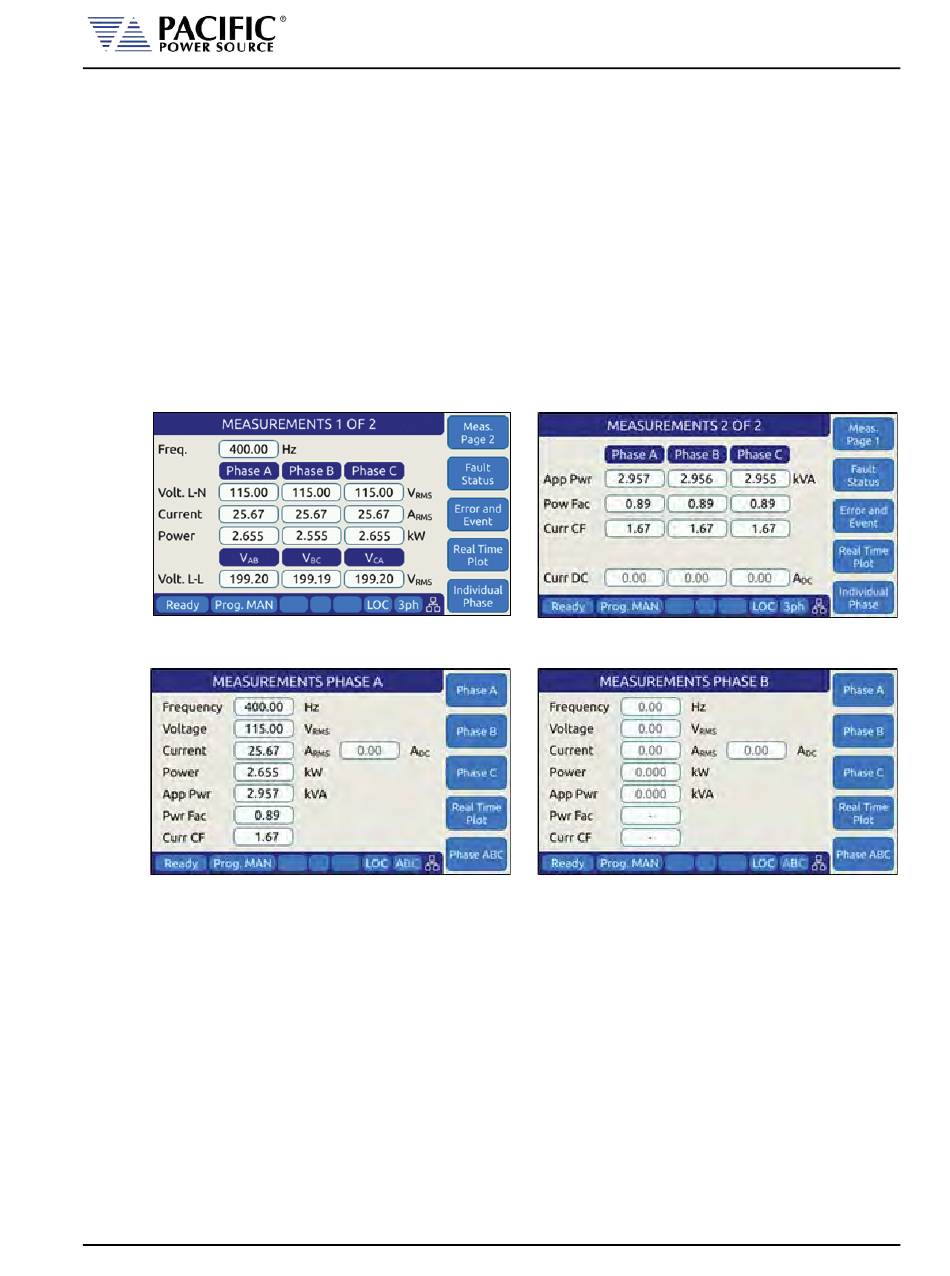

Figure 6-6: Three Phase Measurement Screens

Figure 6-7: Single Phase Measurement Screens for Phase A and B
