7.3.13 Front Panel Operation of AUX I/O Functions

The auxiliary I/O functions can be configured and programmed from the front panel using
the SYSTEM menu (Press SYST key to left of the LCD screen). This section describes the
available AUX I/O program screens and parameters for each function.
7.3.13.1 Accessing AUX I/O Screens.

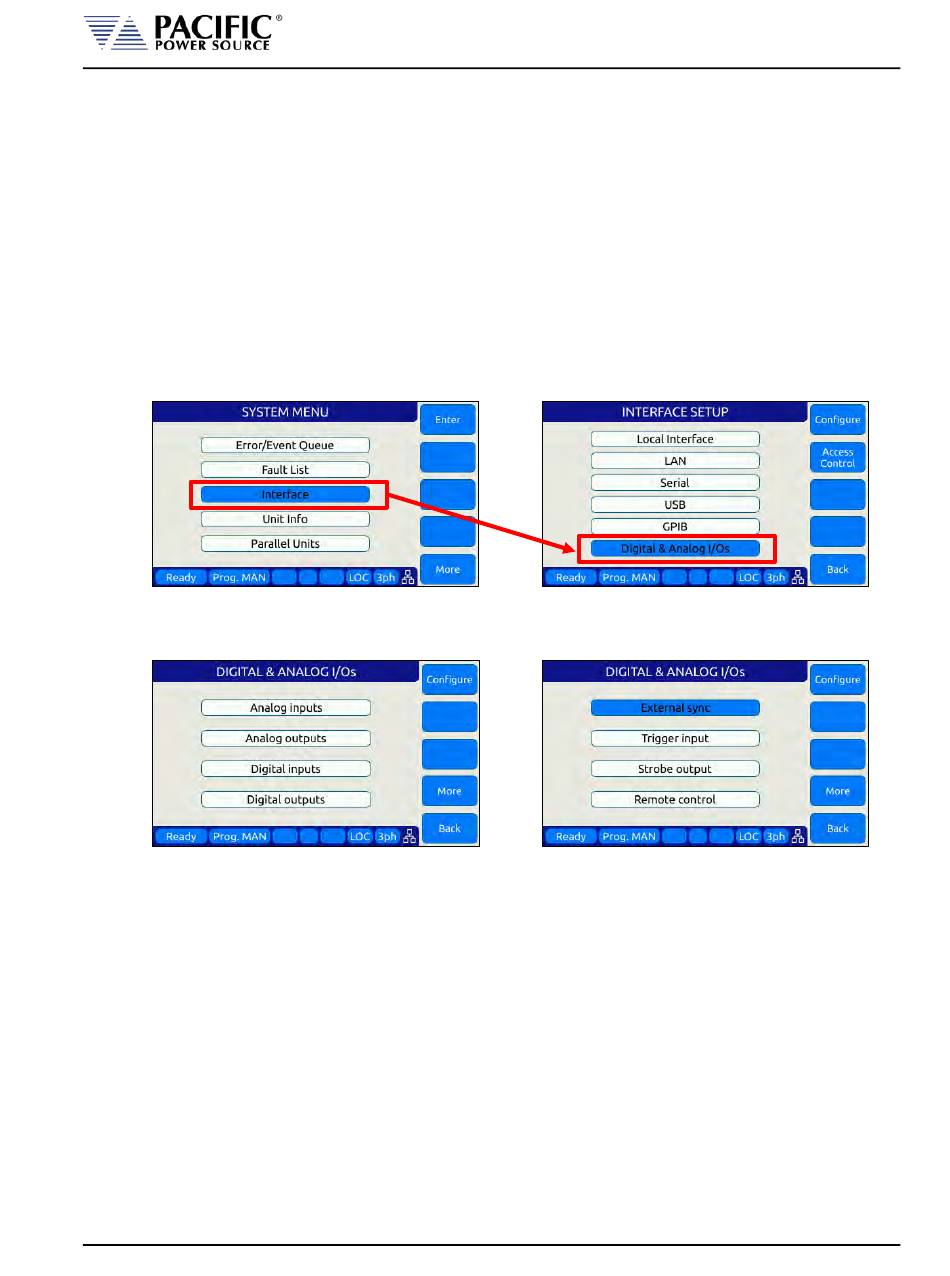

From the SYSTEM MENU, scroll to the INTERFACE entry and press the shuttle or ENTER key
as indicated below. If the Interface selection is not visible, press the "More" soft key to
display the second System Menu screen.
Next, scroll to the "Digital & Analog I/Os" entry at the bottom of the INTERFACE SETUP
screen.
This will display a list of available Auxiliary I/O functions and features. To display the second
of two DIGITAL & ANALOG I/Os screens, use the "More" soft key.
To select the desired function, use the knob to scroll up or down. Once selected, press the
Shuttle know or ENTER key to open the relevant I/O control screen.
Each screen is covered in the following sections in more detail.

