11.4 Calibration Procedures

Calibration of output and measurements is performed by a single procedure so there is no need
to calibrate each separately. Calibration involves voltage and current full scale and offset on
each phase. For three-phase mode, this means there are twelve calibration points, for single-
phase mode, there are four.
The calibration can be performed manually using the Calibration menu (refer to Section 6.8.9 for
the location of the Calibration menu) or through the build-in web server using the web browser
interface. Refer to Section 10.10.10, "Calibration" for access to the Web based calibration
screens.

11.4.1 Voltage Calibration - Offset

The procedure to calibrate voltage offset is:
1. Select the Calibration entry from the "System" menu
2. Press the "Calibrate" soft key to enter calibration mode

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual
DMM (optional)

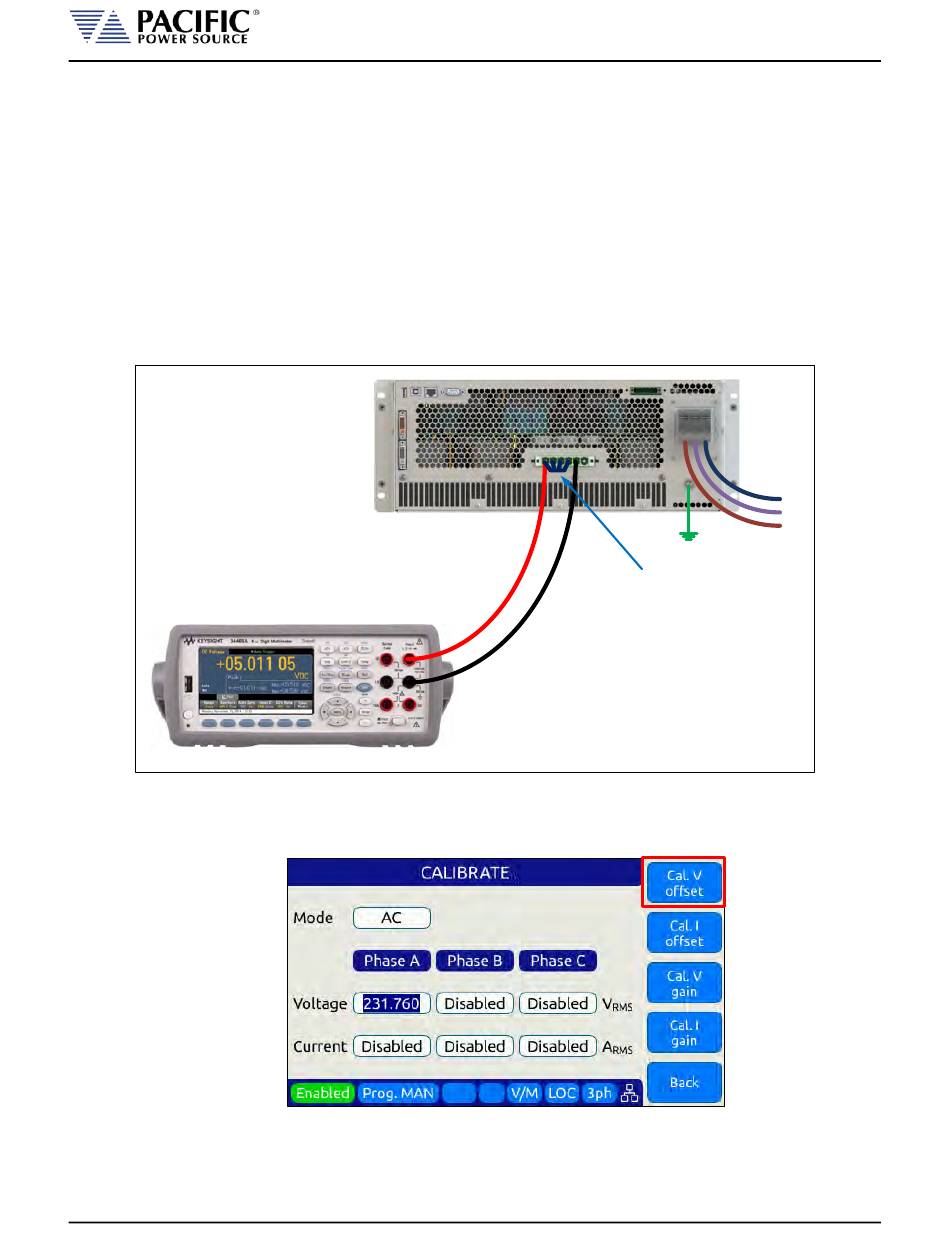

Table 11-2: Setup for Voltage Offset Calibration
