6.5.3

Individual Phase Measurement Screen Soft Keys

The following five soft keys are available on the individual phase measurement screens.
SOFT KEY
Phase A (SK1)
Phase B (SK2)
Phase C (SK3)
Real Time Plot
(SK4)
Phase ABC (SK5)

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual
Description
Displays individual phase measurement screen for phase A if not
already displayed.
Displays individual phase measurement screen for phase B if not
already displayed.
Displays individual phase measurement screen for phase C if not
already displayed.

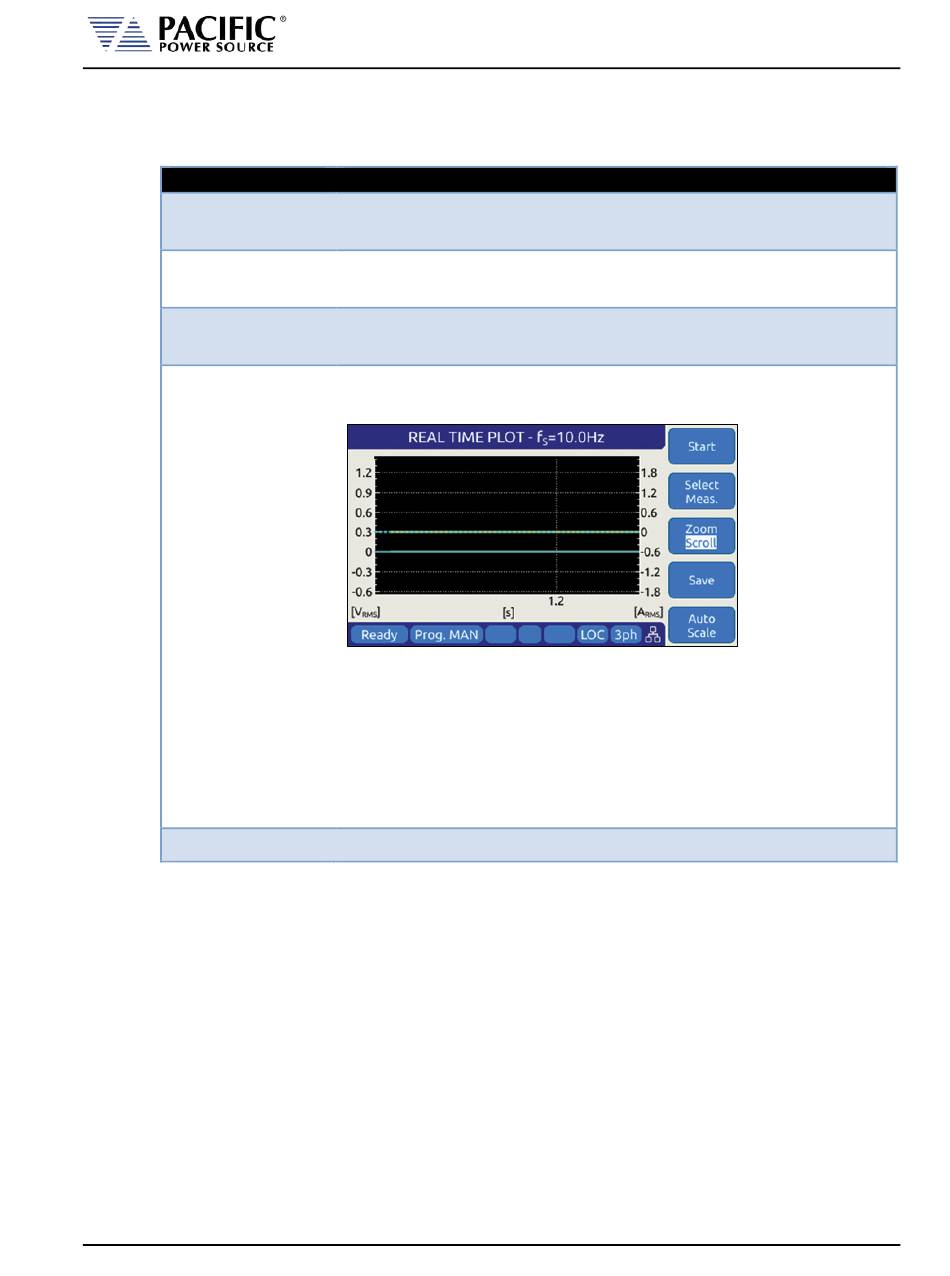

Display strip chart of voltage, current or both against time. This
provides a trend plot of any available measured parameter.
The following soft keys are available to control the time plot:
Start
Select Meas.
Zoom Y
Save
Clean and Refresh Auto-scaled Y axis
Displays the three-phase measurement screen.

Table 6-7: Individual Phase Measurement Screen Soft Keys

ADF SERIES™ OPERATION MANUAL
SECTION 6:
Starts time plot.
Select parameters to display
Zoom both X and Z axis
Save plot data to memory device
Front Panel Operation
