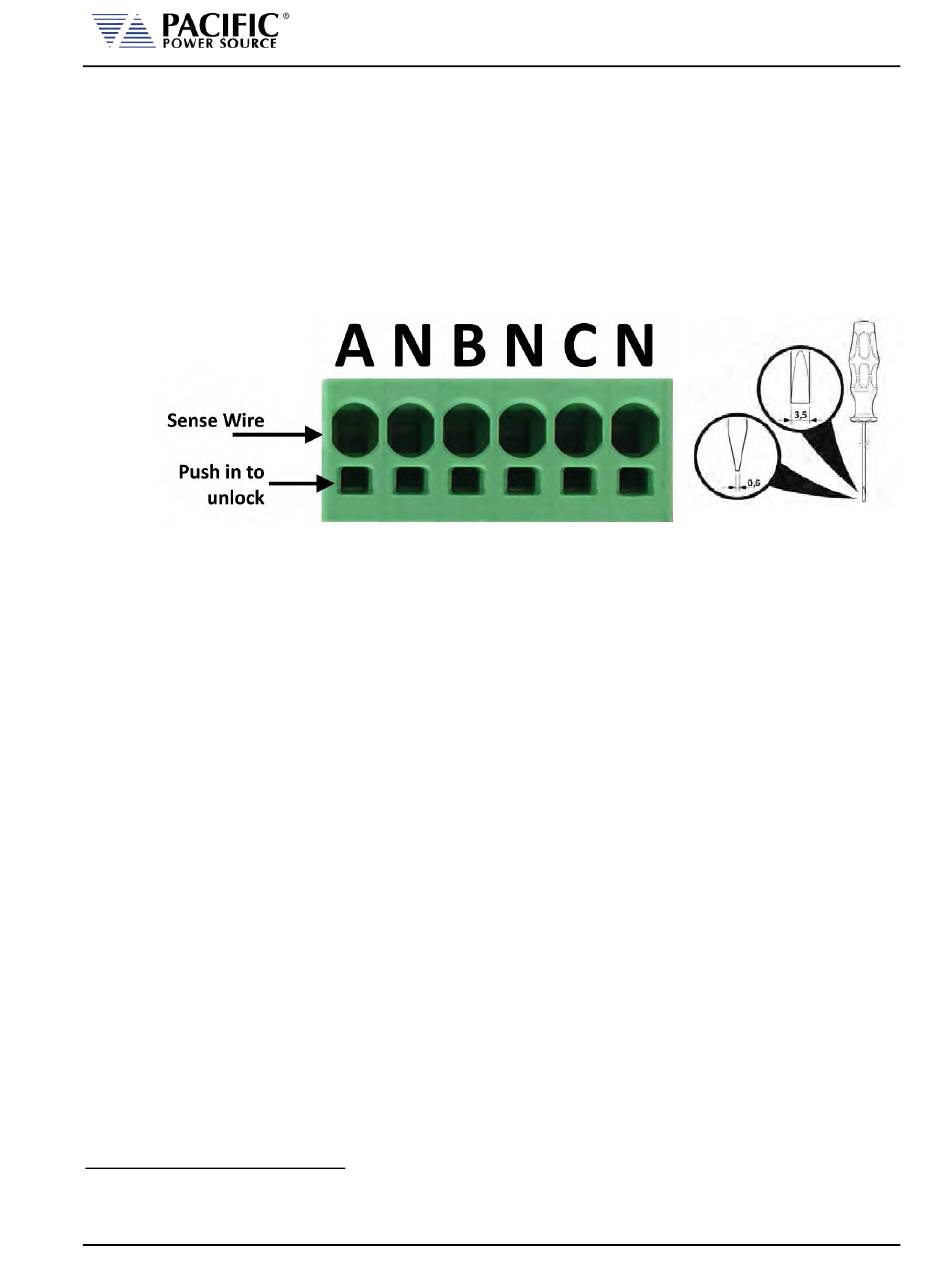

Figure 5-14: Adf A Version External Voltage Sense Connector - Pacific Power Source ADF Series Operation Manual

When using external voltage sense, sense wires must be connected between the rear panel
External voltage sense terminal and the load. These wires do not carry any load current so
can be sized accordingly.
Note: ADF-2 and ADF-4 Model units use a Push-in spring connection type external voltage
sense terminal that requires no mating connector. Use a small screwdriver
in the locking mechanism, push in the stripped sense were ends and pull out the
screwdriver to lock the wire in place. See for reference.
Note: For three-phase sense connection wiring (model 3150ADF), refer to Figure 5-9 for 3
phase WYE load connections and Figure 5-11 for three phase DELTA load
connections.
Note: For single-phase sense connection wiring (model 1150ADF), only A and Neutral
sense positions have to be connected.
Actuation tool, bladed screwdriver, size: 0.6 x 3.5 x 100 mm
3

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual
SECTION 5: UNPACKING AND INSTALLATION
External Voltage Sense Connector
ADF SERIES® OPERATION MANUAL
3
Figure 5-14: ADF A Version
Page 61 of 349
to push
