ADF SERIES® OPERATION MANUAL
SECTION 2: FRONT MATTER
< 5 Vdc Line to Gnd
CHECK ALL THREE INPUT
LINES POSITIONS

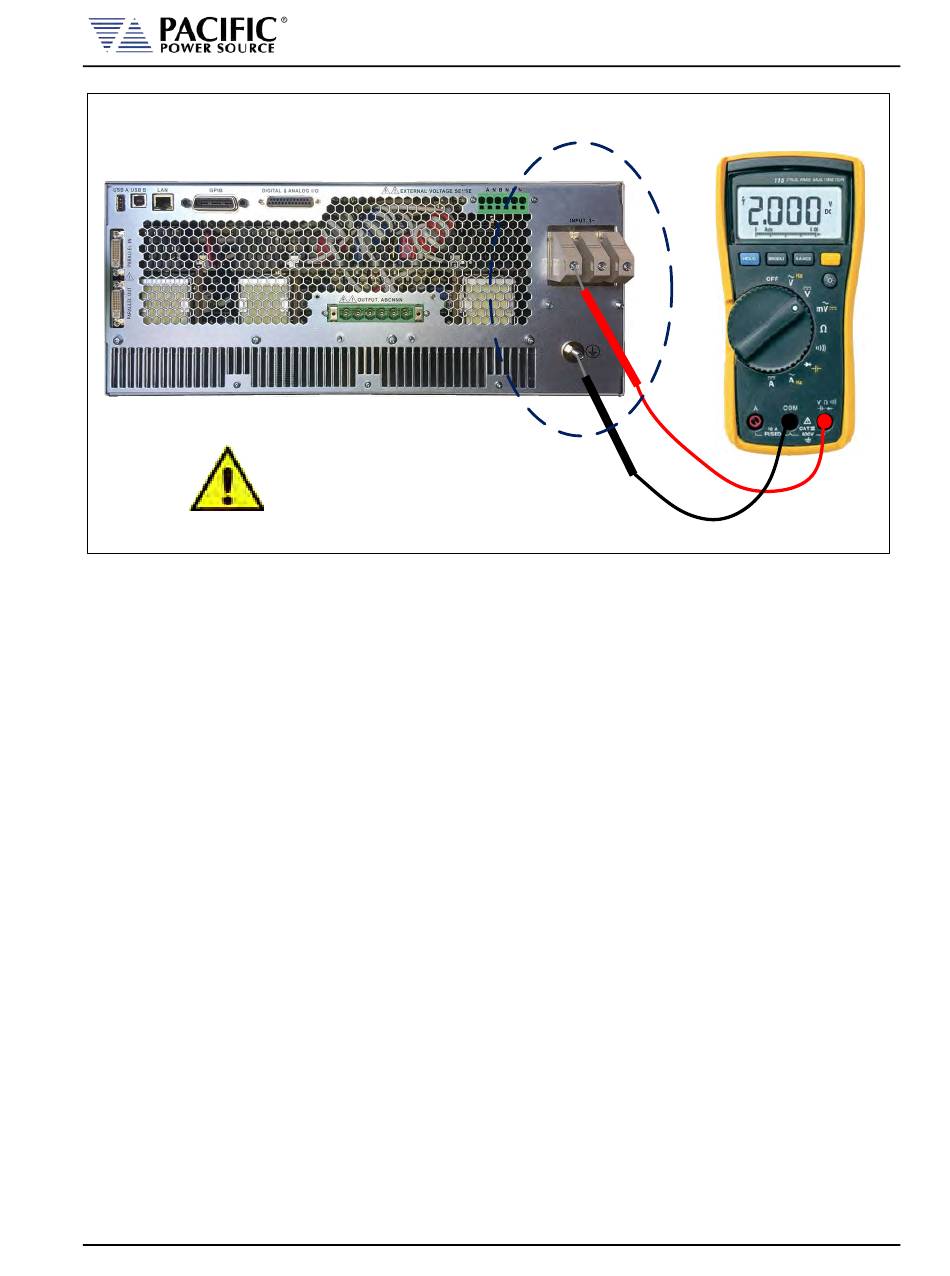

Figure 2-1: EMI AC Input Filter Residual Voltage Check after disconnecting AC Mains power


Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual Page 18 of 349
