6.8.7

PARALLEL UNITS Screen

The PARALLEL UNITS screen controls the behavior of this power source in a multi-unit
parallel system where two or more power sources are paralleled to provide higher power
level systems.
This screen is accessed from the SYSTEM SETTINGS screen using the "Parallel Units" soft key
(SK5).
The first field shows the number of units found at power up on the system bus. A value of 1
means this is a stand-alone unit (not part of a larger system).
The following settings can be configured on this screen:
Predefine expected units
Stand-alone unit
Expected parallel units
The following soft keys are available from the PARALLEL UNITS screen:
SOFT KEY
Discover units
(SK1)
Back (SK5)

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual

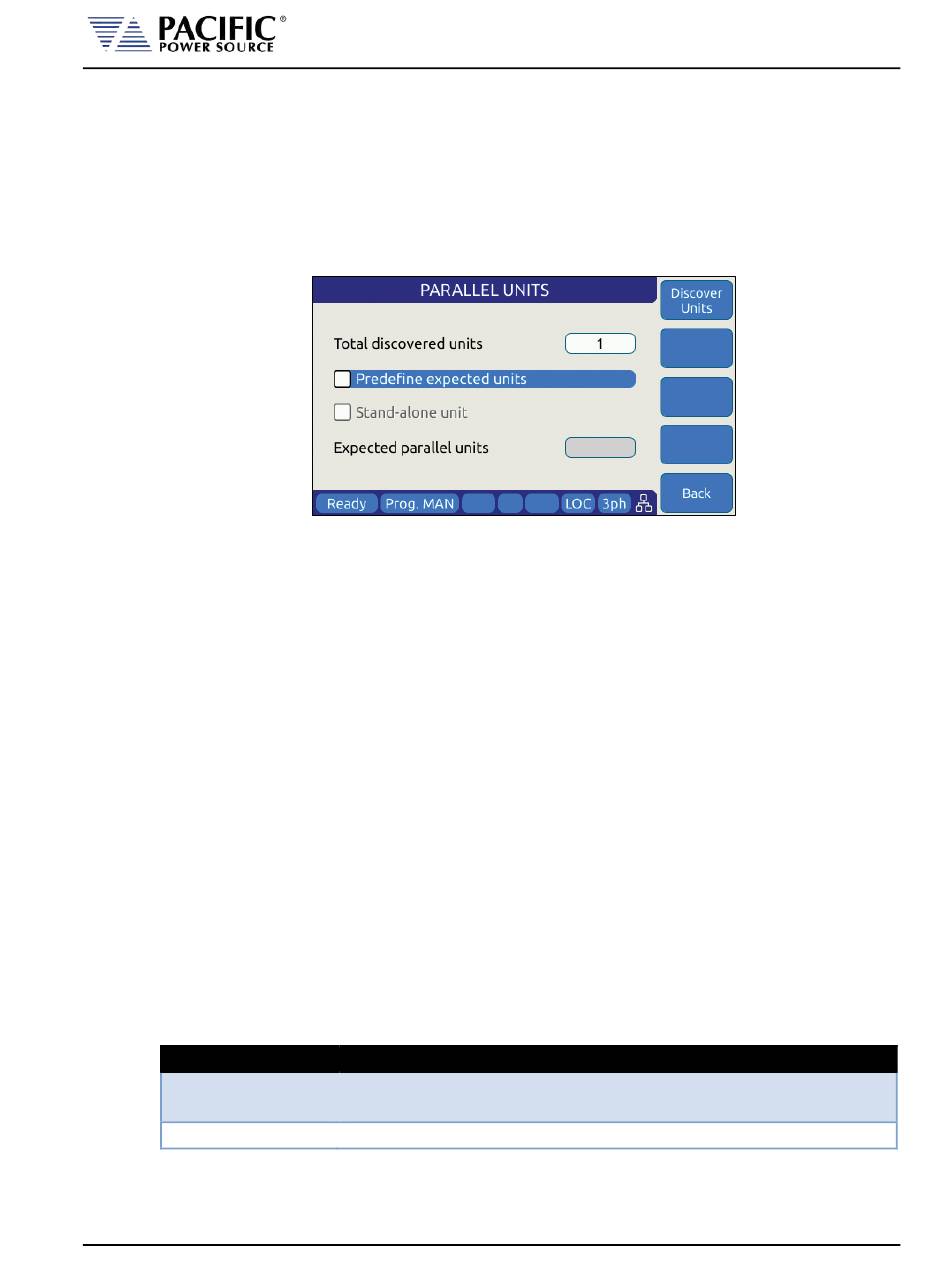

Figure 6-23: PARALLEL UNITS Screen
Tells the power source how many total units to expect to
find on the system interface bus at power up. If the number
found is less than the number expected as set by the user,
one or more units may not be powered up or missing.
Leaving this check box off means the system will operate
with the number of units found, regardless.
Set this check box if you want the power supply to operate
as a stand-alone unit, even if it is connected to the system
interface bus. To do so, you must make sure the outputs of
this power source are not connected to any other units'
outputs.
Use this field to enter then number of expected units only if
the "Predefine expected units" option is checked.
Description
Re-scan the system interface bus to determine how many units
are on the bus. This also happens at power on.
Returns to the previous screen.

Table 6-21: Available PARALLEL UNITS screen soft keys
